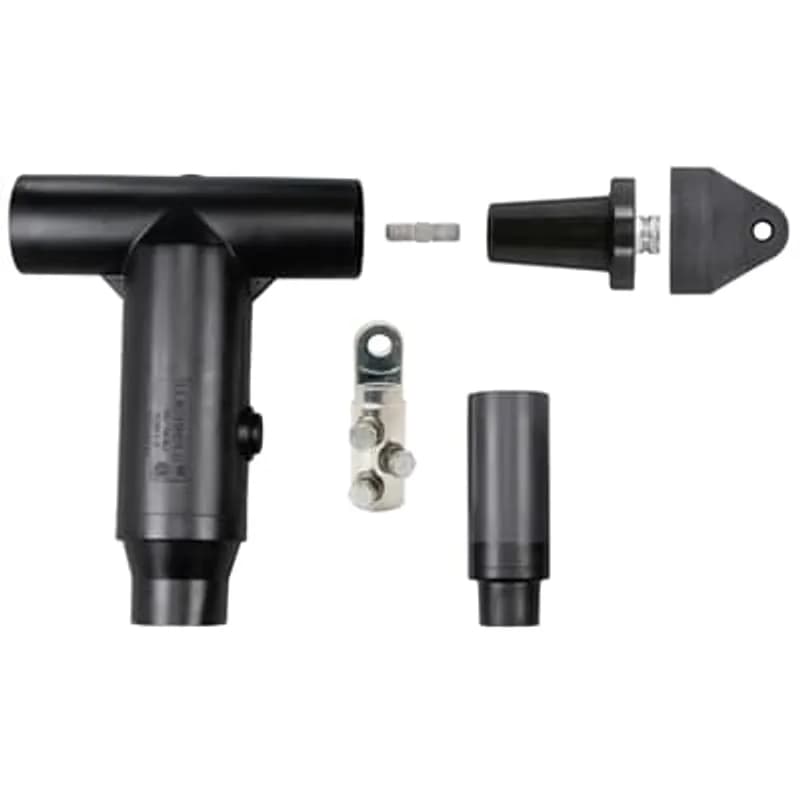

ABB Installation Products K655LR-NAC03 15/25kV, 600 Amp, Elbow Connector without Test Point - with Shear Bolt Connector.…
UPC: 075114426886
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 600A continuous current rating
- Tin-plated aluminum shear bolt lug for 500-750 kcmil conductors (stranded/compressed/solid/compact)
- Cable insulation diameter range: 1.550 to 1.780 inches
- Deadbreak design for safe connection/disconnection under de-energized conditions
- Includes elbow housing, insulated plug with cap, stud, cable adapter, and lubricant
Specifications
Amperage Rating | 600 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | 500 to 750 kcmil |
Connection | Shear Bolt |
Connection Type | Shear Bolt |
Connection Type | Shear Bolt Connector |
Current Rating | 600 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Housing - EPDM-Rubber |
Material | Tin-Plated Aluminum, Poly |
Material | Tin-plated Aluminum |
Series | K655LR |
Size | Cable Insulation Diameter N - 1.550 to 1.780 inch |
Size | 500 to 750 kcmil |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 15 to 25 kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
655ETP-LAC03-DRG
15kV 600 Series Deadbreak Elbow TAP PLUG Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 500 kcmil Stranded/Compressed/Compact to 750 kcmil Stranded/Compressed/Compact.
K656CETP-L0330
25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak Tap Plug with Test Point. Cable Insulation Diameter 1.180-1.465 inches (30.0-37.2 mm). Aluminum Conductor Material, Conductor Code 330 - 500 Stranded/Compressed or 600 Solid/Compact. No Sealing Kit.
274FLR3-C5250
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Capactive Test Ports, Large Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Copper Lug for Conductor size 2/0 AWG Stranded Compressed, 3/0 AWG Solid Compact
756LR-NAC04
35kV, 600 Amp, Elbow Connector with Test Point - with Shear Bolt Connector. Includes Elbow Housing, Insulated Plug with Cap, Stud, Shearbolt Lug, Cable Adapter and Lubricant. Cable Insulation Diameter N - 1.515 to 1.780 inch. Tin-Plated Aluminum ShearBolt Lug, Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.
756ETP-J0240-DRG-S
600 Amp, 35kV, Deadbreak, Window Op With Test Point, Elbow Tap Plug, Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG, Compressed Stranded 1/0 Compacted Solid 2/0. With Insulated Cap and Cold-Shrinkable Jacket Seal.
K656ETP-P0410-DRG
600 Amp, 25kV, Deadbreak Elbow, Test and Ground Replacement Kit with Test Point. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000 kcmil. With Insulated Cap.
K655DLR-M0380-S
15/25kV, Deadbreak, 600 Series Direct Test Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 700/750 kcmil or Solid/Compacted 900 kcmil. Cold Shrinkable Jacket Seal.
162A4-B5220
15kV, 200 Amp, Loadbreak Elbow with Bushing Insert Kit with Test Point, Cable Insulation Diameter B - 0.635 to 0.905 inch (16.13-22.99mm). Bi-Metal Compression Lug, Conductor Size 220 - #2 Stranded/Compressed or #1 Solid/Compact.Frequently Asked Questions
What is the conductor size range for these connectors?
The connectors accommodate wire sizes from #2 AWG up to 1500 kcmil. Note that 1500 kcmil is only compatible with 35 kV applications.
What conductors are compatible with the system?
The Elastimold advanced shear bolt connection system is compatible with both aluminum and copper conductors.
What current ratings are supported by the connectors?
The shear bolt connection system is applicable for 600 amp and 900 amp current ratings.
What tools are required for installation?
Only a standard wrench is needed for installation; no dies or pneumatic tools are required.
Are the shear bolts pre-lubricated?
Yes, the shear bolts are pre-lubricated for ease of installation.
Do the connectors meet any industry standards?
Yes, the connection system meets the latest revision of IEEE386.
What safety precaution is necessary before installation?
The circuit must be de-energized before beginning any installation procedures.
What is included in an LR and DLR kit?
An LR and DLR kit contains one elbow connector housing, one shear bolt lug, one stud, one insulated plug with cap, three tubes of lubricant, and one cable adapter.
What safety precaution is necessary before installation?
The circuit must be de-energized before beginning any installation procedures.
What conductors are compatible with the system?
The Elastimold advanced shear bolt connection system is compatible with both aluminum and copper conductors.
How to Install the K655LR-NAC03 Shear Bolt Connector
Instructions for installing the K655LR-NAC03 shear bolt connector on copper or aluminum conductors.
Estimated time: 30m
Tools needed:
Hexagon socket (AF 3/4” or SW19), Wire brush, Pliers (for manual rework, if needed)
Supplies needed:
K655LR-NAC03 Shear Bolt Connector, Cable accessory (for preparation), Insulated cap or connector (if submerging/energizing)
- Inspect and Prepare Components
Verify that the package contents are complete and undamaged. Check all components for proper fit with the cable and mating products. Read all installation instructions before starting. Have all required tools at hand and maintain cleanliness throughout the procedure.
- Insert Center Ring
Insert the appropriate center ring into the barrel of the K655LR-NAC03 connector. Refer to the table in the documentation for the correct center ring based on conductor type and size (750 kcmil).
- Prepare Cable
Prepare the cable as specified in the instructions accompanying the applicable cable accessory. Clean the conductor surface using a wire brush, especially for aluminum conductors, immediately before inserting it into the barrel.
- Initial Bolt Tightening
Insert the conductor into the barrel. Loosely install bolts #1, #2, and #3. Apply slow, steady turns to bolt #1 until it makes contact with the conductor. Repeat this process for bolts #2 and #3.
- Shear Bolt Heads
Using the specified hexagon socket (AF 3/4” or SW19), begin with bolt #1 and apply torque alternately to each bolt. Continue applying torque until the head of each bolt shears off flush with the connector barrel. It is recommended to hold the connector barrel securely during this process. Do not use impact guns.
- Verify Shearing and Rework if Necessary
Inspect the connector to ensure all bolt heads have sheared off flush with the connector barrel. If any bolt heads do not shear off flush, manual rework is required. Contact Elastimold® technical services for guidance.
- Finalize Installation
If the product was supplied with protective shipping covers, remove them and replace them with the appropriate HV insulated caps or connectors before submerging or energizing the circuit.
