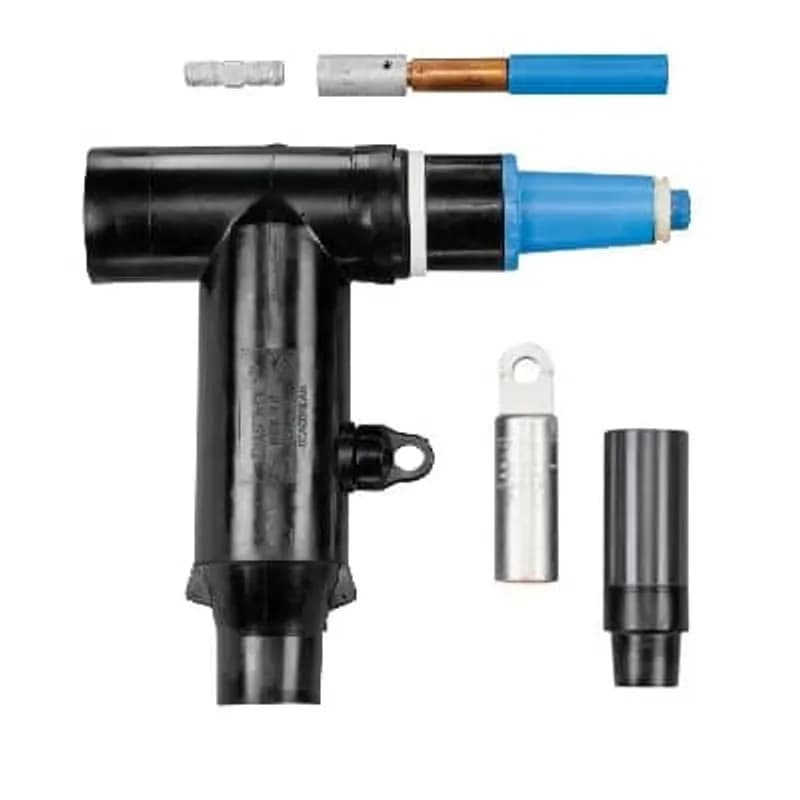

ABB Installation Products K656CETP-L0330 25kv, 600 Amp Series, Deadbreak Combo-T. Connector Elbow with Integral 200 Amp Loadbreak…

For CCP bus installation, the 600ATM and BIP should be torqued to 50 to 60 ft.-lbs.

Each combination elbow/connecting plug reduces the stack height by 2.67 inches.

The ComboT installs with standard assembly tools and uses a standard 600 or 900 series stud.

Red interfaces are for 15 kV reducing taps, and blue are for 25 kV reducing taps. They provide better visibility, seating indication, and prevent sticking for easier removal.

The 25 kV reducing tap includes vents specifically designed to prevent partial-vacuum flashover.

CETP connectors are available in 15 kV and 25 kV classes. Maximum phase-to-ground operating voltage is 8.3 kV or 15.2 kV, and phase-to-phase is 14.4 kV or 26.3 kV.

CETP connectors have a continuous current rating of 600 A for deadbreak and 200 A for loadbreak, or 900 A for deadbreak and 200 A for loadbreak.

CCP/CBW connectors have a voltage class of 15/25/28 kV. The maximum phase-to-ground operating voltage is 16.2 kV, and phase-to-phase is 28.0 kV.

CCP/CBW connectors have continuous current ratings of either 600 A or 900 A.

ComboT assembly utilizes a standard 5/8 in–11 stud that threads into the equipment bushing.
