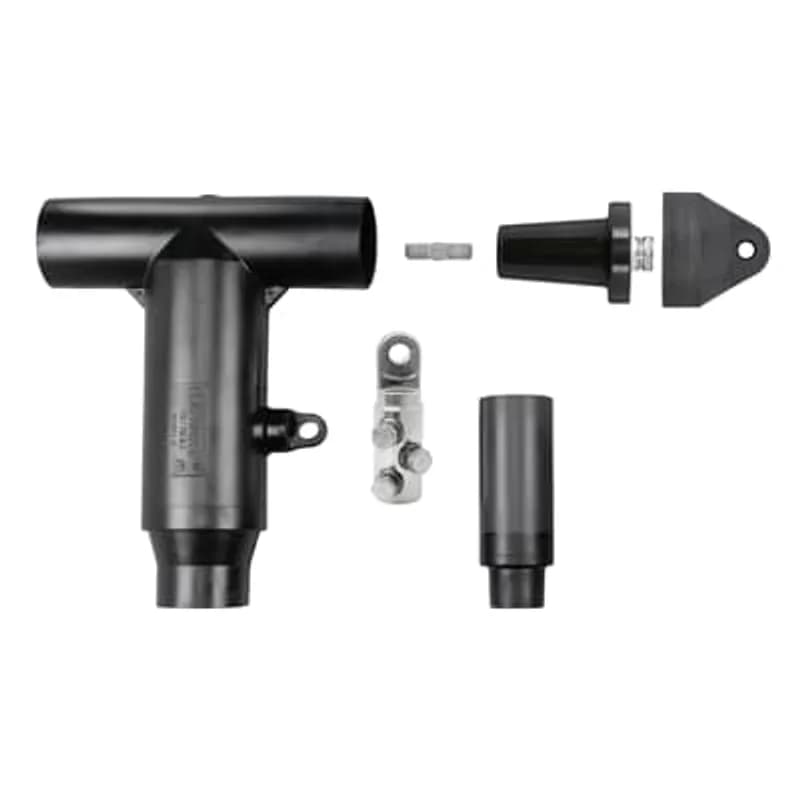

ABB Installation Products K656LR-K-AC03 15/25kV, 600 Amp, Deadbreak Elbow Connector with Test Point - with Shear Bolt Connector.…
UPC: 075114355049
Documents & Media
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage rating for medium voltage applications
- 600 Amp continuous current rating
- Accommodates cable insulation diameters from 1.090 to 1.310 inches (K dimension)
- Supports 500 to 750 kcmil conductors (AC03) including stranded, compressed, solid, and compact types
- Includes tin-plated aluminum shear bolt lug for secure conductor termination and a test point for diagnostics
Specifications
Amperage Rating | 600 A |
Application | 15/25kV, 600 Amp Deadbreak Elbow Connection |
Cable Insulation Diameter | 1.090-1.310 inch |
Color | Black |
Conductor Range | 500 to 750 kcmil |
Conductor Size | 500-750 kcmil (Stranded/Compressed/Solid/Compact) |
Connection | Shear Bolt |
Connection Type | Shear Bolt Lug |
Connection Type | Deadbreak Elbow Connector |
Current Rating | 600 A |
Environmental Conditions | Fully Submersible |
Features | Test Point, Insulated Plug with Cap |
Insulation | True |
Length | 13 in |
Length | 330.2 mm |
Material | Housing - EPDM-Rubber |
Material | Tin-plated Aluminum |
Series | 600 Series |
Size | 1.090 to 1.310 inch |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 25 kV |
Voltage Rating | 15/25kV |
Voltage Rating | 15/25 kV |
Width | 10.36 in |
Width | 263.144 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
656CETP-MAC03-S
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Shear Bolt Lug. Conductor Size Compressed-Stranded-Solid-Compact 500 to 750 kcmil. 200ECS Cold Shrinkable Jacket Seal Included.
K152SR-B0220
200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle with Test Point, Bails are required but not included, order separately. Cable Insulation Diameter 0.635 inch to 0.905 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
K655LR-M-AC03
15/25kV, 600 Amp, Deadbreak Elbow Connector without Test Point - with Shear Bolt Connector. Includes Elbow Housing, Insulated Plug with Cap, Stud, Shearbolt Lug, Cable Adapter and Lubricant. Cable Insulation Diameter M - 1.370 to 1.630 inch. Tin-Plated Aluminum ShearBolt Lug, Conductor Size AC03 - 500 to 750 kcmil Stranded/Compressed/Solid/Compact.K656LR-N-AC04
15/25kV, 600 Amp, Elbow Connector with Test Point - with Shear Bolt Connector. Includes Elbow Housing, Insulated Plug with Cap, Stud, Shearbolt Lug, Cable Adapter and Lubricant. Cable Insulation Diameter N - 1.550 to 1.780 inch. Tin-Plated Aluminum ShearBolt Lug, Conductor Size AC04 - 750 to 1250 kcmil Stranded/Compressed/Solid/Compact.
K655YSR-F0210
600 Amp, 15-25kV, 600 Series Deadbreak Straight Receptacle. Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compacted Solid #2.
K656CY-J0270
15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.K655YSR-L0320-SG3
600 Amp, 15-25kV, 600 Series Deadbreak Straight Receptacle. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.Frequently Asked Questions
How many connectors are needed for various wire sizes?
Only five range-taking shear bolt connectors are needed to accommodate multiple wire sizes from #2 AWG to 1500 kcmil.
What industry standards does the system meet?
The Elastimold advanced shear bolt connection system meets the latest revision of IEEE386.
What is a critical safety step before installation?
The circuit must be de-energized before beginning the installation process.
What tools are required for installation?
Only a standard wrench is needed for installation; no dies or pneumatic tools are required.
What voltage range do these connectors support?
The connectors are suitable for 600/900 amp elbow connectors, vault stretchers, and straight receptacles from 15 kV up to 35 kV.
What are the current ratings for the shear bolt connectors?
The shear bolt connectors are applicable for 600 amp and 900 amp current ratings.
What is the conductor size range for these connectors?
These connectors accommodate wire sizes from #2 AWG to 1500 kcmil. Note that 1500 kcmil is only applicable for 35 kV systems.
What conductor types are compatible with this system?
The Elastimold advanced shear bolt connection system is compatible with both aluminum and copper conductors.
What is a critical safety step before installation?
The circuit must be de-energized before beginning the installation process.
How many connectors are needed for various wire sizes?
Only five range-taking shear bolt connectors are needed to accommodate multiple wire sizes from #2 AWG to 1500 kcmil.
How to Install the K656LR-K-AC03 Shear Bolt Connector
Instructions for installing the K656LR-K-AC03 shear bolt connector onto electrical cables.
Estimated time: 30m
Tools needed:
Hexagon socket (AF 3/4” or SW19), Wire brush, Cable accessory installation instructions
Supplies needed:
Center ring, K656LR-K-AC03 shear bolt connector, Cable
- Inspect and Prepare
DANGER: Ensure all apparatus is de-energized before proceeding. Inspect the package contents for completeness and damage. Check all components for proper fit with the cable and mating products. Have all required tools at hand and maintain cleanliness.
- Insert Center Ring
Insert the appropriate center ring into the barrel of the K656LR-K-AC03 connector. Refer to the table in the installation instructions to determine the correct center ring for aluminum or copper conductors of 350/500/750 AWG-KCMIL.
- Prepare Cable
Prepare the cable as specified in the instructions accompanying the applicable cable accessory. Clean the conductor using a wire brush immediately before inserting it into the barrel.
- Initial Bolt Tightening
Torque bolt #1 with slow, steady turns until it makes contact with the conductor. Repeat this process for bolts #2 and #3.
- Shear Bolts
Using the specified hexagon socket, and starting with bolt #1, apply torque alternately to each bolt until the head shears off. It is recommended that the connector barrel be held securely in place during this process. CAUTION: Do not use impact guns. Do not touch or move energized products in the work area.
- Verify Bolt Shearing
If the bolts do not shear off flush with the connector barrel, manual rework is required. Contact Elastimold® technical services for assistance.
