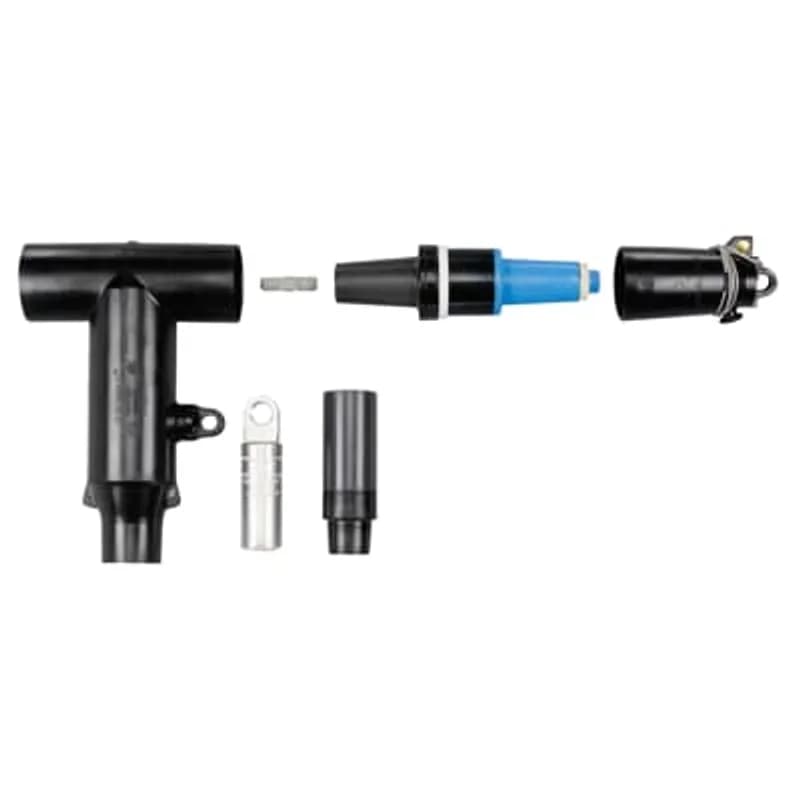

ABB - Installation Products K656ETP-P0410-DRG - 600 Amp, 25kV, Deadbreak Elbow, Test and Ground Replacement Kit with Test Point. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1000 kcmil. With Insulated Cap.

ABB Installation Products K656ETP-P0410-DRG 600 Amp, 25kV, Deadbreak Elbow, Test and Ground Replacement Kit with Test Point. Cable…

UPC: 075114430807


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K656ETP-P0410-DRG is a 600 Amp, 25kV Deadbreak Elbow Test and Ground Replacement Kit engineered for medium-voltage cable systems. This kit provides a reliable solution for terminating and grounding 1000 kcmil compressed stranded conductors with insulation diameters between 1.725 and 1.935 inches. The deadbreak design ensures safe, load-break operation without interrupting service, while the integrated test point allows for accurate voltage verification without de-energizing the system. The kit includes an aluminum compression lug for secure conductor termination and an insulated cap to protect the elbow during storage or transport. Compatible with standard 25kV class equipment, this replacement kit is ideal for utility, industrial, and commercial applications where deadfront terminations are required. The deadbreak feature eliminates the need for hot stick operations, reducing safety risks and downtime during maintenance or testing procedures. Designed for medium-voltage cable accessories, this kit meets ANSI/IEEE Standard 386 for 25kV voltage class, with a maximum phase-to-ground operating voltage of 15.2kV and phase-to-phase voltage of 26.3kV. The 125kV BIL impulse withstand rating ensures reliable performance under transient conditions. The kit is part of ABB’s comprehensive portfolio of deadbreak elbows, providing a cost-effective alternative to full replacement while maintaining operational integrity.
  • 600 Amp, 25kV deadbreak elbow with test point for safe load-break operation
  • Compatible with 1.725-1.935 inch cable insulation and 1000 kcmil compressed stranded conductors
  • Integrated test point enables voltage verification without system de-energization
  • Aluminum compression lug ensures secure conductor termination
  • Includes insulated cap for storage/transport protection

Specifications

Amperage Rating
600 A
Application
600 Amps, 25 kV
Color
Black
Conductor Range
100 STR/COMPR kcmil
Connection
Compression
Connection Type
Compression Lug
Current Rating
600 A
Insulation
True
Material
Aluminum
Material
Housing - EPDM-Rubber
Size
Cable Insulation Diameter 1.725 in to 1.935 in
Size
1.725 inch to 1.935 inch (Cable Insulation Diameter), 1000 kcmil (Conductor Size)
Special Features
Capacitive Test Point, Insulated Cap
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Window-Op Connector
Voltage Rating
25kV
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Amp Elbow Connector, Stick Op Connector Kit, 25KV, Dead Break, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 450 /Solid 500/550.

K655LRTP-L0320-DRG

600 Amp Elbow Connector, Stick Op Connector Kit, 25KV, Dead Break, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 450 /Solid 500/550.
Single cable clamp 150-300mm2 for power terminal type 5

45000034

Single cable clamp 150-300mm2 for power terminal type 5
15/25kV, Deadbreak, 600 Series Direct Test Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 700/750 kcmil or Solid/Compacted 900 kcmil. Cold Shrinkable Jacket Seal.

K655DLR-M0380-S

15/25kV, Deadbreak, 600 Series Direct Test Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 700/750 kcmil or Solid/Compacted 900 kcmil. Cold Shrinkable Jacket Seal.
15kV, 200 Amp, Loadbreak Elbow with Bushing Insert Kit with Test Point, Cable Insulation Diameter B - 0.635 to 0.905 inch (16.13-22.99mm). Bi-Metal Compression Lug, Conductor Size 220 - #2 Stranded/Compressed or #1 Solid/Compact.

162A4-B5220

15kV, 200 Amp, Loadbreak Elbow with Bushing Insert Kit with Test Point, Cable Insulation Diameter B - 0.635 to 0.905 inch (16.13-22.99mm). Bi-Metal Compression Lug, Conductor Size 220 - #2 Stranded/Compressed or #1 Solid/Compact.
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed-Stranded 4/0 AWG Compacted-Solid 250 kcmil. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

756LR-K2270-SG3

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed-Stranded 4/0 AWG Compacted-Solid 250 kcmil. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point and Sealing Kit, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS Jacket Seal Included.

376LR-H-2240-S

200 Amp, 35kV, Loadbreak Elbow Connector with Test Point and Sealing Kit, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS Jacket Seal Included.
25kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Blue. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Blue PBT interface shield reduces sticking and provides seating indicator.

2701DLA

25kV, 200 Amp, DeadBreak to LoadBreak Bushing Adapter, Blue. Includes hex-broach for Torque installation, Peroxide-cured insulation and jacket, Provision for ground wire connection, All copper current path. Blue PBT interface shield reduces sticking and provides seating indicator.
12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, with Sealing Kit, Cable Insulation Diameter - 16.13 mm - 22.90 mm, Copper Compression Lug, Conductor Size 35mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.

252LR-B2035-S

12/20 24kV, 250 Amp, Deadbreak, Elbow Connector with Test Point, with Sealing Kit, Cable Insulation Diameter - 16.13 mm - 22.90 mm, Copper Compression Lug, Conductor Size 35mm. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. IEC Standard.

How to Install K656/K676LR Deadbreak Elbow Connectors

This guide provides step-by-step instructions for the safe installation and connection of K656/K676LR Deadbreak Elbow Connectors, designed for high voltage apparatus. It covers cable preparation, component assembly, and final connection procedures, emphasizing safety for high voltage electrical equipment.

Estimated time: 1h 45m

Tools needed:

Cable cutting tool, Wire strippers, Crimping tool (specific to compression lug), Wire brush (for aluminum conductors), Hotstick, Suitable capacitive voltage sensing device, Torque wrench, Suitable ground connector, Clean cloths/wipes

Supplies needed:

K656/K676LR Deadbreak Elbow Connector kit (Elbow, Cable Adapter, Compression Lug, Insulating Plug, Lubricant, Stud Prepack), Cable (appropriate type and size), Vinyl plastic tape (if using flat metallic tape shield), Tape retainer (if using fabric tape shield), Tape marker (if applicable for various shield types), Ground wire (minimum No. 14 AWG Copper), Silicone grease (for test point cap), Waterproofing material (for cable jacket), Mating apparatus/bushing/tap well, HV insulated caps (if replacing shipping covers)

  1. Ensure Safety and Inspect Components

    DANGER: All apparatus must be de-energized during installation or removal of parts. This product should be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. Inspect all package contents and components to ensure they are complete, undamaged, and compatible with the cable and mating products. Read all instructions thoroughly before beginning.

  2. Position and Cut Cable

    Position the cable in its final assembled location, ensuring enough slack for adequate clearance. If applicable, unwind the concentric neutral wires. Carefully cut the cable 1-3/4 inches (45mm) from the centerline of the mating product.

  3. Clean and Prepare Cable Outer Surface

    Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent-back concentric neutral wires. Remove the outer jacket to 12 3/4 inches (324mm). Based on your cable type, prepare the shield: fold back shield wires, remove and tape flat metallic tape shield, remove fabric tape shield and install tape retainer/marker, remove longitudinally corrugated shield and install tape marker, or remove semi-con shield (do not cut or nick insulation). Refer to specific instructions for Unishield or lead sheath cables if applicable.

  4. Install Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and then lubricate the cable insulation, always working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  5. Prepare Conductor

    Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Exercise caution not to cut or nick the cable adapter or the conductor. The length of the exposed conductor should measure between 4 3/8 inches and 4 11/16 inches (111mm-119mm). If the length is outside this range, redo the assembly.

  6. Crimp Compression Lug

    For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor immediately before fully inserting it into the compression lug. Measure the 'Check Dimension' before crimping; it must be less than 6 1/2 inches (165mm). Crimp the compression lug according to the instructions supplied with the lug. After crimping, wipe off all excess inhibitor. The distance from the end of the compression lug to the cable adapter should be 6 1/2 inches to 7 1/4 inches (165mm-184mm). Redo if dimensions are incorrect.

  7. Install Elbow

    Lubricate the cable adapter and the inside of the elbow's cable entrance. Install the elbow onto the cable adapter, pushing until it cannot advance further. Verify that the cable adapter remains flush with the tape marker; reposition if necessary. Once confirmed, remove the tape marker.

  8. Prepare Mating Products

    DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED. Remove any protective caps from both the elbow and the mating part. If the mating part is not equipped with a stud, hand tighten the threaded stud supplied with the elbow into it. Clean and lubricate both the elbow and the mating part with the supplied lubricant, ensuring all surfaces remain clean.

  9. Connect Elbow to Mating Part

    Carefully push the elbow onto the mating part, ensuring that the hole in the compression lug aligns precisely with the stud on the mating part.

  10. Connect Opposite Mating Part (if applicable)

    Clean and lubricate the mating part intended for the opposite end of the elbow. Insert this mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to the specific instructions provided with that mating part.

  11. Install Insulating Plug (if used)

    If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap onto the elbow and push down firmly until it snaps securely into place. CAUTION: The insulating plug provides a means for detecting system voltage; follow voltage test directions.

  12. Ground Cable Shield and Waterproof Jacket

    Insert one end of a piece of wire, with an ampacity at least equivalent to No. 14 AWG Copper, through the grounding eye and twist to form a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; follow instructions supplied with any grounding device or use an alternate method. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.

  13. Perform Voltage Test

    The ELASTIMOLD deadbreak elbow connector features an integral capacitance test point. Remove the test point cap using a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device designed for capacitive test points. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means to prevent serious injury. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
