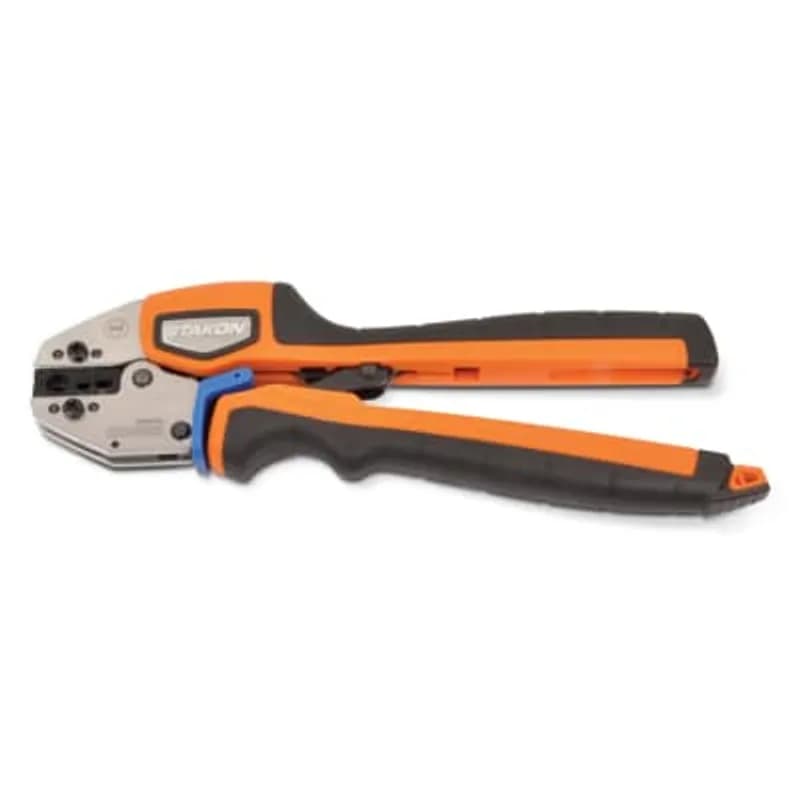

ABB Installation Products ERG4006 Ergonomic Hand Tool for Crimping RA, RB Insulated .110 Disconnects, RZ Insulated Terminals
UPC: 786209928719
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Crimps Sta-Kon insulated RA (.110 disconnects, 22-18 AWG) and RB (.110 disconnects, 16-14 AWG) terminals
- Designed for RZ insulated terminals (26-22 AWG) on copper wire
- Overmolded soft grips reduce hand fatigue during repetitive crimping
- Shure Stake release lever enables quick die changes for efficient tool setup
- Crimp assist foot ensures stable positioning for consistent, high-quality terminations
Specifications
Application | Crimping Terminals |
Connection Type | Crimping |
Handle Color | Black;Orange |
Handle Type | Palm Grip |
Overall Length | 10.46 in |
Overall Length | 265.684 mm |
Size | .110 |
Special Features | Comfort Crimp Ergonomic Design, Shure-Stake Ratchet, Color-coded Die Nests |
Type | Manual Crimp Tool |
Wire Size | Insulated RZ Terminals, Splices 26-22 AWG , CU Wire 22-14 AWG |
Package Dimensions (L x W x H) | 7.08 IN x 1.57 IN x 14.17 IN |
Package Dimensions (L x W x H) | 17.9832 cm x 3.9878 cm x 35.9918 cm |
Package Weight (Imperial) | 1.8000 L |
Package Weight (Metric) | 0.8170 kg |
TBM41E
Ratcheting Compression Crimp Tool - 5 Nested Indexing Die with Die Code Embossing, Installs Copper and Aluminum Lugs, Splices, C-Taps, and Pigtails, Wire Ranges #8-#2AWG CU, #10-#6AWG AL
ERG4005
Ergonomic Hand Tool for Crimping B, C, D, E Non-Insulated Terminals/Splices/Disconnects (D,E Tubular Only)
ERG4255
Ergonomic Hand Tool for Crimping RA, RB, RC Insulated Heat Shrink Terminals/Splices/Disconnects
How to Perform Calibration and Gaging Verification on the ERG4006 Compression Tool
This guide details the steps for verifying the calibration and gaging of your ERG4006 Comfort Crimp® Compression Tool with Shure Stake® Mechanism.
Estimated time: 15m
Tools needed:
SAE No. 20 motor oil, Gage pins
- Perform Visual Inspection
Visually inspect the tool for cracks, sharp edges, or any other imperfections that may affect performance. Ensure the nest area is free of burrs, dents, or scratches.
- Prepare the Tool for Gaging
Ensure all pins, pivot points, and bearing surfaces are protected with a thin coat of SAE No. 20 motor oil. Do not oil excessively. Wipe the die nest clean before gaging.
- Perform Gaging Procedure
Swing the locator away from the nests. Close the handles until the SHURE STAKE® mechanism just trips. Using gage pins, ensure that each nest meets the gaging requirements as specified in the relevant table for your ERG4006 model.
- Verify SHURE STAKE® Mechanism Release Force
Squeeze the handles until the jaws are fully closed but before the SHURE STAKE® mechanism releases. Apply force gradually at 1-1/2 inches from the end of the handles until the SHURE STAKE® mechanism releases. The force required should be a minimum of 27 lbs and a maximum of 37 lbs.
