UPC: 786209928764
Contact for Pricing
Overview

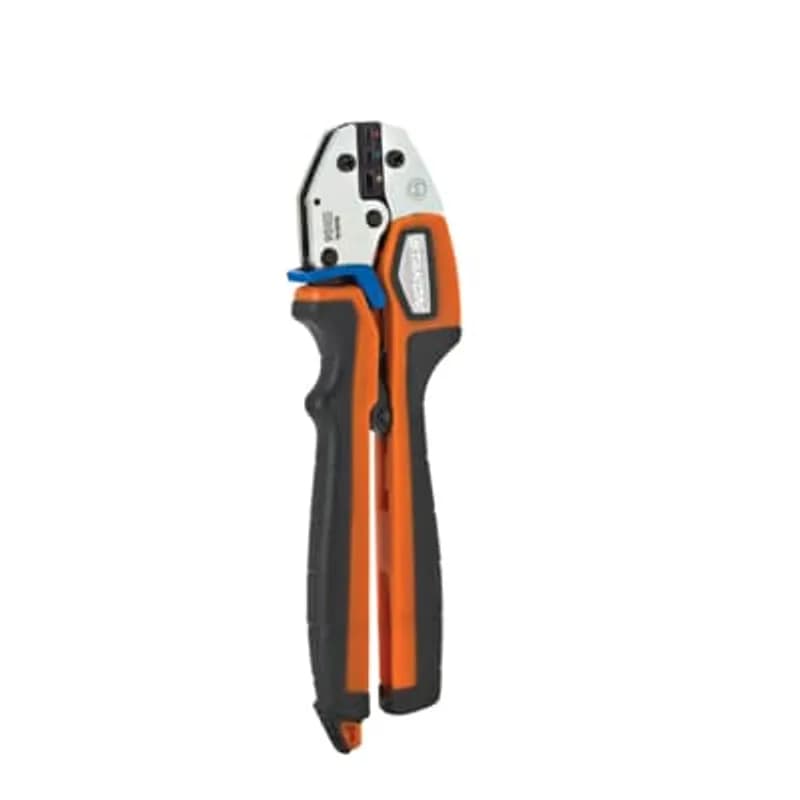

- Designed for ferrules #26-1/0 AWG
- Part of ABB Installation Products line
- Optimized for stranded wire termination
- Ergonomic handle for repetitive use
- Compatible with standard ferrule types
Specifications
Application | Crimping Terminals |
Handle Color | Black;Orange |
Handle Type | Palm Grip |
Overall Length | 10.46 in |
Overall Length | 265.684 mm |
Special Features | Comfort Crimp Ergonomic Design, Shure-Stake Ratchet, 4 Individual Die Sets |
Type | Manual Crimp Tool |
Wire Size | 26-1/0 AWG |
Package Dimensions (L x W x H) | 0.08 IN x 1.57 IN x 14.17 IN |
Package Dimensions (L x W x H) | 0.2032 cm x 3.9878 cm x 35.9918 cm |
Package Weight (Imperial) | 2.4200 L |
Package Weight (Metric) | 1.0980 kg |
13100A
Remote 14 Ton Hydraulic Head - 10,000-psi Maximum Hydraulic Operating Pressure, Weighs 10 pounds
12050
Auto-feed Pnuematic Tool for Crimping A, B, C Non-insulated and RA, RB, RC Insulated Terminals/Disconnects
13620
Slimline Hand Switch for Catalog Number 13600 Hydraulic Pump, Remote Pump Switch. Switch is Approximately 1-1/8 inch thick x 1-1/2 inch wide x 3-5/8 inch long. Overall Length with Cord is 10 foot.
13640
Hydraulic Crimp Head, 12 Ton Hydraulic Head. Tool Only. Approximate Length 15-13/16 inch. Output 3-1/2 Tons, Input 9800 PSI, Weight 12 pounds (Less Dies).
ODF1
Manual Compression Tool with Fixed O and D Die, Wooden Handles, Handle Length 21 inches, Weight 6.0 pounds
Frequently Asked Questions
What is the ERG4 tool kit designed for?
The ERG4 tool kit is designed for installing Sta-Kon ferrules on copper wire ranging from 26 AWG to 1/0 AWG.
What wire gauges does die set DIE0410 cover?
Die set DIE0410 covers wire gauges 12, 10, and 8 AWG.
What wire gauges does die set DIE3550 cover?
Die set DIE3550 covers wire gauges 2, 1, and 1/0 AWG.
What metric wire sizes does die set DIE1025 accommodate?
Die set DIE1025 accommodates metric wire sizes 10, 16, and 25 mm².
What wire gauges does die set DIE1025 cover?
Die set DIE1025 covers wire gauges 8, 6, and 4 AWG.
What metric wire sizes does die set DIE0410 accommodate?
Die set DIE0410 accommodates metric wire sizes 4, 6, and 10 mm².
What metric wire sizes does die set DIE02506 accommodate?
Die set DIE02506 accommodates metric wire sizes 0.25-0.75, 1.5, 2.5, 4, and 6 mm².
What wire gauges does die set DIE02506 cover?
Die set DIE02506 covers wire gauges 26-20, 18-16, 14, 12, and 10 AWG.
What safety precaution should be observed when using the ERG4 tool?
Do not crimp energized wires with the ERG4 tool, as its handles are non-insulating.
What is the wire gauge range for the ERG4 tool?
The ERG4 tool is capable of crimping copper wire from 26 AWG up to 1/0 AWG.
How to Set Up, Use, and Maintain the ERG4 COMFORT CRIMP Compression Tool
This guide provides instructions for installing die sets, crimping ferrules, and performing routine maintenance on the ERG4 COMFORT CRIMP compression tool. Ensure all safety warnings are observed.
Estimated time: 15m
Tools needed:
Torx wrench (supplied), Clean brush, Soft, lint-free cloth
Supplies needed:
Ferrules (26-1/0 AWG), Stripped wire, SAE No. 20 motor oil
- Install the Appropriate Die Set
Remove the existing die screws from the tool frame using the supplied torx wrench. Select the correct die set that matches your wire gauge. Insert the chosen die set into the frame, ensuring the rear side faces the main axle. Loosely install the die set screws, then close the handles slightly to confirm proper alignment of the die halves. Finally, tighten the die screws securely with the torx wrench.
- Crimp Ferrules with the Tool
Open the tool handles fully. Position the ferrule into the proper nest of the die set. Close the handles slightly to secure the ferrule without deforming it. Insert the stripped wire completely into the ferrule. Close the handles firmly until the SHURE STAKE® mechanism cycle has been fully completed. For larger wire combinations, use the CRIMP ASSIST® foot against a flat work surface for increased leverage. WARNING: Handles are non-insulating; do not crimp on hot energized wires. Keep all body parts away from the die nest during crimping.
- Perform Routine Tool Maintenance
Regularly clean the tool by removing dust, moisture, and other contaminants using a clean brush or a soft, lint-free cloth. Avoid using the tool on objects that could cause damage. Apply a thin coat of SAE No. 20 motor oil to all pins, pivot points, and bearing surfaces, but do not over-oil. When not in use, keep the handles closed to prevent foreign objects from lodging in the dies. Store the tool in a cool, dry area.
