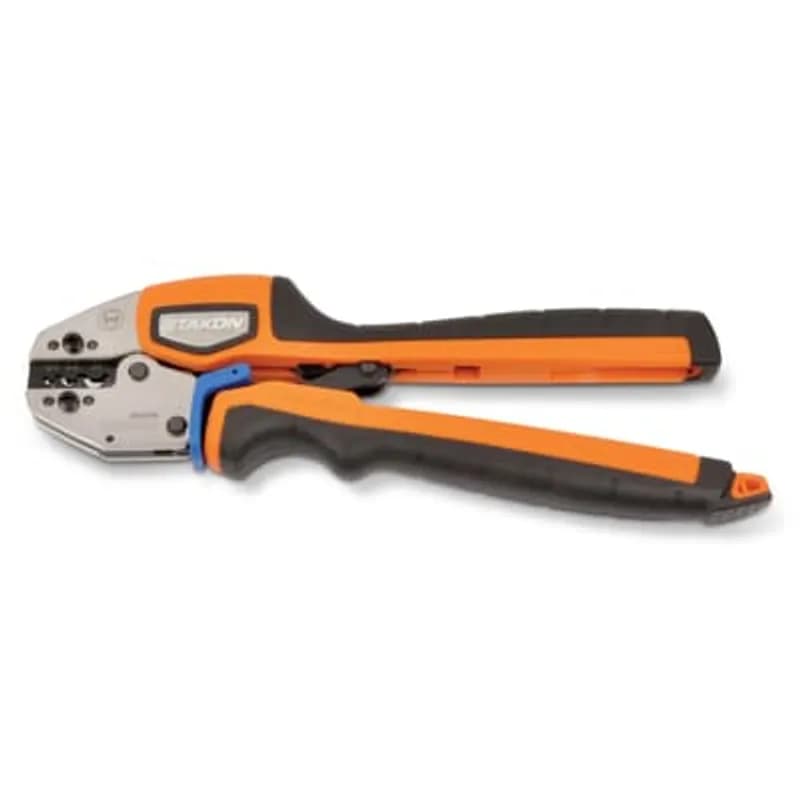

ABB Installation Products ERG4005 Ergonomic Hand Tool for Crimping B, C, D, E Non-Insulated Terminals/Splices/Disconnects…
UPC: 786209928702
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Ergonomic design with overmolded soft grips for reduced fatigue
- Shure Stake® release lever for quick terminal removal
- Crimp assist foot ensures consistent alignment and compression
- Compatible with B, C, D, E series non-insulated terminals (D,E tubular only)
- Handles copper wire from 16-6 AWG (8-6 AWG for tubular terminals)
Specifications
Application | Crimping Terminals |
Handle Color | Black;Orange |
Handle Type | Palm Grip |
Overall Length | 10.46 in |
Overall Length | 265.684 mm |
Special Features | Comfort Crimp Ergonomic Design, Shure-Stake Ratchet |
Type | Manual Crimp Tool |
Wire Size | 16-6 AWG |
Package Dimensions (L x W x H) | 7.08 IN x 1.57 IN x 14.17 IN |
Package Dimensions (L x W x H) | 17.9832 cm x 3.9878 cm x 35.9918 cm |
Package Weight (Imperial) | 1.7600 L |
Package Weight (Metric) | 0.7980 kg |
TBM41E
Ratcheting Compression Crimp Tool - 5 Nested Indexing Die with Die Code Embossing, Installs Copper and Aluminum Lugs, Splices, C-Taps, and Pigtails, Wire Ranges #8-#2AWG CU, #10-#6AWG AL
ERG4255
Ergonomic Hand Tool for Crimping RA, RB, RC Insulated Heat Shrink Terminals/Splices/Disconnects
13100A
Remote 14 Ton Hydraulic Head - 10,000-psi Maximum Hydraulic Operating Pressure, Weighs 10 pounds
12050
Auto-feed Pnuematic Tool for Crimping A, B, C Non-insulated and RA, RB, RC Insulated Terminals/Disconnects
13620
Slimline Hand Switch for Catalog Number 13600 Hydraulic Pump, Remote Pump Switch. Switch is Approximately 1-1/8 inch thick x 1-1/2 inch wide x 3-5/8 inch long. Overall Length with Cord is 10 foot.How to Crimp Non-Insulated Terminals and Splices with the ERG4005 Tool
This guide provides step-by-step instructions for safely and effectively crimping non-insulated terminals, disconnects, and splices ranging from 16 to 6 AWG using the ERG4005 COMFORT CRIMP® tool. It also covers basic maintenance and gaging verification.
Estimated time: 15m
Tools needed:
Wire strippers, Gage pins
Supplies needed:
Non-insulated terminals, Non-insulated disconnects, Non-insulated splices, Electrical wire (16-6 AWG), SAE No. 20 motor oil
- Prepare for Crimping and Observe Safety Warnings
Before operating the ERG4005 tool, read and understand all instructions. Ensure the work area is clear. Always remember that the tool handles are non-insulating; never crimp on hot energized wires. Keep all body parts away from the die nest during any crimping procedure.
- Crimp a Non-Insulated Terminal or Disconnect
Fully open the tool handles. Insert the non-insulated terminal or disconnect into the appropriate nest (16-14 AWG to B, 12-10 AWG to C, 8-6 AWG to D-E) with the terminal barrel seam facing the indentor. Close the handles slightly to secure the terminal without deforming it. Insert the stripped wire into the terminal barrel. Close the handles completely until the SHURE STAKE® mechanism cycle has finished, ensuring a secure crimp. For larger wire/terminal combinations, use the Crimp Assist™ foot against a flat surface for leverage.
- Crimp a Non-Insulated Splice
Fully open the tool handles. For splices, which require two crimps, position one end of the splice into the proper nest (16-14 AWG to B, 12-10 AWG to C, 8-6 AWG to D-E) with the window facing the indentor. Close the handles slightly to secure the splice without deforming it. Insert the stripped wire into the splice barrel. Close the handles completely until the SHURE STAKE® mechanism cycle has finished. Repeat this process for the opposite end of the splice to complete the connection.
- Perform Routine Tool Maintenance
After use, clean the tool by removing dust, moisture, and other contaminants with a clean brush or a soft, lint-free cloth. Do not use the tool on objects that could cause damage. Apply a thin coat of SAE No. 20 motor oil to all pins, pivot points, and bearing surfaces, avoiding excessive oiling. Keep the handles closed when not in use to prevent foreign objects from lodging in the dies. Store the tool in a cool, dry area.
- Verify Gaging and Calibration (Optional)
Periodically inspect the tool for cracks, sharp edges, or other imperfections, ensuring the nest area is free of burrs, dents, or scratches. To verify gaging, wipe the die nest clean. Swing the locator away from the nests. Close the handles until the SHURE STAKE® mechanism just trips. Using appropriate gage pins, confirm that each nest meets the specified gaging requirements listed in Table 1 of the manual. Perform this procedure whenever damage is suspected or operational conditions warrant.
