Contact for Pricing

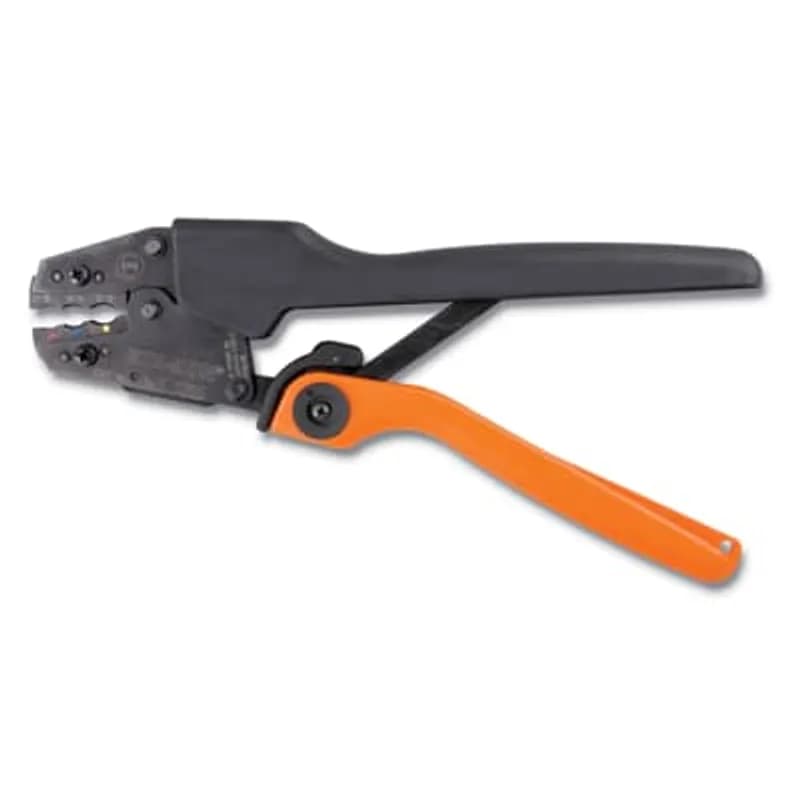

Overview
- Ergonomic design for reduced user fatigue
- Crimping tool for RA, RB, RC insulated terminals
- Suitable for insulated heat shrink splices and disconnects
- Ensures consistent and secure electrical connections
- Manufactured by ABB - Installation Products
Specifications
Application | Crimping Terminals/Splices/Disconnects |
Handle Color | Black;Orange |
Handle Type | Palm Grip |
Overall Length | 10.46 in |
Overall Length | 265.684 mm |
Special Features | Comfort Crimp Ergonomic Design, Shure-Stake Ratchet, Color-coded Die Nests |
Type | Manual Crimp Tool |
Wire Size | 22-10 AWG |
Package Dimensions (L x W x H) | 7.08 IN x 1.57 IN x 14.17 IN |
Package Dimensions (L x W x H) | 17.9832 cm x 3.9878 cm x 35.9918 cm |
Package Weight (Imperial) | 1.7700 L |
Package Weight (Metric) | 0.8030 kg |
13100A
Remote 14 Ton Hydraulic Head - 10,000-psi Maximum Hydraulic Operating Pressure, Weighs 10 pounds
12050
Auto-feed Pnuematic Tool for Crimping A, B, C Non-insulated and RA, RB, RC Insulated Terminals/Disconnects
13620
Slimline Hand Switch for Catalog Number 13600 Hydraulic Pump, Remote Pump Switch. Switch is Approximately 1-1/8 inch thick x 1-1/2 inch wide x 3-5/8 inch long. Overall Length with Cord is 10 foot.
13640
Hydraulic Crimp Head, 12 Ton Hydraulic Head. Tool Only. Approximate Length 15-13/16 inch. Output 3-1/2 Tons, Input 9800 PSI, Weight 12 pounds (Less Dies).
ODF1
Manual Compression Tool with Fixed O and D Die, Wooden Handles, Handle Length 21 inches, Weight 6.0 poundsHow to Perform Calibration and Gaging Verification on the ERG4255 Compression Tool
This guide details the steps for verifying the calibration and gaging of your ERG4255 Comfort Crimp® Compression Tool with Shure Stake® Mechanism.
Estimated time: 15m
Tools needed:
SAE No. 20 motor oil, Gage pins
- Perform Visual Inspection
Visually inspect the tool for cracks, sharp edges, or any other imperfections that may affect performance. Ensure the nest area is free of burrs, dents, or scratches.
- Prepare the Tool for Gaging
Ensure all pins, pivot points, and bearing surfaces are protected with a thin coat of SAE No. 20 motor oil. Do not oil excessively. Wipe the die nest clean before gaging.
- Perform Gaging Procedure
Swing the locator away from the nests. Close the handles until the SHURE STAKE® mechanism just trips. Using gage pins, ensure that each nest meets the gaging requirements as specified in the relevant table for your ERG4255 model.
- Verify SHURE STAKE® Mechanism Release Force
Squeeze the handles until the jaws are fully closed but before the SHURE STAKE® mechanism releases. Apply force gradually at 1-1/2 inches from the end of the handles until the SHURE STAKE® mechanism releases. The force required should be a minimum of 27 lbs and a maximum of 37 lbs.
