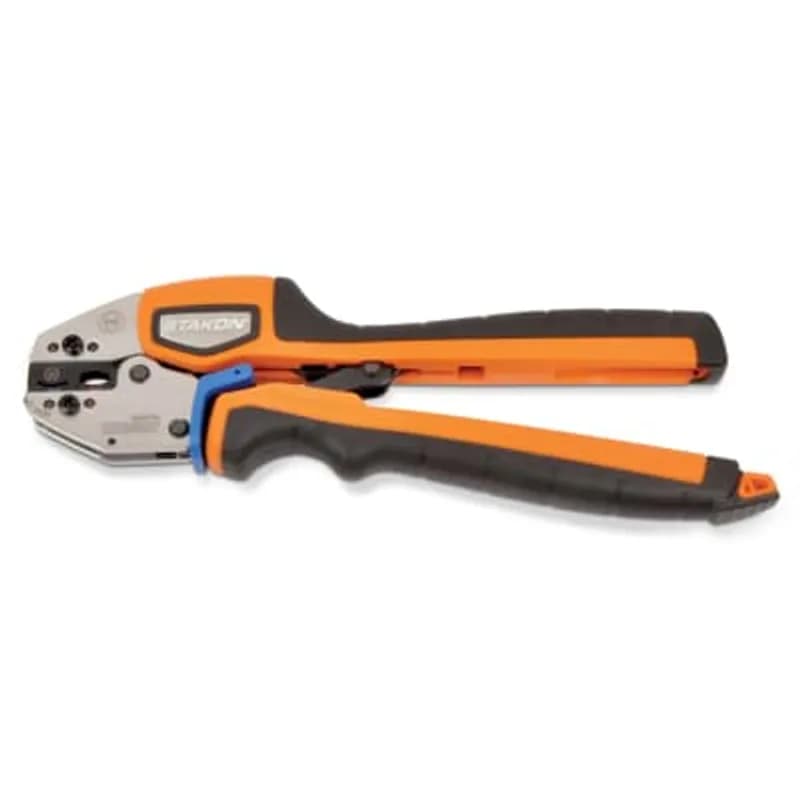

ABB Installation Products ERG4007 Ergonomic Hand Tool for Crimping RD, RE Insulated Terminals (Tubular Only)
UPC: 786209928726
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Designed for Sta-Kon® insulated RD (8 AWG) and RE (6 AWG) tubular terminals
- Ergonomic overmolded soft grips reduce operator fatigue
- Shure Stake® release lever for easy terminal removal
- Crimp Assist™ foot ensures precise positioning
- Compact design for use in tight spaces
Specifications
Application | Crimping Terminals/Splices/Disconnects |
Handle Color | Black;Orange |
Handle Type | Palm Grip |
Overall Length | 10.46 in |
Overall Length | 265.684 mm |
Special Features | Comfort Crimp Ergonomic Design, Shure-Stake Ratchet |
Type | Manual Crimp Tool |
Wire Size | 8-6 AWG |
Package Dimensions (L x W x H) | 7.08 IN x 1.57 IN x 14.17 IN |
Package Dimensions (L x W x H) | 17.9832 cm x 3.9878 cm x 35.9918 cm |
Package Weight (Imperial) | 1.7500 L |
Package Weight (Metric) | 0.7940 kg |
ERG4005
Ergonomic Hand Tool for Crimping B, C, D, E Non-Insulated Terminals/Splices/Disconnects (D,E Tubular Only)
ERG4255
Ergonomic Hand Tool for Crimping RA, RB, RC Insulated Heat Shrink Terminals/Splices/Disconnects
13100A
Remote 14 Ton Hydraulic Head - 10,000-psi Maximum Hydraulic Operating Pressure, Weighs 10 poundsHow to Perform Calibration and Gaging Verification on the ERG4007 Compression Tool
This guide details the steps for verifying the calibration and gaging of your ERG4007 Comfort Crimp® Compression Tool with Shure Stake® Mechanism.
Estimated time: 15m
Tools needed:
SAE No. 20 motor oil, Gage pins
- Perform Visual Inspection
Visually inspect the tool for cracks, sharp edges, or any other imperfections that may affect performance. Ensure the nest area is free of burrs, dents, or scratches.
- Prepare the Tool for Gaging
Ensure all pins, pivot points, and bearing surfaces are protected with a thin coat of SAE No. 20 motor oil. Do not oil excessively. Wipe the die nest clean before gaging.
- Perform Gaging Procedure
Swing the locator away from the nests. Close the handles until the SHURE STAKE® mechanism just trips. Using gage pins, ensure that each nest meets the gaging requirements as specified in the relevant table for your ERG4007 model.
- Verify SHURE STAKE® Mechanism Release Force
Squeeze the handles until the jaws are fully closed but before the SHURE STAKE® mechanism releases. Apply force gradually at 1-1/2 inches from the end of the handles until the SHURE STAKE® mechanism releases. The force required should be a minimum of 27 lbs and a maximum of 37 lbs.
