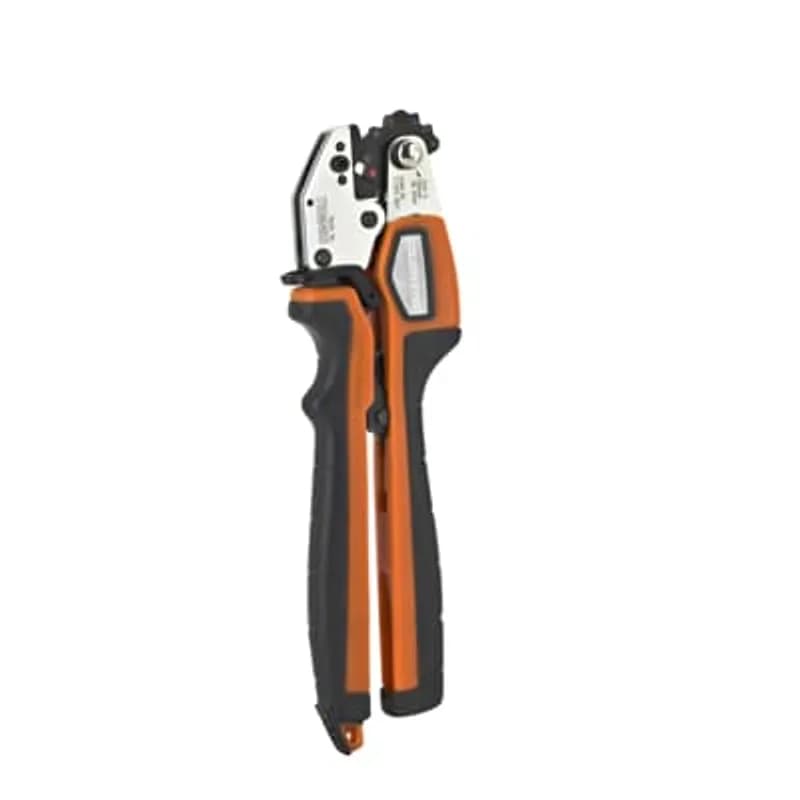

ABB Installation Products TBM45S Mechanical Compression Hand Tool, Comfort Grip, Crimps #8-#2 Cu, #10-#6 Al Connectors…
UPC: 786209928771
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Crimps #8 AWG to #2 AWG Copper (Cu) conductors
- Crimps #10 AWG to #6 AWG Aluminum (Al) conductors
- Compatible with ABB C-Taps 54705-54725
- Features a comfort grip handle for improved ergonomics
- Provides secure mechanical compression for reliable connections
Specifications
Application | Crimping Lugs/Taps |
Handle Color | Black;Orange |
Handle Type | Palm Grip |
Overall Length | 10.46 in |
Overall Length | 265.684 mm |
Special Features | Comfort Crimp Ergonomic Design, Shure-Stake Ratchet, Rotating Die Wheel, Color-coded Die Nests, Die Code Embossment |
Type | Manual Crimp Tool |
Wire Size | 8-2 AWG CU , 10-6 AWG AL |
Package Dimensions (L x W x H) | 7.08 IN x 1.57 IN x 14.17 IN |
Package Dimensions (L x W x H) | 17.9832 cm x 3.9878 cm x 35.9918 cm |
Package Weight (Imperial) | 1.7900 L |
Package Weight (Metric) | 0.8120 kg |
AD 600 L 531 V1
Tin Plated Aluminum Mechanical Lug, #4 - 600 kcmil, Dual Rated Copper and Aluminum, 90 Degree C, UL listed. Length 3-3/16 inch, Width 2-3/8 inch, Height 1-9/16 inch, Pad Thickenss 7/16 inch with One 17/32 inch Diameter Hole and Anti-Rotation Bar on Bottom of Connector. Two Transverse Taps - 7/8-15 UNF-2B x 1.115 inch Deep on 1.225 inch Center. Includes Two Tin Plated Aluminum 7/8-14 x 1.062 inch Set Screws.AD600 M406 V14/46526
Tin Plated Aluminum Mechanical Lug, #4 - 600 kcmil, Dual Rated Copper and Aluminum 90 Degree C, UL Listed. 3/8 Inch Bolt Hole, Length 3-5/8 inch, Width 2-13/32 inch, Height 1-9/16 inch. Pad Thickness 7/16 inch with Inline - One 13/32 inch Diameter Hole and One Slot .406 inch Wide x .593 inch long. Two Taps - 7/8-14 UNF-2B x 1.15 inch Deep on 1.225 inch Center. Includes Two Tin Plated Aluminum 7/8-14 x 1.062 inch Set Screws.
AD 600 L
Aluminum Mechanical Lug, #4 - 600 kcmil, Dual Rated Copper and Aluminum, 90 Degree C, 1/2 Inch Bolt hole, Two BarrelA 600 CTM 406
Tin Plated Aluminum Dual Rated Mechanical Lug , #4 - 600 kcmil, or Two 250 kcmil to 1/0. CSA/UL Listed. Copper and Aluminum Temperature Rating of 90 Degrees C, Bolt 1/2 Inch. Length 3-3/4 inch, Width 1-3/8 inch, Height 1-13/16 inch. Pad Thickness 5/16 inch with Inline - One 13/32 inch Diameter Hole and One 5/8 inch long x 12/32 inch Slot on 1-1/4 inch Center. Tapped 15/16-16 UNF-2B x 1.4 inch Deep. Includes Tin Plated Aluminum Hex Head Set Screw 15/16-16 x 1-1/4 inch long.A 600-HM
Aluminum, Tin Plated, Mechanical Connector for Range of 600 kcmil - #4. CU9AL. CSA/UL listed. Length 2-3/4 inch, Width 1-3/8 inch, Height 1-1/2 inch. Pad Thickness 5/16 inch with One 7/16 inch Diameter Hole. Tapped 7/8-14 UNF-2A. Includes One Tin Plated Aluminum Set Screw 7/8-14 UNF-2A x 1-1/16 inch Long with 1/2 inch Hex Head.A 750 CT 531
Tin Plate Aluminum Mechanical Lug, #1/0 - 750 kcmil, Dual Rated Copper and Aluminum 90 Degree C, CSA/UL Listed. 1/2 inch Bolt hole. Length 2-13/16 inch, Width 1-3/8 inch, Height 1-13/16 inch. Pad Thickness 5/16 inch with One 17/32 inch Diameter Hole. Tapped 15/16-16 UNF-2B. Includes One Tin Plated Alumimum 15/16-16 UNF-2B x 1-1/4 inch Set Screw.
4HP
Plated Split Bolt Connector. Wire Range man #4 Solid to #8 Solid, Tap #4 Solid to #12 Solid. Metric 2, 5-6 MM2
13673
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210S, 204210 1H, 204210 3H Dragon Tooth TerminalsHow to Use and Maintain the TBM45S COMFORT CRIMP® Compression Tool
This guide provides instructions for operating the TBM45S COMFORT CRIMP® tool for installing Color-Keyed® copper and aluminum lugs, splices, C-taps, and pigtails. It also covers gaging verification and essential maintenance procedures.
Estimated time: 15m
Tools needed:
Gage pin
Supplies needed:
Color-Keyed® Copper and Aluminum Lugs, Splices, C-Taps and Pigtails, Stripped wire, SAE No. 20 motor oil, Clean brush or soft, lint-free cloth
- Open Handles and Select Die
Open the tool handles fully. Depress the wheel release button and rotate the die wheel to the proper die nest for your terminal type. Release the button to ensure the wheel locks securely into position. WARNING: HANDLES ARE NON-INSULATING. DO NOT CRIMP ON HOT ENERGIZED WIRES. KEEP ALL BODY PARTS AWAY FROM DIE NEST DURING GAGING OR CRIMPING PROCEDURE.
- Insert Terminal
Insert the terminal into the selected die nest. Close the handles slightly to secure the terminal, taking care not to deform it before crimping.
- Insert Stripped Wire
Insert the stripped wire completely into the terminal barrel.
- Complete Crimp Cycle
Close the handles until the SHURE STAKE® mechanism cycle has been fully completed. For a secure connection, perform two equally spaced crimps on the terminal barrel.
- Prepare for Gaging Verification
Wipe the die nest clean before performing any gaging procedure. Rotate the die wheel to the desired nest that you intend to verify.
- Perform Gaging
Close the tool handles until the SHURE STAKE® mechanism just trips. Insert the correct size gage pin into the nest. The gage pin should enter the nest area freely with minimum finger pressure and fall within the specified limits (e.g., RED .175-.187, BLUE .212-.224, GREY .265-.277, BROWN .324-.336, GREEN .406-.418).
- Clean the Tool
Remove dust, moisture, and other contaminants from the tool using a clean brush or a soft, lint-free cloth. Do not use the tool on objects that could cause damage.
- Lubricate and Store
Apply a thin coat of any good SAE No. 20 motor oil to all pins, pivot points, and bearing surfaces, avoiding excessive oiling. Keep the handles closed when not in use to prevent objects from becoming lodged in the crimping dies. Store the tool in a cool, dry area.
- Release SHURE STAKE® Mechanism
In the event that the SHURE STAKE® mechanism must be released, push up on the release bar until the ratchet teeth are disengaged.
