ABB - Installation Products 755DLR-J0240 - 600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted/Solid 2/0.

ABB Installation Products 755DLR-J0240 600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter…

UPC: 075114213219


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

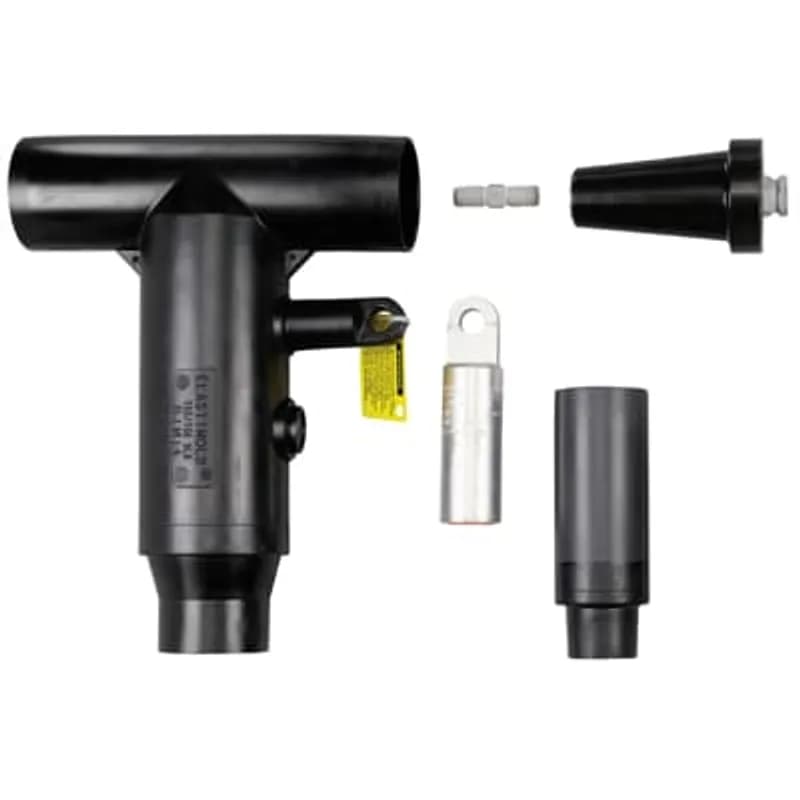

The ABB 755DLR-J0240 is a high-voltage direct test elbow designed for reliable electrical connections in demanding industrial applications. This unit is rated for 600 Amps and 35 Kilovolts, ensuring robust performance under significant electrical loads. It features an insulated plug and cap for enhanced safety and protection. The included stud and lug facilitate secure termination, with a specific aluminum compression lug designed for optimal conductivity and durability. This direct test elbow is compatible with cable insulation diameters ranging from 0.980 inches to 1.180 inches. For conductor connections, it accommodates compressed stranded wire sizes of 1/0 AWG or compacted/solid wire sizes of 2/0 AWG. The integrated cable adapter ensures a proper fit and seal. Manufactured by ABB - Installation Products, this component is essential for power distribution and testing systems where high voltage integrity is paramount. Its construction prioritizes safe and efficient connection and disconnection for testing purposes, minimizing downtime and ensuring operational continuity. The direct test elbow design simplifies the process of isolating and testing sections of high-voltage cable networks.
  • Rated for 600 Amps and 35 Kilovolts
  • Accommodates cable insulation diameters from 0.980" to 1.180"
  • Includes insulated plug, cap, stud, lug, and cable adapter
  • Features an aluminum compression lug for secure termination
  • Compatible with 1/0 AWG stranded or 2/0 AWG compacted/solid conductors

Specifications

Amperage Rating
600 A
Color
Black
Conductor Range
1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
Connection
Compression
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Aluminum Lug, EPDM-Rubber Body
Special Features
Fully Shielded, Fully Submersible. Comes with Insulated Plug, Cap, Stud, Lug and Cable Adapter
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Direct Test Elbow Connector
Voltage Rating
35 kV
Width
12.23 in
Width
310.642 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS Jacket Seal Included.

376LR-J5240-S

35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS Jacket Seal Included.
35kV 600 Series Deadbreak Direct Test Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

755DLR-P0380

35kV 600 Series Deadbreak Direct Test Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.

755DLR-N0380

600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
600 Amp Straight Receptacle with Cable Adapter, Lug and Retaining Ring, with capacitive testpoint, DeadBreak, 15/25KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size kcmil, Compressed Stranded 450 or Compacted Solid 500/550.

K656SR-K5320

600 Amp Straight Receptacle with Cable Adapter, Lug and Retaining Ring, with capacitive testpoint, DeadBreak, 15/25KV, Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size kcmil, Compressed Stranded 450 or Compacted Solid 500/550.
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.

162LR-B-2240

200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.

162LR-B-2260

200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.
600 Amp, Straight Receptacle with Cable Adapter, Lug and Retaining Ring, DeadBreak, 15/25 KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 500 or Compacted Solid 600 or mmSquared Compact 250/300.

K655SR-L-0330

600 Amp, Straight Receptacle with Cable Adapter, Lug and Retaining Ring, DeadBreak, 15/25 KV, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 500 or Compacted Solid 600 or mmSquared Compact 250/300.
600 Amp Straight Receptacle with Cable Adapter, Lug and Retaining Ring, with capacitive testpoint, DeadBreak, 15/25KV, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 4/0 or kcmil Solid Compact 250 or mmSquared 126.67.

K656SR-H2270

600 Amp Straight Receptacle with Cable Adapter, Lug and Retaining Ring, with capacitive testpoint, DeadBreak, 15/25KV, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 4/0 or kcmil Solid Compact 250 or mmSquared 126.67.

Frequently Asked Questions

What is the maximum operating current for this elbow?

The ABB 755DLR-J0240 is rated for a maximum operating current of 600 Amps.

What is the voltage rating of the direct test elbow?

This direct test elbow is designed for 35 Kilovolt (35KV) applications.

What cable insulation diameters can this elbow accommodate?

The elbow is suitable for cable insulation diameters ranging from 0.980 inches to 1.180 inches.

What conductor sizes are compatible with this elbow?

It is compatible with AWG compressed stranded conductors of 1/0 or AWG compacted/solid conductors of 2/0.

What type of lug is included with this direct test elbow?

This direct test elbow comes with an aluminum compression lug.

How to Install the 755/775DLR Direct Test Elbow Connector

This guide provides step-by-step instructions for the safe and proper installation of the 755/775DLR Direct Test Elbow Connector, including cable preparation, component assembly, and grounding procedures for high voltage apparatus.

Estimated time: 1h 30m

Tools needed:

Wire strippers, Crimping tool, Torque wrench, Wire brush (for aluminum conductor)

Supplies needed:

755/775DLR Elbow Connector, Cable Adapter, Compression Lug, Insulating Plug with Cap, Lubricant, Stud Prepack, Vinyl plastic tape, Tape retainer, Tape marker, Grounding wire (No. 14 AWG copper or equivalent), Suitable grounding connector, Waterproofing material

  1. Perform Initial Safety Checks and Prepare Components

    DANGER: All apparatus must be de-energized during installation or removal of parts. Inspect all parts for damage, proper rating, and compatibility with mating parts. Check the package contents to ensure they are complete and undamaged. Have all required tools at hand and maintain cleanliness throughout the procedure.

  2. Position and Cut the Cable

    Position the cable in its final assembled location, ensuring enough slack for elbow removal. For concentric neutral cable, unwind the concentric neutral wires. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product.

  3. Clean the Cable Outer Surface

    Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent-back concentric neutral wires.

  4. Prepare the Cable Jacket and Shield

    Remove the outer jacket to 13-5/8 inches (340mm). Fold back shield wires. If using flat metallic tape shield, remove it and secure with vinyl plastic tape to 11-5/8 inches (295mm). For fabric tape shield, remove it and install a tape retainer and tape marker to 10-5/8 inches (270mm) and 11-5/8 inches (295mm) respectively. For longitudinally corrugated shield, remove it and install a tape marker flush with 11-5/8 inches (295mm). For semi-con shield, remove it and install a tape marker to 10-5/8 inches (270mm) and 11-5/8 inches (295mm), ensuring not to cut or nick the cable insulation. Refer to 10TL adapter instructions for UNISHIELD or lead sheath cables.

  5. Install the Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and then lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  6. Prepare the Conductor

    Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. Verify the exposed conductor length is between 4-5/8 inches (117mm) to 5 inches (127mm); otherwise, redo the assembly.

  7. Crimp the Compression Lug

    Fully insert the conductor into the compression lug. If using an aluminum conductor, wire brush it immediately before insertion. Measure the 'Check Dimension' before crimping (should be less than 6-7/8 inches / 175mm). Crimp the compression lug following its supplied instructions. Wipe all excess inhibitor from the lug and cable adapter. Verify the distance from the end of the lug to the cable adapter is between 6-7/8 inches to 7-5/8 inches (175mm-194mm) after crimping; otherwise, redo the assembly.

  8. Install the Elbow

    Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker. If not, reposition the cable adapter. Remove the tape marker.

  9. Prepare Mating Products

    DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Remove protective caps from the elbow and the mating part. Hand tighten the threaded stud (supplied with the elbow) into the mating part if it is not already equipped with one. Clean and lubricate both the elbow and the mating part with the supplied lubricant, keeping surfaces clean.

  10. Connect Elbow to Mating Part

    Push the elbow onto the mating part, carefully lining up the hole in the compression lug with the stud on the mating part.

  11. Connect Opposite Mating Part (if applicable)

    Clean and lubricate the mating part for the opposite end of the elbow. Insert this mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to the instructions supplied with that specific mating part.

  12. Install Insulating Plug and Cap (if applicable)

    If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap on the elbow and push down hard until it snaps into place.

  13. Ground Cable Shield and Waterproof Jacket

    Insert one end of a piece of wire (at least equivalent to No. 14 AWG copper) through the grounding eye and twist to make a small loop, ensuring not to damage the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded according to the instructions supplied with the grounding device, or via an alternate method if no device is used. It is also recommended to waterproof the cable jacket at this point to prevent moisture from entering the cable.
