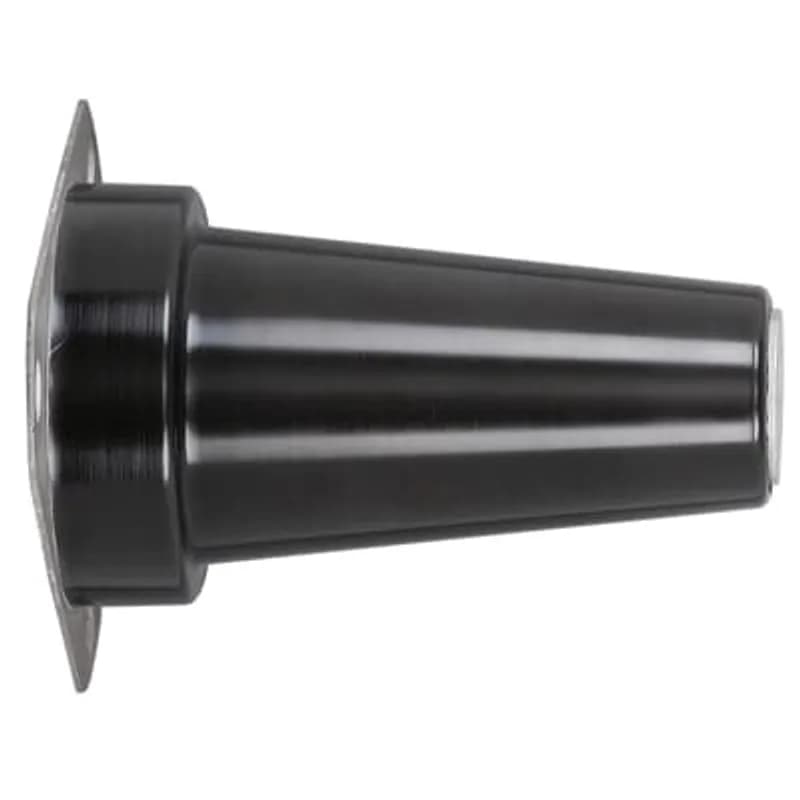

ABB - Installation Products 750LBM3 - 35kV 600 Series Deadbreak Mountable Insulated Bushing, Link Mounted

ABB Installation Products 750LBM3 35kV 600 Series Deadbreak Mountable Insulated Bushing, Link Mounted

UPC: 783786637928


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 750LBM3 is a 35kV, 600 Amp deadbreak mountable insulated bushing designed for medium-voltage power distribution systems, specifically engineered for link-mounted connections. It adheres to the ANSI/IEEE Standard 386 interface, ensuring full compatibility with standard components in medium-voltage networks. The deadbreak design allows for de-energized disconnection, significantly enhancing operational safety by reducing arc flash risks during maintenance or reconfiguration. Its insulated construction delivers high dielectric strength, critical for maintaining power distribution integrity in demanding applications such as substations, switchgear, and industrial facilities. This model is optimized for 35kV systems and supports 600 Amp deadbreak connectors and accessories, including elbows, feed-throughs, and parking stands. The link-mounted design simplifies installation and maintenance, enabling quick and secure integration into existing infrastructure while minimizing downtime. Manufactured by ABB Installation Products, the 750LBM3 is built for reliability in medium-voltage networks where dependable performance, insulation integrity, and long-term durability are essential. The product is part of ABB’s 600 Series, a line recognized for robust engineering and adherence to industry standards. SKU: 750LBM3.
  • 35kV, 600A Deadbreak rated Mountable Bushing Interface
  • Link-mounted design for de-energized connections
  • Robust insulated construction for medium-voltage applications
  • Designed for substations, switchgear, and high-reliability systems
  • High dielectric strength insulation prevents electrical breakdown

Specifications

Application
35 kV, 600 Amps
Connection Type
Deadbreak Mountable
Connection Type
Link Mounted
Current Rating
600 A
Material
Insulated
Mounting Type
Link Mounted
Series
600 Series
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Insulated Bushing
Voltage Rating
35 kV
Voltage Rating
35kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.2500 L
Package Weight (Metric)
0.5670 kg
35kv, 200 Amp Loadbreak Bushing Clamp and Gasket Kit - 3 Holes, for use on Bushing Well without Bail Tabs. Equipped with Copper Conductor Rod. Molded Epoxy Flange for Gasketed Clamp Mounting. Includes Epoxy Bushing Well, Clamp, Gasket and Instruction Sheet.

L1601PC-S2-CK3H

35kv, 200 Amp Loadbreak Bushing Clamp and Gasket Kit - 3 Holes, for use on Bushing Well without Bail Tabs. Equipped with Copper Conductor Rod. Molded Epoxy Flange for Gasketed Clamp Mounting. Includes Epoxy Bushing Well, Clamp, Gasket and Instruction Sheet.
35kV 200 Amp, Loadbreak Feed-Thru

373FT

35kV 200 Amp, Loadbreak Feed-Thru
35kV 200 Amp, Loadbreak 2-point Junction With U Straps

373J2-5

35kV 200 Amp, Loadbreak 2-point Junction With U Straps
35kV 200 Amp, Loadbreak 3-Point Junction with Stainless Steel Bracket

373J3

35kV 200 Amp, Loadbreak 3-Point Junction with Stainless Steel Bracket
35kV 200 Amp, Loadbreak 4-point Junction With U Straps, without Bracket

373J4-5

35kV 200 Amp, Loadbreak 4-point Junction With U Straps, without Bracket
35kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG and Test Point, equipped with insulated cuff. Brass Probe. Diameter 3.13 inch, Length 8.56 inch.

376DRG

35kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG and Test Point, equipped with insulated cuff. Brass Probe. Diameter 3.13 inch, Length 8.56 inch.
35kV 200 Amp, Loadbreak Insulated Parking Bushing, stand off plug.

372SOP

35kV 200 Amp, Loadbreak Insulated Parking Bushing, stand off plug.
35kV 200 Amp, Loadbreak Feed-Thru Insert, rated for single phase applications only. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.

3702-A1

35kV 200 Amp, Loadbreak Feed-Thru Insert, rated for single phase applications only. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.

Frequently Asked Questions

How do I order the 35kV, 600A insulated plug?

To order the 35kV, 600A insulated plug, you should specify "750LB".

What is included in the 750LB kit?

Each kit contains one 750LB Insulated Plug, one tube of lubricant 82-08, and installation instruction IS-0409.

What other products are compatible with the 750LB?

The 750LB works with 755LR elbows and 755BE bushing extenders. It uses a standard IEEE 386 bushing interface.

What is the momentary current rating of the 750LB?

The momentary current rating for the 750LB is 25kA Symmetrical for 10 Cycles. This indicates its short-circuit capability.

What is the maximum operating voltage for the 750LB?

The maximum phase-to-ground operating voltage for the 35kV voltage class is 21.1kV. The maximum phase-to-phase voltage is 36.6kV.

What is the 750LB insulating plug designed for?

The 750LB insulating plug is designed to provide a threaded mountable plug for use in cam-op cable joint kits. It threads onto the mounting surface.

What IEEE standard does the 750LB meet?

The 750LB insulating plug meets ANSI/IEEE Standard 386, Latest Revision. It uses a standard IEEE 386 bushing interface.

What is the continuous current rating of the 750LB?

The 750LB insulating plug has a continuous current rating of 600 Amps. It is a fully rated 35kV, 600 Amp Deadbreak Insulated Plug.

What is the impulse withstand rating (BIL) for the 750LB?

The impulse withstand (BIL) rating for the 750LB is 150kV. This is based on a 1.2 x 50 microsecond wave.

What is the AC one-minute withstand voltage?

The AC one-minute withstand voltage for the 750LB is 50kV. This is part of its 35kV voltage class ratings.

How to Install the LINK-C Deadbreak Cam Link Operable Connector System

A comprehensive guide for the safe installation and setup of the LINK-C 600 amp deadbreak cam link operable connector system, including mounting, lubrication, and grounding procedures.

Tools needed:

600ATM Operating Tool, Torque Wrench, Hot Stick, Wire Strippers

Supplies needed:

ELASTIMOLD Supplied Lubricant, Alignment Bracket Mounting Hardware, #14 AWG or #12 AWG Solid Copper Wire, Appropriate Grounding Connectors, 600 Amp Elbow, Apparatus Bushing, Epoxy Standoff Plug, 600 Amp Bushing Extender, LINK-C Deadbreak Cam Link Operable Connector, Desired 200 Amp Mating Product

  1. De-energize and Prepare for Installation

    Ensure all apparatus is de-energized before beginning installation or removal of any parts. Verify the system is de-energized using approved test apparatus. This product must only be installed by competent personnel trained in high voltage electrical equipment safety practices. Inspect all parts for damage, correct rating, and compatibility with mating components. Have all required tools and supplies at hand and maintain cleanliness throughout the procedure.

  2. Install Cable Elbow

    Install the 600 amp elbow onto the cable according to the specific installation instructions provided with the elbow. Ensure the elbow is positioned to properly align with the stand-off plug or apparatus bushing.

  3. Attach Bushing Extender

    Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender using ELASTIMOLD supplied lubricant. Install the bushing extender onto the apparatus bushing. Insert the 600ATM into the retainer contact, engage the internal hex broach, and thread the retainer contact into the apparatus bushing using a suitable tool applied to the 1-inch hex portion of the 600ATM. Torque to 50-60 ft-lbs.

  4. Connect Elbow to Standoff Plug

    Clean and thoroughly lubricate the epoxy standoff plug and both interfaces of the 600 amp elbow using ELASTIMOLD supplied lubricant. Install the elbow onto the epoxy standoff plug. Insert the 600AMT into the retainer contact, engage the internal hex broach, and thread the retainer contact into the epoxy standoff plug through the compression lug hole using a suitable tool applied to the 1-inch hex portion of the 600AMT. Torque to 50-60 ft-lbs.

  5. Mount and Secure Alignment Bracket

    Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, torquing by alternating sides until the clamp tabs are flush and tight. Then, position the elbow in the alignment bracket so the elbow cuff aligns evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with the supplied hardware, torquing by alternating sides until the clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.

  6. Connect the LINK-C Connector

    Clean and thoroughly lubricate both 600 ampere interfaces of the Link with ELASTIMOLD supplied lubricant. Align the Link so it is perpendicular to the switch faceplate when inserted into the bushing extender and elbow. Insert the Link, ensuring both lever arms are inside the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, use a hot stick to move the lever arms downward, engaging the roller pin and moving the Link inward. Continue moving lever arms until they are perpendicular to the alignment bracket leg.

  7. Complete Grounding and Mating Product Installation

    Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through the grounding eye, twisting it tight, and connecting it to ground using an appropriate connector. Clean and lubricate the 200 amp interface on the Link. Ground and then install the desired mating product on the 200 amp interface according to its specific installation instructions. Ground the cable: if using concentric neutral cable, twist the neutral wires together and connect to ground with an appropriate connector; if using 20MA or 21MA grounding devices, connect their ground lead to ground with a suitable connector. For three-phase installations, tie all grounds from all three phases to a common ground point.
