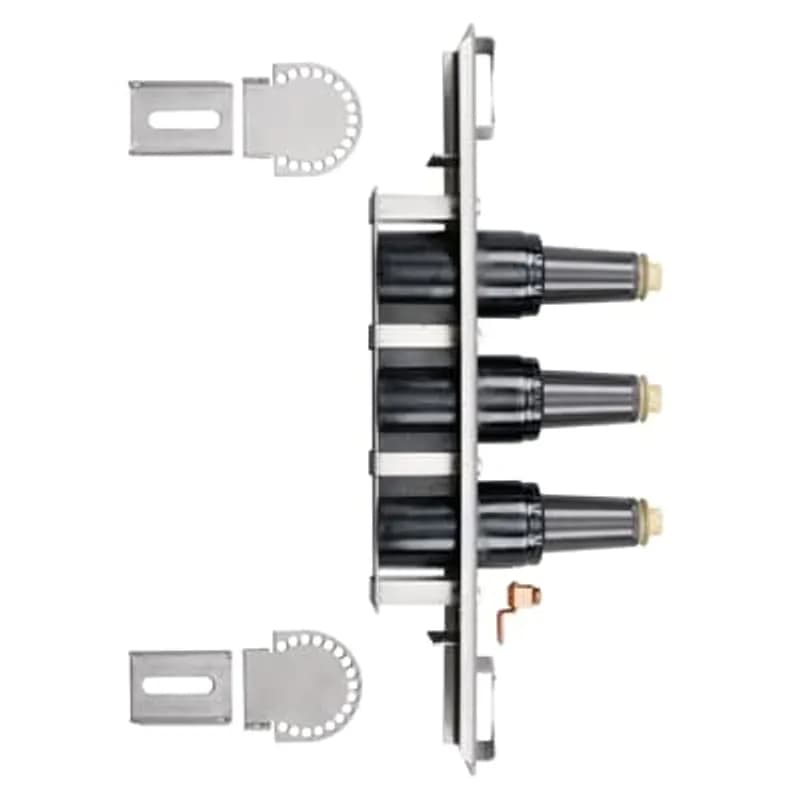

ABB Installation Products 373J3 35kV 200 Amp, Loadbreak 3-Point Junction with Stainless Steel Bracket
UPC: 783786653805
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV Voltage Rating
- 200 Amp Current Rating
- Loadbreak Connection Type
- 3-Point Junction Configuration
- Durable Stainless Steel Mounting Bracket
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Material | EPDM-Rubber with Stainless Steel Bracket |
Special Features | 35kV, 200 Amp Loadbreak 3-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Rated for 3 Phase switching. Includes black vent ring |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 3-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 17.2500 L |
Package Weight (Metric) | 7.8250 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
376DRG
35kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG and Test Point, equipped with insulated cuff. Brass Probe. Diameter 3.13 inch, Length 8.56 inch.
K1501FT
15/25kV 200 Amp, Deadbreak Feed-Thru, Bails are required, but not included, order separately. Center-to-Center spacing equals 4 inches.Frequently Asked Questions
What is the voltage rating of the 373J3?
The 373J3 is rated for 35kV operation.
What is the current rating of this junction?
The junction supports a continuous current rating of 200 Amps.
Does the 373J3 support loadbreak operations?
Yes, the 373J3 features a loadbreak design for safe connection and disconnection under load.
What material is the bracket made of?
The bracket is constructed from stainless steel for corrosion resistance.
Is the 373J3 compatible with 35kV class equipment?
Yes, the 373J3 is designed for compatibility with standard 35kV class systems.
How to Install 373 J2, J3, J4 Loadbreak Junctions
This guide provides step-by-step instructions for the safe installation and initial setup of Elastimold 373 J2, J3, J4 two-, three-, and four-point loadbreak junctions on various surfaces.
Estimated time: 1h
Tools needed:
Wrench, Marking tool, Cleaning cloth, Wire strippers
Supplies needed:
Mounting bolts (user supplied, to fit 17/32 inch or 13mm diameter holes), Grounding wire (No. 10 Solid to No. 1 Stranded), Lubricant (supplied with junction), HV insulated cap(s) (Elastimold 375DR or equivalent, if interfaces are unused)
- Perform Initial Safety Checks and Preparation
DANGER: Ensure all apparatus is de-energized during installation. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices. Inspect the package contents for completeness and damage. Check all components for proper fit with cables and mating products. Have all required tools at hand and maintain cleanliness throughout the procedure.
- Prepare and Mark Mounting Bracket Locations
Loosely attach the universal mounting brackets to the junction back plate. Place the assembled unit against the desired mounting surface (flat or curved). Adjust the brackets for proper alignment and mark their exact locations on the wall or surface.
- Mount Brackets to Wall
Detach the universal mounting brackets from the junction back plate. Securely mount the brackets to the wall or surface according to the marks made in Step 2. Ensure the brackets are firmly attached and can support the junction. Note that one or both brackets can be inverted to adjust bolt center distances.
- Attach Junction Assembly to Mounted Brackets
With the universal mounting brackets securely fastened to the wall, fasten the junction back plate (with the junction attached) to the mounted brackets. Verify that the parking stands are in the upright position before securing.
- Adjust and Secure Mounting Angle
Adjust the mounting angle of the junction to the desired position (0 to 90 degrees above or below horizontal in 15-degree increments). Once the desired angle is set, tighten all bolts securely to prevent any movement during operation.
- Ground the Back Plate
Ground the back plate of the junction. A grounding lug is provided for this purpose. Connect a grounding wire of appropriate size (No. 10 Solid to No. 1 Stranded) to this lug and ensure a secure ground connection.
- Prepare and Install Mating Products
Thoroughly wipe the bushing interface clean of any contaminants. Lubricate the bushing interface with the supplied lubricant. Install the mating products (e.g., elbow connectors) to the bushing insert, following the specific instructions provided with those mating products.
- Cap Unused Operating Interfaces
WARNING: If all operating interfaces are not utilized, an Elastimold 375DR insulated cap (or equivalent) MUST be installed on the unused interface(s) BEFORE energization. DO NOT use the protective shipping covers for this function, as they are not insulated and are only intended to keep surfaces clean during handling and installation.
