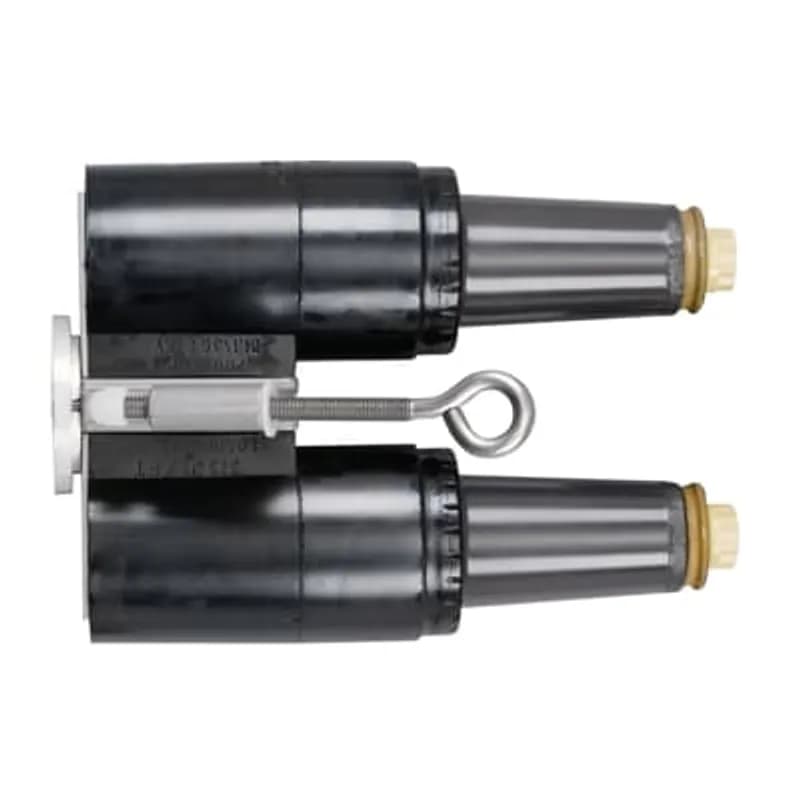

- 35kV rated voltage for medium-voltage applications
- 200 ampere continuous current rating
- Center feed design with top/bottom cable entry options
- Supports line wire #6-350MCM and load wire #8-250MCM
- UL-listed and utility-approved for safety and compliance
Specifications
Application | Fully shielded, fully submersible insulated connector designed for energized operation. It is suitable for use on 35kV class loadbreak systems |
Connection Type | Loadbreak Feed-Thru |
Current Rating | 200 A |
Material | EPDM-Rubber |
Size | 4.00 inch (101.6 mm) Center to Center, 8.41 inch (213.6 mm) long, 6.77 inch (172.1 mm) wide |
Special Features | 35kV, 200 Amp Loadbreak Rated. Uses integral parking stand mount. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Rated for 3 Phase switching. Includes black vent ring. Optional accessories allow by-pass, isolation, testing and grounding |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 2-Point Junction |
Voltage Rating | 35 kV |
Voltage Rating | 35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 7.5000 L |
Package Weight (Metric) | 3.4020 kg |
J4-6226-15
4 Point Junction, with one 200 Amp Bushing Well Interface, two 600 Amp Bushing interfaces and one 200 Amp Bushing Well Interface, 15kV, No Tilt Mounting.
Frequently Asked Questions
How can the 373FT isolate a circuit?
The 373FT can isolate and “dead-end” a circuit when used with a 375DRG/376DRG insulated cap.
What is the impulse withstand rating (BIL)?
The impulse withstand rating (BIL) is 150kV, based on a 1.2 x 50 microsecond wave.
What items are included in the 373FT kit?
Each kit contains one 373FT body, two protective shipping caps, two lubricants, and one installation instruction IS-0079.
What is the momentary and fault close rating?
The momentary and fault close rating is 10kA Symmetrical for 10 cycles.
What is the AC one-minute withstand voltage?
The AC one-minute withstand voltage rating for the 373FT is 50kV.
What is the corona extinction voltage?
The corona extinction voltage is 26kV AC at 3pC sensitivity.
What is the DC 15-minute withstand voltage?
The DC 15-minute withstand voltage rating for the 373FT is 103kV.
What is the voltage class of the 373FT?
The 373FT has a 35kV voltage class, suitable for both 1Ø and 3Ø systems.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage for the 373FT is 21.1kV.
What is the continuous and loadbreak current rating?
The 373FT has a continuous and loadbreak current rating of 200 Amps.
How to Install the 373FT Feed-Thru/Grounding Device
This guide provides step-by-step instructions for the safe installation and initial setup of the 373FT Feed-Thru/Grounding Device, primarily for use as a junction point with loadbreak connectors.
Estimated time: 1h 30m
Tools needed:
Hotstick, Screwdriver, Wire strippers, Voltage detection device (for capacitive test points), Meter capable of direct reading system voltage (if using test rod method), ELASTIMOLD 370TR Test Rod (optional, for voltage verification)
Supplies needed:
373FT Feed-Thru Body with mounting hardware, Lubricant (supplied with 373FT, DO NOT SUBSTITUTE), No. 14 copper wire (or equivalent) for ground lead, ELASTIMOLD 35kV class loadbreak connectors (elbows)
- De-energize and Inspect Apparatus
Ensure all apparatus is de-energized before beginning installation or removal of parts. Inspect all components of the 373FT Feed-Thru, mounting hardware, and mating parts for any damage, proper rating, and compatibility. Read all instructions thoroughly before proceeding. DANGER: All apparatus must be de-energized during installation or removal of part(s) except for test point caps and indicators that can be installed and operated energized. Failure to follow these instructions will result in damage to the product and serious or fatal injury.
- Install Grounding Lead
Insert a No. 14 copper wire (or equivalent) ground lead into the grounding lug provided on the mounting hardware and firmly tighten the lug. Connect the opposite end of the ground lead to a reliable ground, ensuring enough slack is left to operate the device with a hotstick. CAUTION: Keep the ground wire clear from the operating interfaces.
- Prepare Feed-Thru Bushings
Remove the protective caps from both bushings of the feed-thru. Clean the bushing surfaces thoroughly and lubricate them using ONLY the lubricant supplied with the 373FT. DO NOT SUBSTITUTE other lubricants, as they may harm the product or its mating components. WARNING: Protective caps must not be on the bushings of the feed-thru when the feed-thru is energized. Replace caps when the feed-thru is not in use to protect from dirt and other contaminants.
- Mount Feed-Thru Device onto Parking Stand
Firmly attach a hotstick to the eye of the feed-thru. Using the hotstick, slide the feed-thru onto the designated parking stand. Unlock the hotstick and back it off slightly to allow space for tightening the eyebolt. Rotate the hotstick clockwise to tighten the eyebolt until it is snug. DO NOT OVERTIGHTEN. Release the hotstick.
- Connect First Loadbreak Elbow
Remove one loadbreak elbow from its apparatus loadbreak bushing, following the applicable loadbreak operating instructions (e.g., IS-375/376LR). Firmly attach a hotstick to the elbow. Insert the probe tip of the elbow into one feed-thru bushing approximately 2 inches. Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the mating interfaces.
- Connect Second Loadbreak Elbow
Remove the second loadbreak elbow, following the applicable loadbreak operating instructions. Using a hotstick firmly attached to the elbow, insert the probe tip into the remaining feed-thru bushing approximately 2 inches. Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the mating interfaces.
