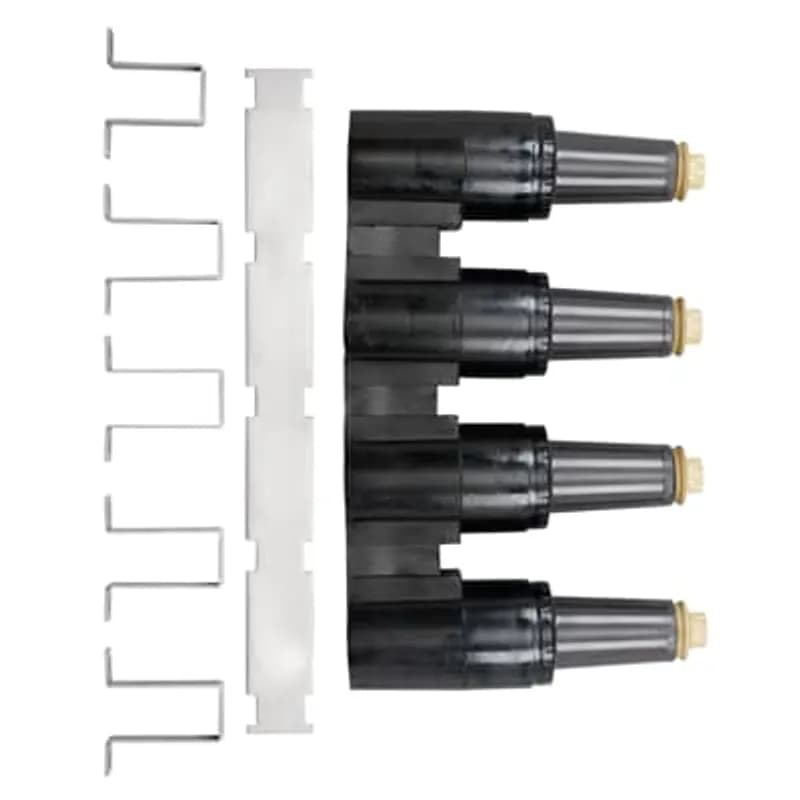

ABB Installation Products 373J4-5 35kV 200 Amp, Loadbreak 4-point Junction With U Straps, without Bracket
UPC: 783786655687
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage class with 200 Amp continuous/loadbreak rating
- Fully shielded, submersible molded rubber housing with EPDM materials
- 4-way junction for sectionalizing, looping, tapping, and bypass operations
- U-strap mounting for flat or curved surfaces without bracket
- Meets ANSI/IEEE Standard 386 with 150kV BIL impulse withstand
Specifications
Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Connection Type | Loadbreak Junction |
Current Rating | 200A |
Material | Composite |
Material | EPDM-Rubber with Stainless Steel Strap |
Mounting Type | U Straps |
Poles | 4P |
Series | 373J |
Size | 4.00 inch (101.6 mm) Center to Center, 8.37 inch (212.6 mm) High, 2.50 inch (63.5 mm) wide |
Special Features | 35kV, 200 Amp Loadbreak 4-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Rated for 3 Phase switching. Includes black vent ring |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 4-Point Junction |
Voltage Rating | 35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 14.5000 L |
Package Weight (Metric) | 6.5770 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
376DRG
35kV 200 Amp, Loadbreak Insulated Cap with Ground Lead #14 AWG and Test Point, equipped with insulated cuff. Brass Probe. Diameter 3.13 inch, Length 8.56 inch.
K1501FT
15/25kV 200 Amp, Deadbreak Feed-Thru, Bails are required, but not included, order separately. Center-to-Center spacing equals 4 inches.
150-TB-5
15/25kV, Deadbreak Elbow Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The ELASTIMOLD® 150TB5 bailing assembly kit consists of two stainless steel bail connectors, a stainless steel collar and a length of stainless steel strap. This kit was designed to secure two ELASTIMOLD® non-loadbreak elbow connectors 156LR and an ELASTIMOLD® straight plug K151SP to the ELASTIMOLD tee connector K150T. The 150TB5 minimizes any possibility of separation of the assembled tee splice mating connectors due to cable movement.Frequently Asked Questions
What is the voltage rating of the ABB 373J4-5?
The ABB 373J4-5 has a voltage rating of 35kV.
What is the current rating for this loadbreak junction?
This loadbreak junction is rated for 200 Amps.
How many poles does the 373J4-5 junction have?
The ABB 373J4-5 is a 4-point junction.
What type of connection does the 373J4-5 offer?
The 373J4-5 is a loadbreak junction.
What material is the ABB 373J4-5 junction made from?
The ABB 373J4-5 junction is constructed from composite material.
Does the 373J4-5 include a mounting bracket?
No, the ABB 373J4-5 is supplied without a bracket.
How to Install 373J4-5 Loadbreak Junctions
This guide provides step-by-step instructions for the safe installation and initial setup of 373J4-5 Four-Point Loadbreak Junctions, including mounting, grounding, and preparing bushings for operation.
Estimated time: 30m
Tools needed:
Drill, Wrench or Screwdriver
Supplies needed:
373J4-5 Loadbreak Junction with Holdown Brackets and Hardware, Shield Plate, Mounting Hardware (fasteners), Grounding lug (if mounting surface is insulating, not provided), Ground wire (14AWG minimum, if mounting surface is insulating), Silicone lubricant, Elastimold 370DR Insulated Caps (for unused 35kV class bushings, if applicable)
- Perform Pre-Installation Checks and Safety
DANGER: All apparatus must be de-energized during installation or removal of parts. Before starting, inspect all parts for damage, proper rating, and compatibility with mating parts. Verify package contents are complete and undamaged. Remove any protective shipping covers and replace them with appropriate HV insulated caps or connectors before proceeding with installation or energization.
- Prepare Mounting Surface
Determine the desired location for the junction assembly. Using the provided diagrams for the J4 model, drill the necessary mounting holes into the mounting surface. Ensure the holes are accurately placed according to the specified dimensions (e.g., 0.375 Dia. Hole, 2.500 spacing).
- Mount and Ground the Junction Assembly
Assemble the loadbreak junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembled unit to the prepared flat surface. Securely tighten all fasteners to prevent any movement during operation. CAUTION: The shield plate, hold down brackets, and black conductive rubber shield must be grounded. If the mounting surface is conductive and grounded, no additional ground is necessary. For insulating mounting surfaces, attach a grounding lug (not provided) with one of the mounting bolts and connect a minimum 14AWG ground wire from the lug to a ground bus.
- Finalize Bushing Preparation
Remove any protective caps from the bushings and thoroughly clean them. Apply silicone lubricant (DO NOT SUBSTITUTE) to the bushings before assembling with an Elastimold loadbreak connector. If any bushings are not utilized, install Elastimold 370DR insulated caps (for 35kV class) on the unused bushings before energization. Do not use the protective shipping caps for this function as they are not insulated.
