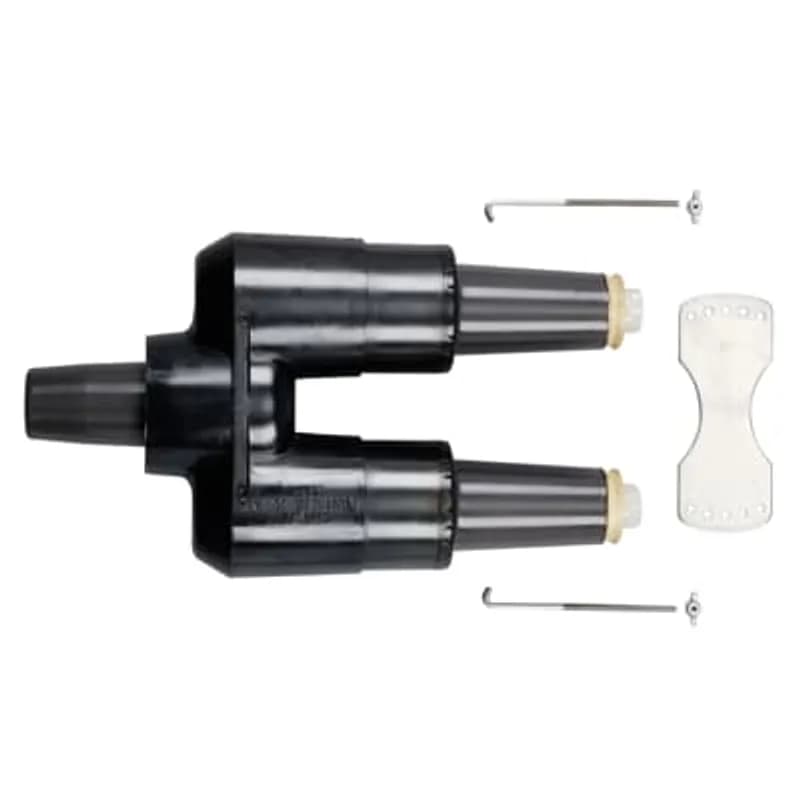

ABB Installation Products 3702-A1 35kV 200 Amp, Loadbreak Feed-Thru Insert, rated for single phase applications only.…
UPC: 783786470259
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage class, 200 Amp continuous and loadbreak rating
- Fully rotatable 360° for flexible installation and alignment
- Includes bail assembly for secure mounting to ANSI bushing wells
- Meets ANSI/IEEE Standard 386 with 150kV BIL impulse withstand
- Compatible with sub-surface transformers, switchgear, and pad-mounted transformers
Specifications
Application | Designed for use as an apparatus bushing interface and provide extra tap connection, the 3702A1 is easily installed in an Elastimold universal bushing well and mated with an appropriate Elastimold product |
Material | EPDM-Rubber |
Size | 12.00 inch (304.7 mm) long, 6.90 inch (172.7 mm) wide |
Special Features | 35kV, 200 Amp Loadbreak Rated. Transform radial feed transformer into loop-feed unit. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Rated for Single Phase switching. Black vent ring. Full 360 Degree positioning |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Feed-Thru Insert |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.6200 L |
Package Weight (Metric) | 2.5490 kg |
E943FRL
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
CCOP250
One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.
CX-4.0MPQV
Female MIXO Metal Pneumatic pin, Straight quick-fitting, with shut-off valve, For tubes with OD of 4mm
CI4004-FP3
Connector, Non-Metallic Sheathed Cable, Size 1/2 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.21 Inch to Maximum 0.42 Inch, Non-Metallic, Suggested Application 14/2-10/2, 14/3-10/3 2 Cables: 14/2-12/2, Pack of 175
CI4004-FP5
Connector, Non-Metallic Sheathed Cable, Size 1/2 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.21 Inch to Maximum 0.42 Inch, Non-Metallic, Suggested Application 14/2-10/2, 14/3-10/3 2 Cables: 14/2-12/2Frequently Asked Questions
What is the momentary and fault close rating?
The momentary and fault close rating is 10kA Symmetrical for 10 Cycles.
What is the 3702A1 product?
The 3702A1 is a 35kV 200A Loadbreak Feed-Thru Insert, 1Ø rated with two 35kV class, 200 Amp load break bushing interfaces.
What is the voltage rating of the 3702A1?
The 3702A1 has a 35kV voltage class with a maximum phase-to-ground operating voltage of 21.1kV.
What is the current rating of this feed-thru insert?
The 3702A1 is rated for 200 Amp continuous and loadbreak current, single phase.
What equipment is compatible with the 3702A1?
It can connect shielded cable to sub-surface transformers, generators, pad mounted transformers, switchgear, regulators, and reclosers.
Does the 3702A1 meet industry standards?
Yes, the 3702A1 meets ANSI/IEEE Standard 386, Latest Revision.
What is the impulse withstand rating?
The BIL Impulse Withstand rating is 150kV (1.2 x 50 microsecond wave).
What is the corona extinction voltage?
The corona extinction voltage is 26kV AC at 3pC sensitivity.
Can the 3702A1 be rotated during installation?
Yes, the 3702A1 is fully rotatable for 360° positioning.
What is included in the 3702A1 kit?
Each kit contains one bushing insert, two protective shipping caps, lubricant, installation instructions, and a bail assembly.
How to Install the 3702A1 Loadbreak Feed-Thru Insert
This guide provides step-by-step instructions for installing the 3702A1 Loadbreak Feed-Thru Insert into an apparatus bushing well, including lubrication, mounting, grounding, and preparation for mating connections. All apparatus must be de-energized during installation.
Estimated time: 45m
Tools needed:
Wire strippers
Supplies needed:
3702A1 Loadbreak feed-thru insert, Stainless steel plate, Stainless steel hook bolts, Stainless steel wing nuts, Lubricant (supplied or ELASTIMOLD approved), No. 14 AWG (2.5mm²) copper wire, Suitable connector for grounding wire, Mating electrical connectors/caps
- Verify Mounting Bolt Clearance
Inspect the apparatus bushing well to ensure mounting bolts do not protrude more than 1/2 inch (12mm) above the top. If they do, consult the apparatus manufacturer to shorten them, as excessive protrusion will prevent proper assembly of the feed-thru insert.
- Clean and Lubricate Bushing Well and Insert
Ensure the apparatus bushing well is dry and free of contaminants. Apply the supplied ELASTIMOLD approved lubricant to the bushing well, its outer surface, and the bushing well interface and cuff area of the feed-thru insert. Do not use substitute lubricants as they may be harmful.
- Install and Align Feed-Thru Insert
Carefully place the lubricated feed-thru insert into the apparatus bushing well. Rotate it clockwise until it is fully seated, but do not force it to avoid damaging threads. Utilize the 180-degree adjustment feature by rotating it counter-clockwise up to a half turn to achieve the desired alignment, stopping when a definite stop is felt.
- Assemble Hold-Down Bail
Assemble the hold-down bail. Insert hook bolt 'A' into the upper bushing well tab. Place the plate over the threaded end of bolt 'A' with detents facing upward, selecting the hole that provides the most vertical position. Secure with a wing nut. Engage hook bolt 'B' into the lower bushing well tab, swing it into the plate slot (most vertical position), and secure with its wing nut. Hand-tighten both wing nuts securely.
- Install Electrostatic Grounding Wire
Thread a No. 14 AWG (2.5mm²) copper wire through one of the grounding holes on the feed-thru insert. Form a small loop, twist tightly without damaging the conductive shield, and connect the free end to the system ground using a suitable connector. Ensure the grounding wire does not contact bushing interfaces or interfere with accessories.
- Prepare for Mating Products and Connect
If immediately connecting, remove protective shipping caps from the feed-thru insert. Thoroughly clean and lubricate the bushing interfaces with the supplied ELASTIMOLD approved lubricant. Install mating products (e.g., elbow connectors, insulated caps) according to their specific instructions. If not immediately connecting, leave shipping caps on, but do not energize or submerge the apparatus with shipping caps.
- Verify Mating Product Seating
Confirm proper seating of any installed insulated cap or elbow by ensuring no portion of the yellow band is visible when viewed from the side.
