UPC: 783786648306
Contact for Pricing
Overview
- 35kV voltage rating for medium-voltage applications
- 200 Amp current capacity for significant power flow
- Loadbreak insulated parking bushing design
- Provides safe stand-off and electrical isolation

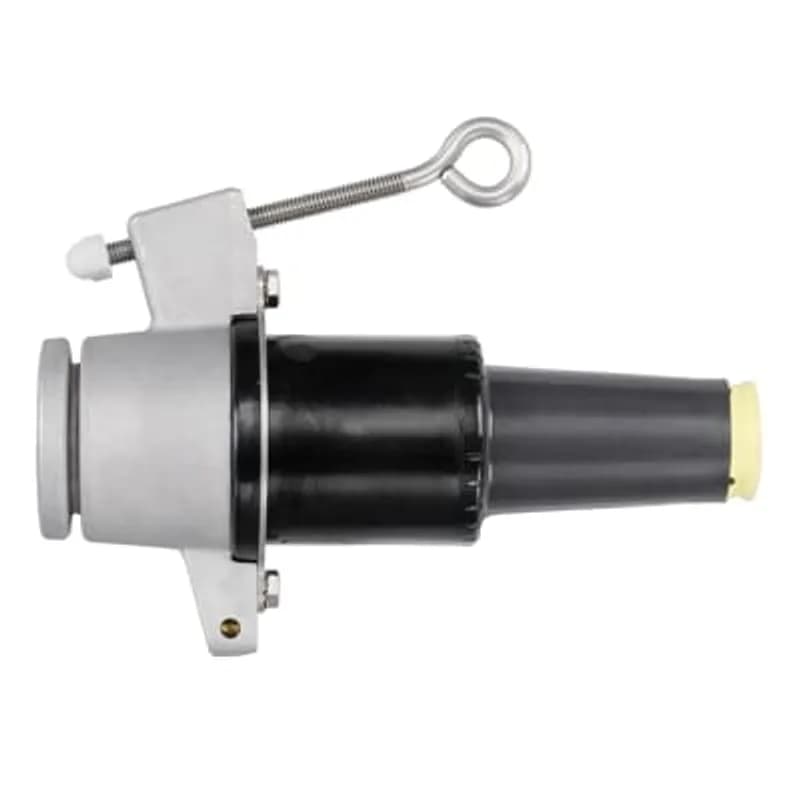

- Manufactured by ABB Installation Products (SKU 372SOP)
Specifications
Application | Equipped with a 35kV class, 200 Amp loadbreak interface, a cast aluminum bracket for insertion into a standard parking stand |
Current Rating | 200A |
Material | EPDM-Rubber |
Mounting Type | Stand Off Plug |
Size | 8.24 inch (209.3 mm) long, 3.12 inch (79.3 mm) wide |
Special Features | 35kV, 200 Amp Loadbreak Rated. Uses integral parking stand mount. Molded EPDM interface. Cast aluminum bracket with slotted end, which inserts into parking stand |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Stand Off Plug |
Voltage Rating | 35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.7700 L |
Package Weight (Metric) | 1.2570 kg |
L1601PC-S2-CK3H
35kv, 200 Amp Loadbreak Bushing Clamp and Gasket Kit - 3 Holes, for use on Bushing Well without Bail Tabs. Equipped with Copper Conductor Rod. Molded Epoxy Flange for Gasketed Clamp Mounting. Includes Epoxy Bushing Well, Clamp, Gasket and Instruction Sheet.
K1501FT
15/25kV 200 Amp, Deadbreak Feed-Thru, Bails are required, but not included, order separately. Center-to-Center spacing equals 4 inches.
150-TB-5
15/25kV, Deadbreak Elbow Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The ELASTIMOLD® 150TB5 bailing assembly kit consists of two stainless steel bail connectors, a stainless steel collar and a length of stainless steel strap. This kit was designed to secure two ELASTIMOLD® non-loadbreak elbow connectors 156LR and an ELASTIMOLD® straight plug K151SP to the ELASTIMOLD tee connector K150T. The 150TB5 minimizes any possibility of separation of the assembled tee splice mating connectors due to cable movement.
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
K151-SOP
15/25kV 200 Amp, Deadbreak Insulated Parking Bushing, stand off plug, Bails are required, but not included, order separately.
150-TB-4
15/25kV, T Connection Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The ELASTIMOLD® 150TB4 bailing assembly kit consists of three stainless steel collars and three lengths of stainless steel strap. This bailing assembly was designed to secure two ELASTIMOLD® straight receptacles K151SR and an ELASTIMOLD® straight plug K151SR and an ELASTIMOLD® tee connector K150T, or two straight receptacles K151SR to an in-line junction K150S. NOTE: For the K150S, only two of the three straps and collars are used. The 150TB4 minimizes any possibility of separation of the assemblies due to cable movement.150-TB-1
15/25kV, T-Splice Short Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB1 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to any apparatus supplied with Elastimold® 200 A dead-break bushings. This assembly provides positive hold down force on the tee splice minimizing the possibility of cable movement in the mating parts to dislodge the tee splice from the apparatus bushing.150-TB-3
15/25kV, Elbow Junction Bail Assembly Kit, Consists of Two Pieces of Flat Stainless Steel Stock (Hold-Down Bails), which are designed for connecting the Hold-Down Bails Supplied with the Elastimold Dead-Break Elbow Connector 156LR. This Kit enables the Dead-Break Elbow Connectors to be positively Secure to an Elastimold Tee Connector, K150T, or in-line junction, K150S, minimizing the possibility of being dislodged due to cable movement. Used for Assisting Cable to Transformer Connections. Non-Current Carrying. Hardware Includes (2) Eye-Bolts, (2) Bolts, (2) Plastic Nuts and (2) Bail Connector Plates.Frequently Asked Questions
What is the voltage rating of the 372SOP parking bushing?
The ABB 372SOP parking bushing has a voltage rating of 35kV.
What is the current capacity of the 372SOP loadbreak bushing?
The 372SOP loadbreak bushing is rated for 200 Amps.
Who manufactures the 372SOP insulated parking bushing?
The 372SOP insulated parking bushing is manufactured by ABB - Installation Products.
What is the primary function of the 372SOP stand-off plug?
The 372SOP stand-off plug provides a safe and insulated termination for loadbreak connectors, allowing for connection and disconnection under load.
How to Install and Operate the 372SOP Stand-Off Plug
This guide provides instructions for safely installing and operating the 372SOP Stand-Off Plug, designed to isolate and dead-end 35kV class loadbreak elbow connectors. It covers grounding, mounting, and connecting an elbow.
Estimated time: 30m
Tools needed:
Hotstick
Supplies needed:
372SOP Stand-Off Plug, Mounting hardware, Elastimold approved lubricant, Electrostatic grounding lead, Protective cap, Elastimold 35kV class loadbreak elbow connector, Parking stand
- Ensure Safety and Prepare Grounding
DANGER: Ensure all apparatus is de-energized before beginning installation. Connect the electrostatic grounding lead to the grounding lug on the 372SOP Stand-Off Plug. Connect the opposite end of the grounding lead to a reliable ground, leaving sufficient slack for hotstick operation. Remove the protective cap from the stand-off plug interface, clean it, and apply an Elastimold approved lubricant. DO NOT SUBSTITUTE other lubricants. Always replace the protective cap when the stand-off plug is not in use.
- Position Stand-Off Plug
Rotate the eyebolt counterclockwise until the nut is firmly in contact with the bracket. Attach a hotstick firmly to the eyebolt. Using the hotstick, carefully slide the 372SOP Stand-Off Plug into the designated parking stand.
- Secure Stand-Off Plug
Back off the hotstick. Rotate the eyebolt clockwise until the nut on the opposite end snugly wedges the stand-off plug to the underside of the parking stand. DO NOT OVER TIGHTEN THE BOLT, as this may cause damage.
- Connect Loadbreak Elbow (Optional)
CAUTION: Verify that the ground lead is securely connected between the stand-off plug lug and ground BEFORE assembling the elbow. Do not attempt to attach the ground lead after the elbow is assembled. If connecting an elbow, remove the ELASTIMOLD loadbreak elbow connector from its bushing (if applicable) following its specific operating instructions. Insert the male contact of the loadbreak elbow into the stand-off plug and push it home with a fast, firm, straight motion. Ensure it is firmly in place and the locking ring is seated. To return the elbow to a bushing, reverse this sequence following its LOADMAKE instructions.
- Verify Elbow Assembly
Visually inspect the assembled elbow. Complete assembly is indicated when no portion of the yellow band is visible when viewed from the side.
