Overview
- 35kV operating voltage rating
- Designed for 600 Series Deadbreak Cam-Op connectors
- Ensures precise alignment for secure connections
- Manufactured by ABB Installation Products
- Essential for high-voltage electrical infrastructure
Specifications

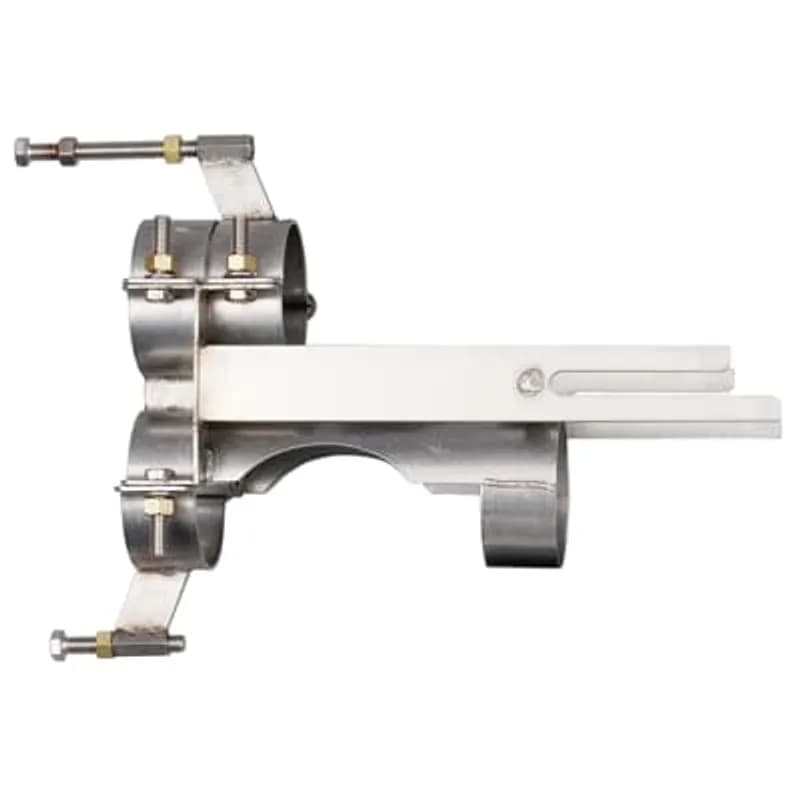

Application | The 750CAB Cam-Op alignment bracket is a stainless steel piece of hardware that fits over the 750LBM3 mountable insulated bushings. It is used to guide the insulated bushings to their mating 755LR elbows or 755BE bushing extenders. It also serves as the guide for the 750LK-C Cam-Op link allowing it to lock into place or unlock |
Material | Stainless Steel |
Mounting Type | Cam-Op Alignment |
Series | 600 Series |
Size | 4.75 inch (120.7 mm) Diameter, 7.25 inch (184.1 mm) Length |
Size | 600 Series |
Special Features | Fully rated 35kV, 600 Amp Deadbreak Cam-Op Alignment Bracket. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and circuit protection |
Standard | ANSI/IEEE Standard 386 |
Type | Alignment Bracket |
Voltage Rating | 35kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
373FT2-AB
35kV 200 Amp, Loadbreak Adjustable Bracket 2-Point Feed-Thru, with stainless steel bracket.
650VSA
15/25kV 600 Amp Series Elbow Deadbreak Connector, Vault Stretcher Threaded Stud, 2.78 inches (70.6 mm) long, 5/8 - 11 UNC-2A Thread on Both Ends.
K1601WJ3-5
15/25kV 200 Amp, loadbreak 3-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
K1601WJ2-5
15/25kV 200 Amp, loadbreak 2-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.Frequently Asked Questions
What does a 750CAB kit contain?
Each 750CAB kit contains one Cam-Op alignment bracket, part number 750CAB.
What is the primary application of the 750CAB bracket?
The 750CAB guides the link to mating 755LR elbows or 755BE bushing extenders. It also guides the 750LK-C Cam-Op link for locking or unlocking.
What components is the 750CAB compatible with?
The 750CAB fits over 750LBM3 mountable insulated bushings and guides links to 755LR elbows or 755BE bushing extenders. It also guides the 750LK-C Cam-Op link.
What are the voltage and current ratings for 750CAB?
The 750CAB is rated for 35kV and 600A applications.
What is the 750CAB product?
The 750CAB is a 35kV 600A Deadbreak Cam-Op Alignment Bracket, which is a stainless steel piece of hardware.
What is the 750CAB product?
The 750CAB is a 35kV 600A Deadbreak Cam-Op Alignment Bracket, which is a stainless steel piece of hardware.
What does a 750CAB kit contain?
Each 750CAB kit contains one Cam-Op alignment bracket, part number 750CAB.
What is the primary application of the 750CAB bracket?
The 750CAB guides the link to mating 755LR elbows or 755BE bushing extenders. It also guides the 750LK-C Cam-Op link for locking or unlocking.
What components is the 750CAB compatible with?
The 750CAB fits over 750LBM3 mountable insulated bushings and guides links to 755LR elbows or 755BE bushing extenders. It also guides the 750LK-C Cam-Op link.
What are the voltage and current ratings for 750CAB?
The 750CAB is rated for 35kV and 600A applications.
