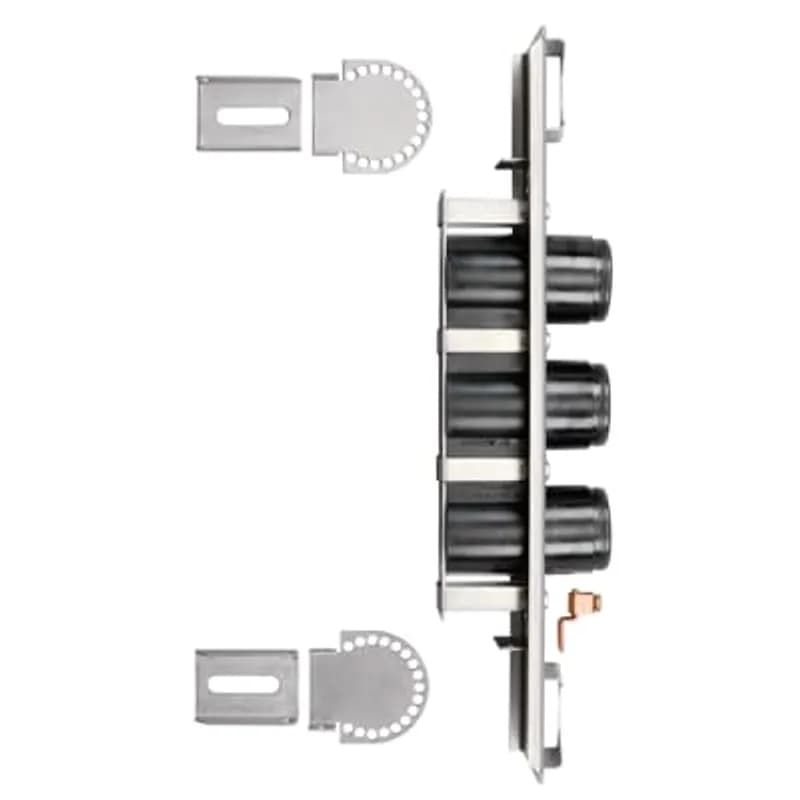

ABB Installation Products K1601WJ3 15/25 kV, 200 Amp Loadbreak, 3-Way Well Junction with Stainless Steel Bracket
UPC: 783786621958
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 200 Amp continuous and loadbreak rating
- Fully shielded, fully submersible molded rubber housing with EPDM insulation
- Meets ANSI/IEEE Standard 386 with 95-125kV BIL impulse withstand
- Compatible with Elastimold® Elbow connectors via interchangeable inserts
- Stainless steel bracket supports flat/curved mounting with 60° inclination
Specifications
Application | Fully shielded, fully submersible, separable insulated connectors designed for energized or de-energized operation. They are suitable for use on 15/25kV class systems |
Connection Type | Loadbreak |
Current Rating | 200 A |
Material | Stainless Steel |
Material | EPDM-Rubber with Stainless Steel Bracket |
Mounting Type | Stainless Steel Bracket |
Poles | 3-Way |
Size | Bracket 23.00 inches (584.2 mm) long, 5.00 inches (127.0 mm) wide, |
Special Features | 15/25kV, 200 Amp Loadbreak 3-Way Well Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors through a variety of inserts. Mounting hardware for flat or curved mounting positions |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 3-Way Well Junction |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
K1601WJ3-5
15/25kV 200 Amp, loadbreak 3-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
K1601WJ2-5
15/25kV 200 Amp, loadbreak 2-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
Frequently Asked Questions
What is the K1601WJ3 product?
The K1601WJ3 is a 15/25kV, 200 Amp Loadbreak 3-Way Well Junction with a stainless steel bracket. It features a fully shielded, fully submersible molded rubber housing.
What is the operating voltage for 25kV class systems?
For 25kV voltage class systems, the operating voltage is 15.2kV Max Phase-to-Ground and 26.3kV Max Phase-to-Phase.
Can the stud be replaced on the K1601WJ3?
Yes, the K1601WJ3 is supplied with a replaceable stud. A replacement stud is available separately by specifying catalog number 1000-150.
What other Elastimold products are compatible?
The K1601WJ3 is designed to mate with Elastimold products including 1601A4, 2701A4, 1602A3R, and 276BWP.
What is the impulse withstand rating (BIL) for 25kV?
For the 25kV voltage class, the Impulse Withstand (BIL) is 125kV. This is based on a 1.2 x 50 microsecond wave.
What is the impulse withstand rating (BIL) for 15kV?
For the 15kV voltage class, the Impulse Withstand (BIL) is 95kV. This is based on a 1.2 x 50 microsecond wave.
What is the operating voltage for 15kV class systems?
For 15kV voltage class systems, the operating voltage is 8.3kV Phase-to-Ground and 14.4kV Max Phase-to-Phase.
Is the K1601WJ3 junction submersible?
Yes, the K1601WJ3 junction features a fully shielded, fully submersible molded rubber housing.
What is the continuous current rating?
The continuous and loadbreak current rating for the K1601WJ3 junction is 200 Amps for both 15kV and 25kV voltage classes.
What are the voltage classes for this junction?
The K1601WJ3 junction is suitable for use on both 15kV and 25kV class systems.
How to Install the K1601WJ3 Loadbreak Well Junction
This guide provides step-by-step instructions for mounting and preparing the K1601WJ3 Loadbreak Well Junction for operation. Ensure all safety precautions are followed during installation.
Estimated time: 1h 30m
Tools needed:
Screwdriver, Wire strippers
Supplies needed:
Mounting bolts (user-supplied, 17/32" or 13mm diameter), Grounding wire (No. 10 Solid to No. 1 Stranded), Lubricant (supplied), Elastimold insulated caps or plugs (if applicable), Bushings (not included)
- Prepare for Installation and Mark Mounting Locations
DANGER: De-energize all apparatus before starting installation. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices. Inspect the package contents to confirm all parts are present and undamaged. Loosely attach the universal mounting brackets to the junction base bracket. Position the assembly against the desired mounting surface (flat or curved) and adjust for proper alignment. Mark the exact locations for the mounting brackets on the wall.
- Mount the Universal Brackets
Detach the universal mounting brackets from the junction base bracket. Securely mount the brackets on the wall using user-supplied bolts (17/32” or 13mm diameter) at the marked locations. If needed, invert one or both brackets to achieve the correct bolt center distance.
- Fasten and Adjust the Junction Assembly
With the universal mounting brackets firmly in place, fasten the junction's base bracket to them, ensuring the parking stands are upright. Adjust the junction's mounting angle to your desired position, which can be 0° to 90° above or below horizontal in 15° increments. Securely tighten all bolts to prevent any movement of the junction during operation.
- Ground the Base Bracket
Connect a grounding wire (No. 10 Solid to No. 1 Stranded) to the provided grounding lug on the base bracket. Ensure a secure and proper ground connection.
- Prepare and Install Bushings
Remove any protective caps from the bushing wells and inspect them for dryness and contaminants. Lubricate the well interface area using only the supplied lubricant or an Elastimold approved lubricant. Do not use substitute lubricants. Install the appropriate bushings into the wells, strictly following their individual installation instructions.
- Final Safety Check Before Energization
Remove any remaining protective shipping caps from all operating interfaces and clean them thoroughly. Apply silicone lubricant (DO NOT SUBSTITUTE) to all operating interfaces before connecting any other ELASTIMOLD product. WARNING: Any unused operating interfaces MUST be fitted with an Elastimold insulated cap or insulated plug BEFORE energization. Protective shipping covers are not insulated and must NOT be used for this purpose.
