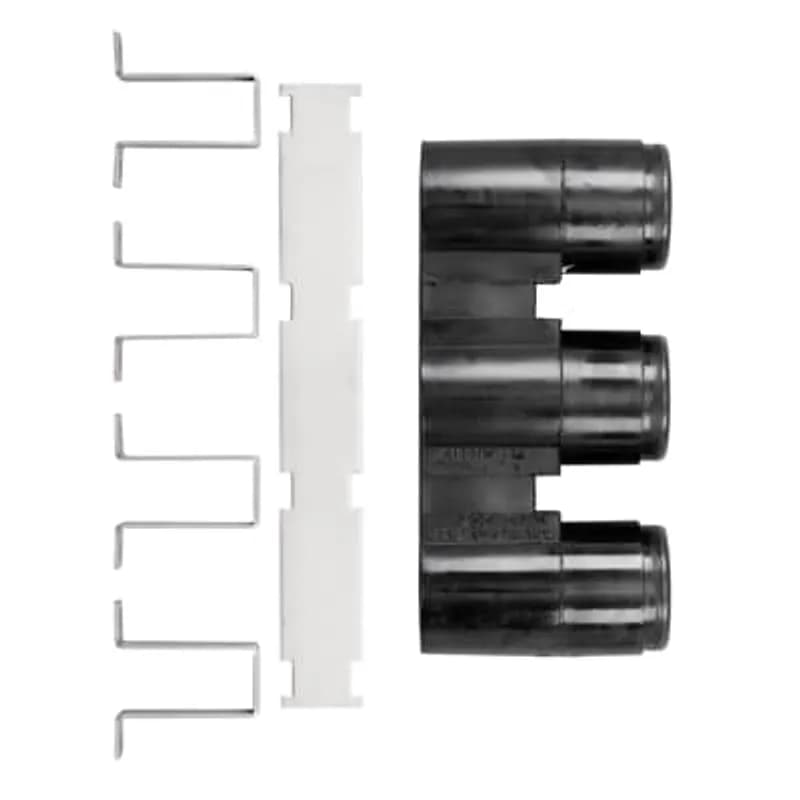

ABB - Installation Products K1601WJ3-5 - 15/25kV 200 Amp, loadbreak 3-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.

ABB Installation Products K1601WJ3-5 15/25kV 200 Amp, loadbreak 3-way Well Junction with U Straps, Hardware package consists…

UPC: 783786633333


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB 15/25kV 200 Amp loadbreak 3-way well junction, SKU K1601WJ3-5, is designed for reliable power distribution in medium-voltage applications. It facilitates efficient loadbreak connections, allowing for the safe switching of circuits under load. The unit features a 3-way configuration, enabling the connection of multiple circuits from a single junction point. The included hardware package specifically consists of U straps and a back plate, ensuring a secure and stable installation. This junction is rated for 15/25kV and 200 Amp continuous current, making it suitable for utility, industrial, and commercial power systems. Its loadbreak capability is a key feature for operational flexibility and maintenance safety, allowing operators to de-energize specific sections of the network without interrupting power to other areas. The robust construction, typical of ABB Installation Products, ensures longevity and dependable performance in demanding electrical environments. Key specifications include: * Voltage Rating: 15/25kV * Current Rating: 200 Amp * Configuration: 3-way loadbreak * Included Hardware: U Straps and back plate This well junction is a critical component for managing medium-voltage power distribution networks, offering a practical solution for circuit branching and load management. Its UNSPSC code is 26121630.
  • 15/25kV voltage rating for medium-voltage applications
  • 200 Amp continuous current capacity
  • 3-way loadbreak configuration for circuit management
  • Includes U straps and back plate hardware for installation
  • Manufactured by ABB - Installation Products

Specifications

Application
Fully shielded, fully submersible, separable insulated connectors designed for energized or de-energized operation. They are suitable for use on 15/25kV class systems
Current Rating
200 A
Material
EPDM-Rubber with Stainless Steel Bracket
Poles
3-Way
Size
4.00 inch (101.6 mm) Center to Center
Special Features
15/25kV, 200 Amp Loadbreak 3-Way Well Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors through a variety of inserts. U-Straps for installation
Standard
ANSI/IEEE 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
3-Way Well Junction
Voltage Rating
15/25kV
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.

150-TB-2

15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
HMI door mounting kit with 15M cable

181B2258

HMI door mounting kit with 15M cable
Sealing Cap, Black, Thermoplastic, AMP CPC

208652-1

Sealing Cap, Black, Thermoplastic, AMP CPC
15/25kV 200 Amp, loadbreak 2-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.

K1601WJ2-5

15/25kV 200 Amp, loadbreak 2-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
15/25 kV, 200 Amp Loadbreak, 4-Way Well Junction with Stainless Steel Bracket

K1601WJ4

15/25 kV, 200 Amp Loadbreak, 4-Way Well Junction with Stainless Steel Bracket
15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Bracket, Vertical

K1601WFTV

15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Bracket, Vertical
15/25kV 200 Amp, loadbreak 4-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.

K1601WJ4-5

15/25kV 200 Amp, loadbreak 4-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
35kV 200 Amp, Loadbreak Bushing Well Plug, Includes Lubricant and Instructions. EPDM Peroxide Insulation. Does Not have the following: Ground Cable, Rivet, Bail Assembly, Spring Plunger or Wiper.

M276BWP

35kV 200 Amp, Loadbreak Bushing Well Plug, Includes Lubricant and Instructions. EPDM Peroxide Insulation. Does Not have the following: Ground Cable, Rivet, Bail Assembly, Spring Plunger or Wiper.

Frequently Asked Questions

What are the key specifications of the K1601WJ3-5 junction?

The K1601WJ3-5 is a 15/25kV, 200 Amp Loadbreak 3-Way Well Junction. It features a fully shielded, fully submersible molded rubber housing.

What is the continuous and loadbreak current rating?

The continuous and loadbreak current rating for the K1601WJ3-5 junction is 200 Amp for both 15kV and 25kV classes.

What is the impulse withstand rating for the 25kV class?

For the 25kV voltage class, the impulse withstand (BIL) is 125kV (1.2 x 50 microsecond wave).

What is the momentary and fault close rating?

The momentary and fault close rating for the junction is 10kA Symmetrical for 10 Cycles, applicable to both 15kV and 25kV classes.

How do I order the K1601WJ3-5 junction?

To order, specify K1601WJ3-5 for the 15/25kV, 200 Amp, 3-way Loadbreak Junction.

What is the impulse withstand rating for the 15kV class?

For the 15kV voltage class, the impulse withstand (BIL) is 95kV (1.2 x 50 microsecond wave).

What is the operating voltage for the 25kV class?

For the 25kV voltage class, the maximum phase-to-ground operating voltage is 15.2kV, with a maximum phase-to-phase of 26.3kV.

What is the operating voltage for the 15kV class?

For the 15kV voltage class, the operating voltage is 8.3kV Phase-to-Ground, with a maximum phase-to-phase of 14.4kV.

What industry standard does the K1601WJ3-5 junction meet?

The K1601WJ3-5 junction meets ANSI/IEEE Standard 386, Latest Revision.

How is the K1601WJ3-5 junction mounted?

Junctions are supplied with U-straps and two back plates for either front surface or back surface mounting.

How to Install the K1601WJ3-5 Well Junction

This guide provides step-by-step instructions for safely installing the K1601WJ3-5 Two-, Three-, or Four-Point Well Junction, including mounting, grounding, and preparing for operation.

Estimated time: 45m

Tools needed:

Drill, Measuring tape, Screwdriver or wrench, Wire strippers

Supplies needed:

Mounting hardware (supplied), Grounding lug (if needed, not supplied), Ground wire (14AWG minimum, if needed, not supplied), Silicone lubricant (do not substitute), Elastimold insulated caps or plugs (if unused interfaces, not supplied)

  1. Perform Pre-Installation Checks and Safety Precautions

    DANGER: Ensure all apparatus is de-energized before beginning installation or removal of any parts. Inspect all components for damage, proper rating, and compatibility with mating parts. Confirm all package contents are complete and undamaged. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices.

  2. Determine Mounting Location and Drill Holes

    Select the desired location for the well junction assembly on a flat mounting surface. Using the provided dimensions (4.000 x 2.000 for J2, 4.000 x 2.500 for J3, 4.000 x 3.000 for J4), mark and drill the necessary .375 inch diameter mounting holes.

  3. Assemble and Secure the Well Junction

    Assemble the well junction, shield plate, and hold down brackets using the supplied fasteners. Attach the entire assembly to the prepared flat mounting surface. Tighten all fasteners securely to prevent any movement during operation.

  4. Ground the Well Junction Assembly

    CAUTION: The shield plate, hold down brackets, and black conductive rubber shield must be properly grounded. If the mounting surface is conductive and already grounded, no additional ground is necessary. For insulating mounting surfaces, attach a grounding lug (not provided) with one of the mounting bolts and connect a ground wire (14AWG minimum, not provided) from the lug to a ground bus.

  5. Prepare Operating Interfaces

    Remove any protective shipping caps from the operating interfaces. Thoroughly clean the operating interfaces to ensure optimal performance. Apply silicone lubricant (DO NOT SUBSTITUTE) to the interfaces before assembling with any Elastimold product.

  6. Install Insulated Caps or Plugs on Unused Interfaces

    WARNING: If any operating interfaces are not utilized, an Elastimold insulated cap or insulated plug MUST be installed on each unused interface before energizing the circuit. Do NOT use the protective shipping covers for this function, as they are not insulated and are only intended to keep surfaces clean during handling and installation.
