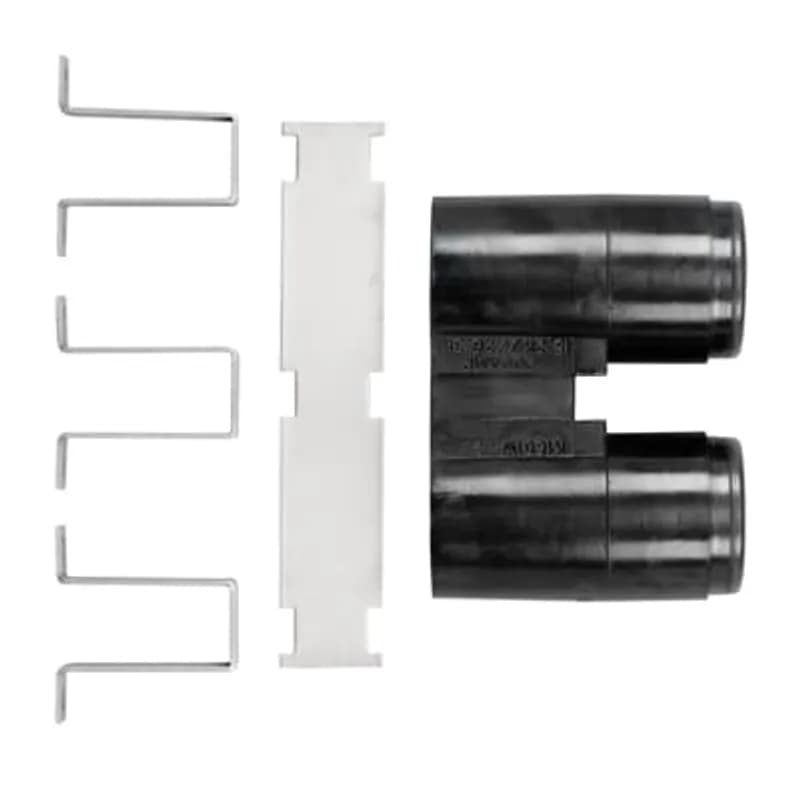

ABB Installation Products K1601WJ2-5 15/25kV 200 Amp, loadbreak 2-way Well Junction with U Straps, Hardware package consists…
UPC: 783786634866
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Rated for 15/25kV systems with 200 Amp continuous current
- Loadbreak design allows safe connection/disconnection under load
- 2-way configuration for splitting or combining circuits
- Includes U straps and back plate for secure mounting
- Suitable for underground well applications in utility vaults
Specifications
Application | 15/25 kV, 200 Amps |
Current Rating | 200 A |
Poles | 2-Way |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Well Junction 2-Way |
Voltage Rating | 15/25kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.6500 L |
Package Weight (Metric) | 1.2020 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
K1601WJ4-5
15/25kV 200 Amp, loadbreak 4-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
M276BWP
35kV 200 Amp, Loadbreak Bushing Well Plug, Includes Lubricant and Instructions. EPDM Peroxide Insulation. Does Not have the following: Ground Cable, Rivet, Bail Assembly, Spring Plunger or Wiper.Frequently Asked Questions
What is the product's primary function?
The K1601WJ2-5 is a 15/25kV, 200 Amp Loadbreak 2-Way Well Junction. It is a fully shielded, fully submersible separable insulated connector.
Is the junction suitable for submersible applications?
Yes, the junction features a fully shielded, fully submersible molded rubber housing.
What is the momentary and fault close current rating?
The momentary and fault close current rating for both 15kV and 25kV voltage classes is 10kA Sym for 10 Cycles.
What is included in the K1601WJ2-5 kit?
The kit includes one basic molded junction (K1601WJ2-4), mounting hardware (K1601WJ2-5), a tube of lubricant (82-08), and installation instructions (IS-0443).
Are replacement parts available for the stud?
Yes, the product is supplied with a replaceable stud, and a replacement stud (specify 1000-150) is available separately.
How is the junction mounted?
Junctions are supplied with U-straps and two back plates for front surface or back surface mounting.
What other Elastimold products are compatible?
It is designed to mate with Elastimold products including 1601A4, 2701A4, 1602A3R, and 276BWP.
What standard does this product meet?
The product meets ANSI/IEEE Standard 386, Latest Revision.
What is the impulse withstand voltage (BIL)?
The impulse withstand (BIL) is 95kV for the 15kV class and 125kV for the 25kV class.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating for both 15kV and 25kV voltage classes is 200 Amp.
How to Install the K1601WJ2-5 Two--, Three--, and Four--Point Well Junctions
Installation guide for mounting and wiring the K1601WJ2-5 well junctions. These junctions are used for sectionalizing, looping, tapping, or apparatus change out.
Estimated time: 45m
Tools needed:
Drill, Screwdriver, Wire strippers
Supplies needed:
Mounting hardware, Grounding lug (if mounting surface is insulating), 14 AWG minimum ground wire, Silicone lubricant
- Determine location and drill mounting holes
Select the desired location for the junction assembly. Drill holes in the mounting surface according to the dimensions provided in the documentation. Ensure the holes are the correct diameter for mounting.
- Assemble and mount the well junction
Assemble the well junction, shield plate, and hold down brackets using the supplied fasteners. Attach the assembly to the flat mounting surface. Tighten all fasteners securely to prevent movement during operation.
- Ground the assembly
Ensure the shield plate, hold down brackets, and black conductive rubber shield are properly grounded. If the mounting surface is conductive and grounded, no additional grounding is needed. If the mounting surface is insulating, attach a grounding lug (not provided) with one of the mounting bolts and connect a 14 AWG minimum ground wire to the lug and a ground bus.
- Prepare for operation
Remove any protective shipping caps from the operating interfaces and clean them. Apply silicone lubricant (do not substitute) to the operating interfaces before assembly with an ELASTIMOLD product. If not all operating interfaces will be utilized, install an ELASTIMOLD insulated cap or insulated plug on the unused interface(s) before energization. Do not use the protective shipping covers for this purpose.
