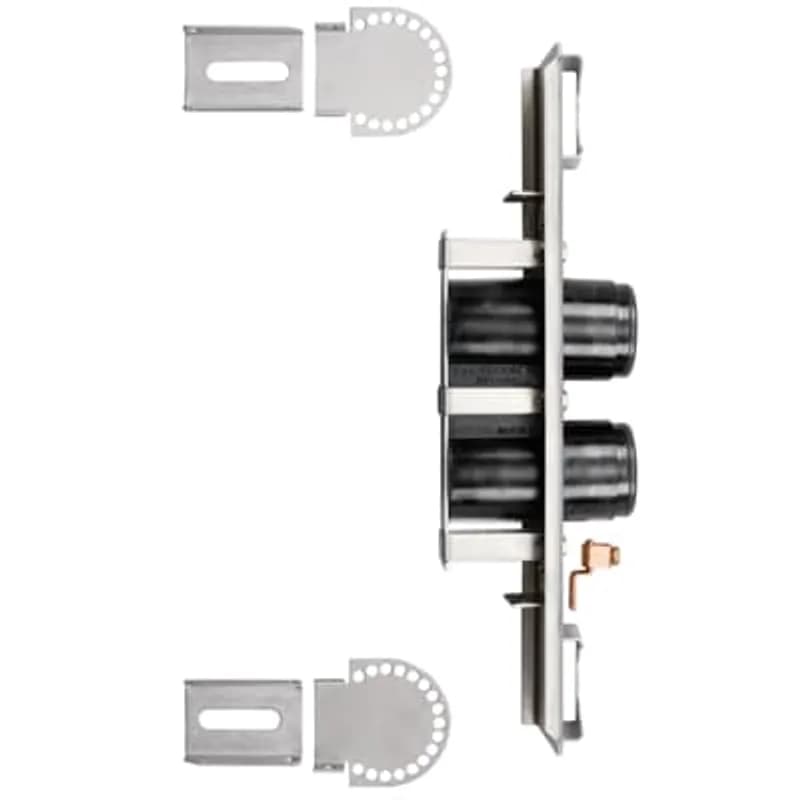

ABB - Installation Products K1601WJ2 15/25 kV, 200 Amp Loadbreak, 2-Way Well Junction with Stainless Steel Bracket
UPC: 783786361328
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage class with 200 Amp continuous/loadbreak rating
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured EPDM construction for durability
- Compatible with Elastimold® Elbow connectors (1601A4, 2701A4, etc.)
- Stainless steel bracket with 60° inclination for curved/flat mounting
Specifications
Application | Fully shielded, fully submersible, separable insulated connectors designed for energized or de-energized operation. They are suitable for use on 15/25kV class systems |
Connection Type | Loadbreak |
Current Rating | 200 A |
Material | Stainless Steel |
Material | EPDM-Rubber with Stainless Steel Bracket |
Mounting Type | Stainless Steel Bracket |
Poles | 2-Way |
Size | Bracket 19.00 inches (482.6 mm) long, 5.00 inches (127.0 mm) wide, |
Special Features | 15/25kV, 200 Amp Loadbreak 2-Way Well Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors through a variety of inserts. Mounting hardware for flat or curved mounting positions |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 2-Point Well Junction |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.6500 L |
Package Weight (Metric) | 1.2020 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
K1601WJ3-5
15/25kV 200 Amp, loadbreak 3-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
K1601WJ2-5
15/25kV 200 Amp, loadbreak 2-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
Frequently Asked Questions
What is included in the K1601WJ2 kit?
Each kit contains one basic molded junction (K1601WJ2-4), mounting hardware (K1601WJ2-6), a tube of lubricant (82-08), and installation instructions (IS-0491).
Can the stud be replaced on K1601WJ2?
Yes, the K1601WJ2 is supplied with a replaceable stud. A replacement stud is available separately by specifying 1000-150.
What products are compatible with K1601WJ2?
The K1601WJ2 is designed to mate with Elastimold® products including 1601A4, 2701A4, 1602A3R, and 276BWP.
Is the K1601WJ2 submersible?
Yes, the K1601WJ2 features a fully shielded, fully submersible molded rubber housing.
What standards does the K1601WJ2 meet?
The K1601WJ2 meets ANSI/IEEE Standard 386, Latest Revision.
What is the continuous current rating?
The continuous and loadbreak current rating for the K1601WJ2 is 200 Amps for both 15kV and 25kV voltage classes.
What voltage classes does K1601WJ2 support?
The K1601WJ2 is suitable for use on 15kV and 25kV class systems.
What is the K1601WJ2 product?
The K1601WJ2 is a 15/25kV, 200 Amp Loadbreak 2-Way Well Junction with a stainless steel bracket. It has a fully shielded, fully submersible molded rubber housing.
What voltage classes does K1601WJ2 support?
The K1601WJ2 is suitable for use on 15kV and 25kV class systems.
Can the stud be replaced on K1601WJ2?
Yes, the K1601WJ2 is supplied with a replaceable stud. A replacement stud is available separately by specifying 1000-150.
How to Install K1601WJ2, K1601WJ3, or K1601WJ4 Loadbreak Well Junctions
This guide provides step-by-step instructions for mounting and preparing the K1601WJ2, K1601WJ3, or K1601WJ4 Loadbreak Well Junctions for operation, including bracket installation and bushing preparation.
Estimated time: 1h
Tools needed:
Wrench/Socket Set, Wire Strippers, Marking Tool
Supplies needed:
Mounting bolts (user-supplied, 17/32" diameter), Grounding wire (No. 10 Solid to No. 1 Stranded), Lubricant (supplied), HV insulated cap(s) or connector(s) (if needed), Bushings (not included)
- Prepare for Installation and Mark Mounting Locations
Safety Warning: Ensure all apparatus is de-energized before starting installation. Loosely attach the universal mounting brackets to the junction base bracket. Place the assembled junction and brackets against the desired mounting surface (flat or curved). Adjust the brackets for proper alignment and mark their exact location on the wall.
- Mount Universal Brackets to the Wall
Detach the universal mounting brackets from the junction base bracket. Mount the brackets securely on the wall using user-supplied bolts (17/32" or 13mm diameter) according to the marks made in the previous step. Ensure the brackets are firmly attached.
- Attach Junction to Brackets and Adjust Angle
Fasten the junction's base bracket to the securely mounted universal brackets, ensuring the parking stands are in the upright position. Adjust the junction's mounting angle to the desired position (0° to 90° above or below horizontal in 15° increments). Securely tighten all bolts to prevent any movement during operation.
- Ground the Junction Base Bracket
Connect a grounding wire (No. 10 Solid to No. 1 Stranded) to the provided grounding lug on the base bracket. Ensure the grounding connection is secure and properly installed.
- Prepare Bushing Wells and Install Bushings
Remove any protective caps from the bushing wells. Inspect the bushing wells to ensure they are dry and free from all contaminants. Lubricate the well interface area using only the supplied lubricant or Elastimold approved lubricants. Do not substitute. Install the appropriate bushings into the wells, following the specific installation instructions provided with the bushings. Warning: If any operating interfaces remain unused, install an Elastimold insulated cap or insulated plug on them before energizing the circuit. Do not use shipping covers for this purpose.
