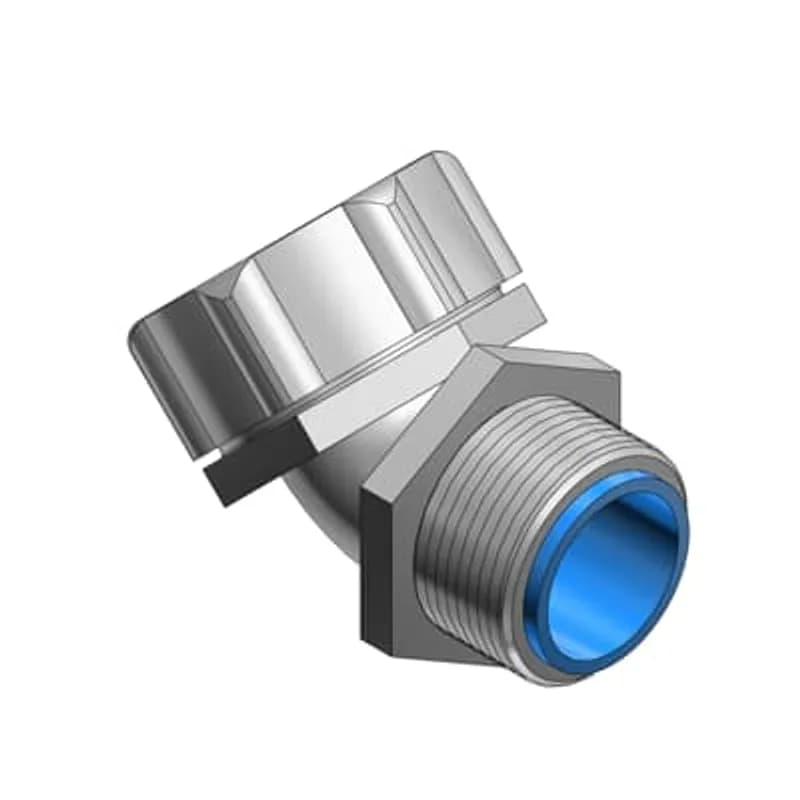

ABB - Installation Products 7345 - 1 Inch 45 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 29

ABB Installation Products 7345 1 Inch 45 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate…

UPC: 786210073453


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products 7345 is a 1¼-inch, 45-degree angle steel insulated liquidtight connector designed for use with liquidtight flexible metal conduit in industrial and hazardous locations. This connector features a metric PG 29 thread size, optimized for compatibility with 1¼-inch flexible conduit, and is constructed from durable steel with a zinc-plated chromate finish for exceptional corrosion resistance in harsh environments, including outdoor, marine, and industrial settings. The 45-degree angled design allows for smooth bends without compromising conduit integrity, making it ideal for installations where space constraints or complex layouts demand precise conduit positioning. The integrated nylon insulator and sealing ring provide an additional layer of electrical protection, safeguarding conductors from moisture ingress and mechanical stress. Key specifications include dimensions of 44 mm (A), 47 mm (B), and 19 mm (C), and the connector includes a gland nut, ground cone, body, and locknut for easy installation and secure fastening. This connector is suitable for use in hazardous locations where general-purpose equipment is permitted by the NEC, including Class I Div. 2, Class II Div. 1 & 2, and Class III Div. 1 & 2. The ABB 7345 is a practical choice for electricians and maintenance professionals seeking dependable conduit fittings that balance performance, safety, and ease of use in critical applications such as manufacturing plants, processing facilities, or commercial buildings.
  • 1¼-inch 45-degree angle design for efficient conduit routing
  • Metric PG 29 thread size for compatibility with 1¼-inch flexible conduit
  • Steel construction with zinc-plated chromate finish for corrosion resistance
  • Integrated nylon insulator and sealing ring for electrical protection
  • Suitable for hazardous locations: Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2
  • Dimensions: 44 mm (A) x 47 mm (B) x 19 mm (C)
  • Includes gland nut, ground cone, body, and locknut for secure installation

Specifications

Application
Nylon Insulated 45D Angle Fittings
Material
Steel
Material
Nylon Insulated
Material
Steel with zinc-plated chromate finish
Series
ABB 7345
Size
1 Inch
Size
1¼ inch
Special Features
CSA Certified Dusttight and Watertight. UL Listed Liquidtight
Standard
CSA, UL E23018
Type
Liquidtight Flexible Metal Conduit Fittings
Package Dimensions (L x W x H)
6 IN x 4.5 IN x 3 IN
Package Dimensions (L x W x H)
15.24 cm x 11.43 cm x 7.62 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey

LN43DA

1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
Connector, Liquid Tight, 45 Degree, US Steel, Size 3-1/2 Inch, Insulated Throat

458-SLTIUS

Connector, Liquid Tight, 45 Degree, US Steel, Size 3-1/2 Inch, Insulated Throat
2 Inch 45 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 48

7348-TB

2 Inch 45 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 48
2 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 48

7358

2 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 48
1/2 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 16

7363

1/2 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 16
1-1/2 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 42

7357

1-1/2 Inch 90 Degree Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 42
3/8 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 11

7361

3/8 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 11
5/16 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 9

7360

5/16 Inch Steel Insulated Liquidtight Connector With PG Thread and Chromate Finish, Thread Size 9

Frequently Asked Questions

What are the available trade sizes for these fittings?

The fittings are available in trade sizes from 3/8 inches to 6 inches (12mm to 153mm).

Are these fittings suitable for hazardous locations?

Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.

Do these fittings offer vibration resistance?

Yes, they feature tempered cast locknuts with teeth for vibration resistance.

What is required for ingress protection ratings?

Achieving the ingress ratings requires the use of Series 5260 Seal Gaskets.

What is the purpose of the heat curled insulators?

Thermoplastic nylon heat curled insulators are designed to protect wire sheathing from damage.

Are the seal rings and insulators halogen free?

Yes, the seal rings, insulators, and seal gaskets are halogen free.

What materials are used for the fittings?

Trade sizes 3/8 inches to 1-1/4 inches are steel with a Zinc Chromate finish, while 1-1/2 inches to 6 inches are malleable iron with a Zinc Chromate finish.

What are the ingress protection ratings?

The fittings have UL Type 3, 3R, 4, 12, 13 ratings (indoor/outdoor) and IEC IP66, IP67 ratings. These ratings apply to trade sizes from 3/8 inches to 4 inches.

What is the operating temperature range for the fittings?

The general working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.

What is the maximum voltage rating for these fittings?

These fittings are suitable for use in electrical circuits up to 1,000 V.

How to Install T&B Liquidtight Connectors

This guide provides step-by-step instructions for properly installing T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability in accordance with electrical codes.

Estimated time: 30m

Tools needed:

Hacksaw (32 Tooth/ln. blade), Power band saw (optional, for high production), Smooth jaw wrench, Torque wrench

Supplies needed:

T&B Liquidtight flexible metallic conduit, T&B Liquidtight connector, T&B 140 series locknuts (for knockout applications), 5260 series sealing gaskets (for knockout applications), Locknut (for 7000 and 9000 series), PVC cement (optional)

  1. Review Safety and Disconnect Power

    Before beginning installation, read and understand all instructions and safety information. Be aware of proper usage and potential hazards. WARNING: Risk of shock, disconnect power before installation. CAUTION: Product should be installed by a qualified electrician in accordance with national and local electrical codes. Wear hand protection and eye protection throughout the process.

  2. Prepare Conduit End

    Cut the flexible conduit with a clean, square end. Use a metal jig (if available), a sharp hacksaw with a 32 Tooth/ln. blade, or for high production, a power band saw with a 24-32 Tooth/ln. wavy set (operating at no more than 400 feet per minute). Do not use an abrasive wheel for cutting.

  3. Assemble Connector

    For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, first slide the gland nut onto the conduit. Next, slide on the nylon sealing ring. Then, thread in the Safe Edge™ Cone. For PVC coated connectors, tighten the assembly using a smooth jaw wrench to prevent gouging. If metal is exposed due to gouging, apply PVC cement.

  4. Mount Connector to Box or Knockout

    Insert the assembled connector body into the knockout box or enclosure. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchased separately). For 7000 and 9000 series, ensure the appropriate locknut is used (ordered separately). For 'Space Saver' Chase® connector assemblies, secure the connection by tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.

  5. Tighten Locknut to Specification

    Using a torque wrench, securely tighten the locknut to the connector body according to the specified torque values. Apply 200 lb.-in. for 3/8" fittings, 300 lb.-in. for 1/2", 500 lb.-in. for 3/4", 700 lb.-in. for 1", 1000 lb.-in. for 1 1/4", 1200 lb.-in. for 1 1/2", and 1600 lb.-in. for 2" through 4" fittings.
