UPC: 786210053592
Contact for Pricing

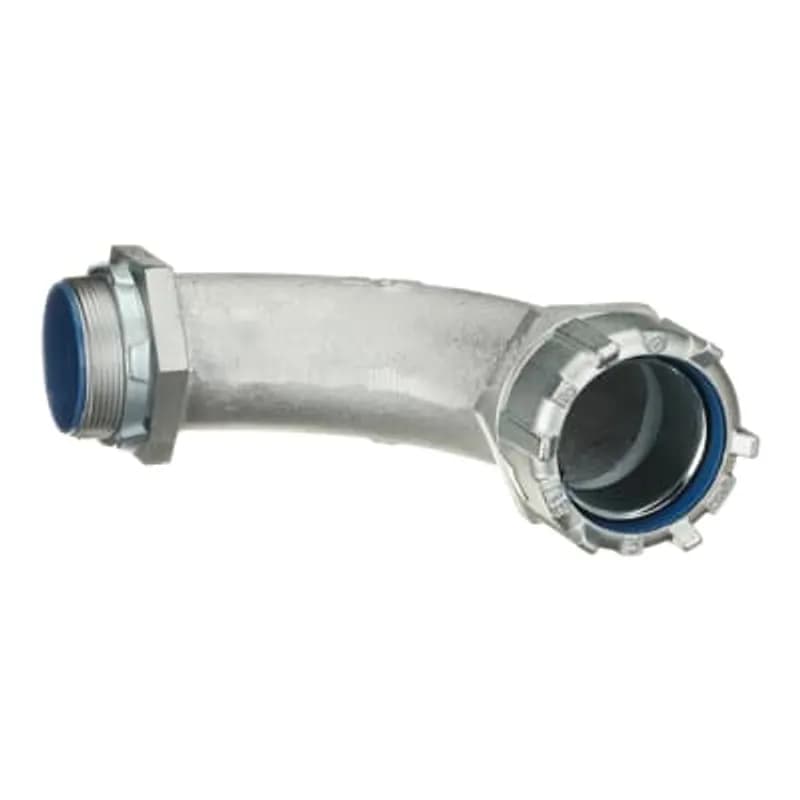

Overview
- 3-inch diameter for 3-inch conduit
- 90-degree elbow configuration for efficient routing
- Malleable iron construction for durability
- Insulated design for enhanced electrical safety
- Liquidtight rating protects against moisture and dust
Specifications
Application | Used Where Flexible Metal Raceway is Installed in Outdoor or Indoor Locations Where Exposed to Continuous or Intermittent Moisture |
Finish | Electro Zinc Plated/Chromate Coating |
Material | Malleable Iron |
Size | 3 Inch |
Standard | UL E23018, CSA |
Type | Connectors-90 Degree |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 12.8700 L |
Package Weight (Metric) | 5.8380 kg |
5368
2-1/2 Inch Straight Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating
5372
1/2 Inch 90 Degree Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating5371
3/8 Inch 90 Degree Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc PlatingFrequently Asked Questions
Where can these fittings be used?
They are used in outdoor or indoor locations exposed to continuous or intermittent moisture, and for liquid-tight applications against water, oils, cutting fluids, and mild acids.
What are the available trade sizes for these fittings?
The fittings are available in trade sizes from 3/8 inch to 6 inches (12mm to 153mm).
What is the maximum voltage rating for these fittings?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What is the operating temperature range for the fittings?
The general working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
What types of hazardous locations are these fittings suitable for?
They are suitable for Class I Division 2, Class II Division 1 & 2, and Class III Hazardous locations per NEC® and CE Code.
What materials are used for the fittings?
Trade sizes 3/8 inch to 1 1/4 inches are steel with zinc chromate finish, while 1 1/2 inches to 6 inches are malleable iron with zinc chromate finish.
What ingress protection ratings do these fittings have?
They have UL Type 3, 3R, 4, 6, 12, 13 ratings, CSA Type 3, 3R, 4, 12, 13, NEMA Type 3, 3R, 4, 6, 12, 13, and IEC IP66, IP67, IP68, IP69 ratings.
Are these fittings halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
What are the available fitting body configurations?
The fittings are available in straight, 45°, and 90° body configurations with NPT threads.
Do these fittings come in insulated and non-insulated versions?
Yes, both insulated and non-insulated versions of the fittings are available.
How to Install T&B Liquidtight Connectors (5000 Series)
This guide provides step-by-step instructions for the proper installation of T&B liquidtight connectors, ensuring high performance and reliability for flexible metallic conduit applications.
Estimated time: 30m
Tools needed:
Hacksaw (32 Tooth/ln. no. set) or power band saw (24-32 Tooth/ln. wavy set), Metal jig (optional, for cutting conduit), Smooth jaw wrench, Torque wrench, Hand protection, Eye protection
Supplies needed:
Liquidtight flexible metal conduit, T&B Liquidtight connector (e.g., 5359 series), T&B 140 series locknuts (for knockout applications, purchase separately), T&B 5260 series sealing gaskets (for knockout applications, purchase separately), PVC cement (optional, for PVC coated connectors)
- Ensure Safety Precautions
WARNING: Disconnect all power before beginning installation to prevent risk of electrical shock. CAUTION: This product should be installed by a qualified electrician in accordance with national and local electrical codes. Wear hand protection and eye protection throughout the installation process.
- Prepare the Flexible Conduit
Cut the liquidtight flexible metal conduit with a clean, square end. Use a metal jig, a sharp hacksaw with a 32 Tooth/ln. no. set, or a power band saw with a 24-32 Tooth/ln. wavy set (not more than 400’/minute). Do not use an abrasive wheel.
- Assemble Connector Components onto Conduit
For 5000, 7000, and 9000 series connectors, first slide the gland nut onto the cut end of the conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone onto the conduit. For PVC coated connectors, use a smooth jaw wrench for tightening; if gouging occurs exposing metal, PVC cement is recommended.
- Secure Conduit to Connector Body
Insert the prepared conduit end (with gland nut, sealing ring, and Safe Edge™ Cone) into the connector body. Tighten the gland nut to the connector body. Refer to the torque table for the correct tightening torque based on the fitting's trade size (e.g., 3/8" = 200 lb.-in., 1/2" = 300 lb.-in., 3/4" = 500 lb.-in., 1" = 700 lb.-in., 1 1/4" = 1000 lb.-in., 1 1/2" = 1200 lb.-in., 2"-4" = 1600 lb.-in.).
- Mount Connector to Knockout Box
Insert the connector body through the knockout hole in the box wall. Secure the connector by threading the locknut onto the connector body from the inside of the box. For knockout applications, T&B 140 series locknuts and 5260 series sealing gaskets are recommended (purchase separately). Ensure the 'O' ring (if present, e.g., 5371 series) is correctly positioned on the outside of the box.
