UPC: 786210053684
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Overview

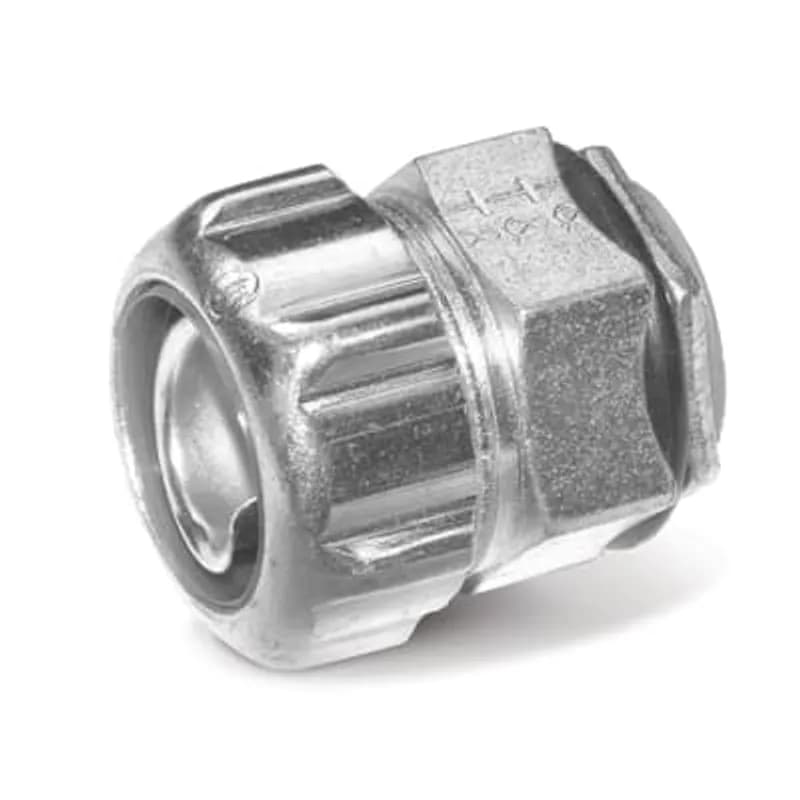

- 2-1/2 inch straight malleable iron construction for high strength and durability
- Electro-zinc plating provides corrosion resistance in harsh environments
- Insulated design prevents electrical conductivity through conduit system
- Compatible with liquidtight conduit for watertight, dustproof connections
- Straight configuration simplifies installation and conduit routing
Specifications
Material | Malleable Iron - Insulated |
Size | 2-1/2 Inch |
Special Features | UL Listed Liquidtight and CSA Certified Watertight |
Standard | CSA, UL E23018 |
Type | Liquidtight Flexible Metal Conduit Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.0200 L |
Package Weight (Metric) | 1.8240 kg |
5372
1/2 Inch 90 Degree Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating5371
3/8 Inch 90 Degree Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating5373
3/4 Inch 90 Degree Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating
Frequently Asked Questions
What is the installation requirement for these fittings?
The product must be installed in accordance with applicable national and local electrical codes.
What standards do these fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, and Federal Specifications A-A 50552 and H-28.
Are the fittings Halogen Free?
Yes, the seal rings, insulators, and seal gaskets are Halogen Free.
What ingress protection ratings do these fittings have?
They have UL Type 3, 3R, 4, 6, 12, 13 ratings, CSA Type 3, 3R, 4, 12, 13, NEMA Type 3, 3R, 4, 6, 12, 13, and IEC IP66, IP67, IP68, IP69 ratings.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for Class I Division 2, Class II Division 1 & 2 Hazardous Locations per NEC® Section 500 and various Zone classifications per CE Code.
What is the maximum voltage for electrical circuits?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What types of fittings are available?
The product offers straight, 45°, and 90° fitting bodies with NPT threads, available in both insulated and non-insulated versions.
What are the available trade sizes?
The fittings are available in trade sizes from 3/8 inches to 6 inches (12mm to 153mm).
What is the operating temperature range?
The general working temperature range is -20 to +105°C (-4 to +221°F) for UL and CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
What is the installation requirement for these fittings?
The product must be installed in accordance with applicable national and local electrical codes.
How to Install T&B Liquidtight Connectors (5000 Series)
This guide provides step-by-step instructions for properly installing T&B liquidtight flexible metallic conduit connectors, ensuring high performance and reliability. Always disconnect power before installation and wear appropriate personal protective equipment.
Estimated time: 30m
Tools needed:
Hacksaw, Torque wrench, Smooth jaw wrench, Hand protection, Eye protection
Supplies needed:
Liquidtight flexible metallic conduit, T&B Liquidtight connector (e.g., 5368 series), T&B 140 series locknut (if not included or for knockout applications), T&B 5260 series sealing gasket (for knockout applications), PVC cement (optional, for PVC coated connectors)
- Prepare the Flexible Conduit
Wear hand and eye protection. Cut the flexible conduit with a clean, square end. Use a metal jig, a sharp hacksaw (32 Tooth/ln.), or a power band saw (24-32 Tooth/ln. wavy set, not more than 400’/minute). Do not use an abrasive wheel for cutting.
- Assemble Connector Components
For 5000, 7000, and 9000 series connectors, first slide the gland nut onto the conduit, followed by the nylon sealing ring. Then, thread the Safe Edge™ Cone onto the conduit end. For PVC coated connectors, use a smooth jaw wrench for tightening to prevent gouging. If gouging occurs exposing metal, PVC cement is recommended.
- Secure Connector to Enclosure
WARNING: Risk of shock, disconnect power before installation. CAUTION: Product should be installed by a qualified electrician in accordance with national and local electrical codes. Insert the connector body through the knockout from the outside of the box. For knockout applications, use a T&B 140 series locknut and 5260 series sealing gasket (if applicable, purchased separately). Position the locknut on the inside of the box wall. Tighten the locknut to the connector body according to the torque table provided in the documentation (e.g., 200 lb.-in. for 3/8", 300 lb.-in. for 1/2"). Ensure the 'O' ring (for 5365-5370 series) is correctly positioned on the outside of the box.
