UPC: 786210053745
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview
- Durable malleable iron construction for robust protection.
- 90-degree angle for efficient conduit routing.
- Liquidtight design seals against moisture and contaminants.
- Integrated insulation protects conductors.
- Electro-zinc plating provides corrosion resistance.
Specifications
Finish | Electro Zinc Plating |
Material | Malleable Iron |
Size | 1 Inch |
Standard | UL E23018, CSA |
Type | Chase Connectors-90 degree |
Package Dimensions (L x W x H) | 6.3 IN x 3.3 IN x 4.9 IN |
Package Dimensions (L x W x H) | 16.002 cm x 8.382 cm x 12.446 cm |
Package Weight (Imperial) | 0.6000 L |
Package Weight (Metric) | 0.2720 kg |
5373

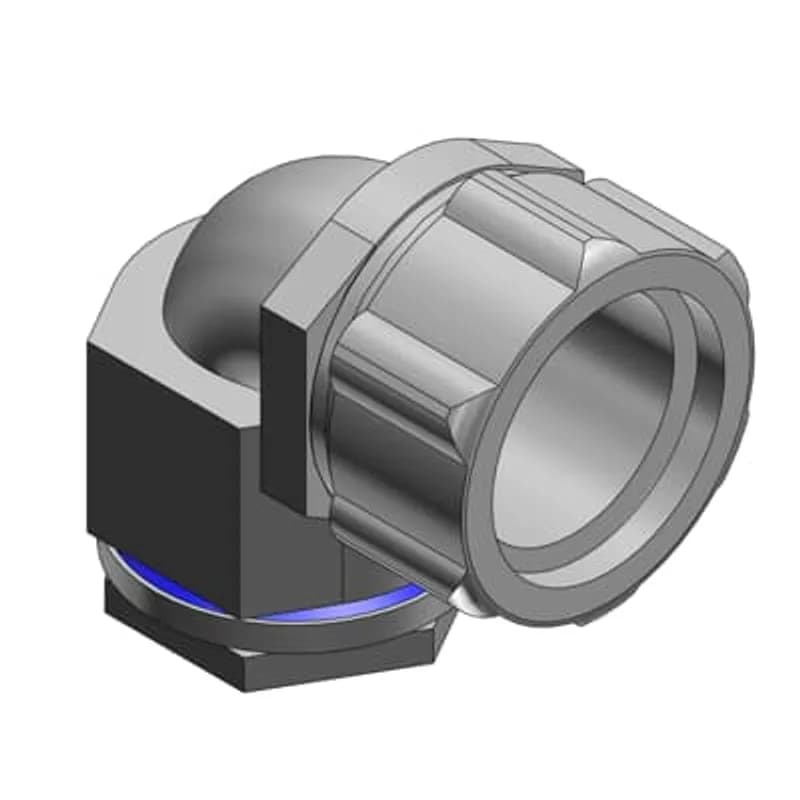

3/4 Inch 90 Degree Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating
035-72735-2
Retaining Ring for Straight Strain Relief Cord Connector Outer Diameter Diameter 0.83, Inner Diameter 0.58Frequently Asked Questions
What is the impact resistance rating?
The fittings meet IEC/EN 61386-1, -23 standard requirements for impact resistance, rated as Code 3 Medium; 6 Joules.
How do these fittings ensure a tight seal?
A Double Bevel Sealing Ring eases assembly and helps ensure seal tight performance.
What is the purpose of the heat curled insulators?
The heat curled insulators are designed to protect wire sheathing from damage.
Do these fittings come in insulated versions?
Yes, both insulated and non-insulated versions of the fittings are available.
What standards do these fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and Federal Specification H-28.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for Class I Division 2, Class II Division 1 & 2, and Class III Hazardous locations per NEC® Section 500 and CE Code.
What materials are used for the fittings?
Trade sizes 3/8 inch to 1 1/4 inches are steel with Zinc Chromate finish, while 1 1/2 inches to 6 inches are malleable iron with Zinc Chromate finish.
What ingress protection ratings do these fittings have?
They have UL Type 3, 3R, 4, 6, 12, 13; CSA Type 3, 3R, 4, 12, 13; NEMA Type 3, 3R, 4, 6, 12, 13; and IEC IP66, IP67, IP68, IP69 ratings.
What types of fitting bodies are available?
The fittings are available in straight, 45°, and 90° body types, all with NPT threads.
How to Install T&B 5374 Series Liquidtight Connectors
This guide provides step-by-step instructions for the proper installation of T&B 5374 series liquidtight connectors for flexible metallic conduit, ensuring a secure and reliable connection.
Estimated time: 15m
Tools needed:
Hacksaw (32 Tooth/ln. no. set, sharp), Power band saw (24-32 Tooth/ln. wavy set, not more than 400’/minute), Metal jig (optional, for cutting conduit), Smooth jaw wrench (for PVC coated connectors)
Supplies needed:
Liquidtight flexible metal conduit, T&B® 140 series locknuts (for knockout applications, purchase separately), T&B® 5260 series sealing gaskets (for knockout applications, purchase separately), PVC cement (if needed for PVC coated connectors), Hand protection, Eye protection
- Prepare for Installation and Ensure Safety
Before beginning, read and understand all instructions and safety information. Disconnect all power to the circuit where the connector will be installed to prevent risk of shock. Ensure installation is performed by a qualified electrician in accordance with national and local electrical codes. Wear appropriate hand and eye protection throughout the process.
- Cut the Flexible Conduit
Cut the flexible conduit with a clean, square end. For best results, use a metal jig, a sharp hacksaw with a 32 Tooth/ln. no. set, or a power band saw with a 24-32 Tooth/ln. wavy set operating at no more than 400 feet per minute. Do not use an abrasive wheel for cutting.
- Assemble Connector Components onto the Conduit
For 5000, 7000, and 9000 series (including 5374 series) and PVC coated 3300 series connectors, slide the gland nut onto the cut end of the flexible conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone onto the conduit, ensuring it is properly seated.
- Secure the Connector Body to the Knockout Box
Insert the connector body through the knockout hole in the box wall. For knockout applications, use a T&B® 140 series locknut and a T&B® 5260 series sealing gasket (both purchased separately) on the inside of the box. Securely tighten the locknut onto the connector body to the specified torque for your fitting size (e.g., 200 lb-in for 3/8" fitting, 300 lb-in for 1/2" fitting). Refer to the provided torque table for exact values.
- Tighten the Gland Nut for a Liquidtight Seal
Once the connector body is securely attached to the box, firmly tighten the gland nut onto the connector body. This action compresses the sealing ring and cone, creating a liquidtight seal around the flexible conduit. For PVC coated connectors, use a smooth jaw wrench to avoid gouging; if metal is exposed, apply PVC cement.
