Overview

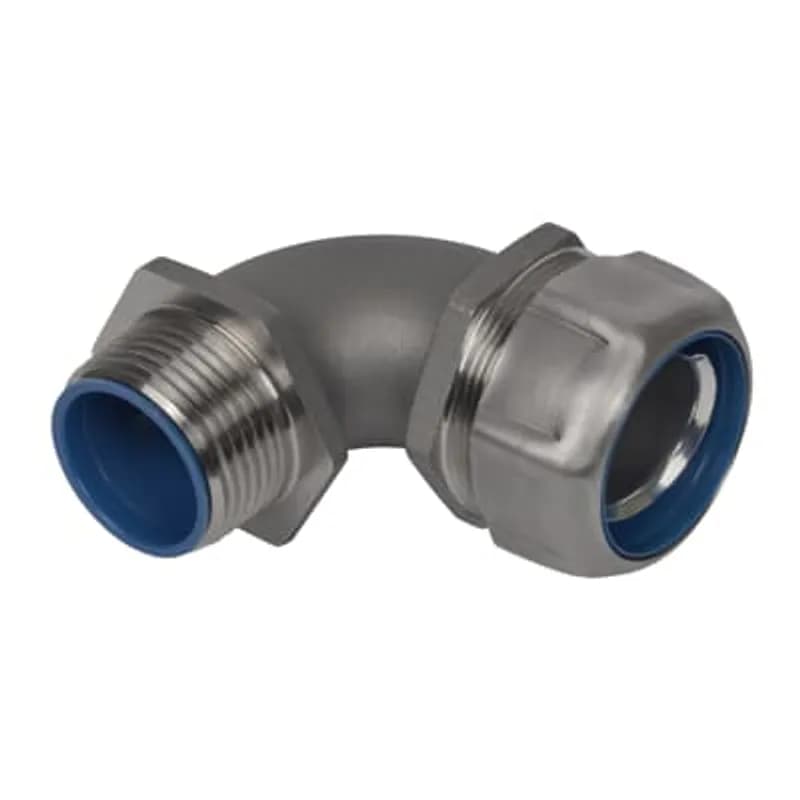

- 1-1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit
- 90 Degree Elbow Configuration
- Constructed from 316 Stainless Steel with Duraplated Ground Cone
- High UV Resistance and NEMA 3, 3R, 4, 4X Ratings
- UL/CSA Listed for reliable performance
Specifications
Application | Connects Flexible Metallic Liquidtight Conduit to a Box or Enclosure |
Color | Metallic |
Declaration of Conformity - CE | 9AKK107492A9904 |
Finish | None |
Insulation | True |
Material | 316 Stainless Steel |
Material | 316 Stainless Steel with Duraplated Ground Cone |
NEMA Rating | 3, 3R, 4, 4X |
NEMA Rating | 3;3R;4;4X |
Size | 1-1/2 Inch |
Special Features | Stronger and More UV-resistant than Nonmetallic Fittings |
Standard | UL E23018, CSA |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Type | 90 Degree Fitting for Flexible Metallic Conduit |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.4700 L |
Package Weight (Metric) | 0.6670 kg |
9355SST6-6
Liguid-tight 90 Degree Fitting, Trade Size 1-1/4 Inch, M40 Thread, 316 Stainless Steel Body and Ground Cone5355SST6
1-1/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, 90 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 4.06 Inches/103.12mm, Width 2.25 Inches/57.15mm, Height 3.48 Inches/88.39mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5357SST6
2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 90 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 5.51 Inches/139.95mm, Width 3.05 Inches/77.47mm, Height 4.75 Inches/120.65mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5354SST6
1 Inch Liquidtight Fitting for Flexible Metallic Conduit, 90 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 3.32 Inches/84.33mm, Width 1.87 Inches/47.50mm, Height 2.95 Inches/74.93mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone
5346SST6HT
1-1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 4.34 Inches/110.24mm, Width 2.56 Inches/65.02mm, Height 3.21 Inches/81.53mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5353SST6
3/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, 90 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.60 Inches/66.04mm, Width 1.64 Inches/41.66mm, Height 2.58 Inches/65.53mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5347SST6HT
2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 45 Degree, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 5.00 Inches/127.00mm, Width 3.05 Inches/77.47mm, Height 3.85 Inches/97.76mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5352SST6
1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, 90 Degree, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.35 Inches/59.69mm, Width 1.33 Inches/33.78mm, Height 2.25 Inches/57.15mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground ConeFrequently Asked Questions
What is the temperature range for the ABB 5356SST6 fitting?
The fitting can operate in a temperature range of 0 to 105 degrees Celsius.
Is this fitting suitable for corrosive environments?
Yes, the 316 stainless steel construction provides excellent resistance to corrosion, making it suitable for corrosive environments.
What type of conduit does this fitting connect to?
This fitting is designed for flexible metallic conduit.
What material is the ABB 5356SST6 fitting made from?
The ABB 5356SST6 fitting is constructed from 316 stainless steel with a Duraplated ground cone.
What are the NEMA ratings for this liquidtight fitting?
This fitting has NEMA ratings of 3, 3R, 4, and 4X, indicating protection against various environmental conditions.
How to Install the 5356SST6 Liquid-tight Flexible Metallic Conduit Fitting
This guide provides step-by-step instructions for assembling and installing the 5356SST6 stainless steel liquid-tight fitting for flexible metallic conduit, ensuring a secure and liquid-tight connection for 1-1/2 inch NPT applications.
Estimated time: 15m
Tools needed:
Hacksaw (32 Tooth/In.), Metal jig (optional), Hammer, Standard screwdriver, Torque wrench
Supplies needed:
5356SST6 Liquid-tight Flexible Metallic Conduit Fitting, Liquid-tight flexible metal conduit (1-1/2 inch), Locknut (LNSS/150 for 1-1/2" NPT), Seal Gasket (5266 for 1-1/2" NPT)
- Prepare the Flexible Conduit
Cut the end of the flexible conduit with a clean, square cut. Use a metal jig and a 32 tooth/inch hacksaw, or a power band saw (24-32 tooth/inch, not exceeding 400 ft/min). DO NOT USE AN ABRASIVE WHEEL, as this can damage the conduit.
- Assemble Fitting Components onto Conduit
First, slide the gland nut (part 128B) onto the cut end of the flexible metal conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the SAFE-EDGE® ground cone onto the conduit end, ensuring it is properly seated.
- Install Fitting into Box Wall
Insert the assembled fitting into the desired knockout opening in the box wall. From inside the box, place the seal gasket (Part No. 5266 for 1-1/2" NPT) over the fitting threads. Secure the fitting with the locknut (Part No. LNSS/150 for 1-1/2" NPT). Hand-tighten the locknut, then further tighten it 1/4 turn with a hammer and a standard screwdriver or an equivalent method, as per UL, CSA & NEMA recommendations.
- Tighten the Gland Nut
Tighten the gland nut (part 128B) to the UL recommended torque value to secure the conduit within the fitting and ensure a liquid-tight seal. For a 1-1/2" NPT fitting (53x6SST6), the recommended tightening torque is 1200 lb-in (136 N-m).
