Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Overview
- Type 316 stainless steel construction resists corrosion in harsh environments
- UL/CSA listed with NEMA ratings 3, 3R, 4, and 4X for superior protection
- Operating temperature range from 0°C to 105°C for extreme condition performance
- Duraplated ground cone ensures reliable electrical continuity and grounding
- High UV resistance for long-term outdoor durability
Specifications
Application | Connects Flexible Metallic Liquidtight Conduit to a Box or Enclosure |
Color | Metallic |
Declaration of Conformity - CE | 9AKK107492A9904 |
Finish | None |
Insulation | True |
Material | 316 Stainless Steel |
Material | 316 Stainless Steel with Duraplated Ground Cone |
Nema Rating | Type 3, 3R, 4, 4X |
NEMA Rating | 3;3R;4;4X |
Size | 1 Inch |
Special Features | Stronger and More UV-resistant than Nonmetallic Fittings |
Standard | UL E23018, CSA |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Type | Straight Fitting for Flexible Metallic Conduit |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.4100 L |
Package Weight (Metric) | 0.1860 kg |
9355SST6-6
Liguid-tight 90 Degree Fitting, Trade Size 1-1/4 Inch, M40 Thread, 316 Stainless Steel Body and Ground Cone5331SST6HT

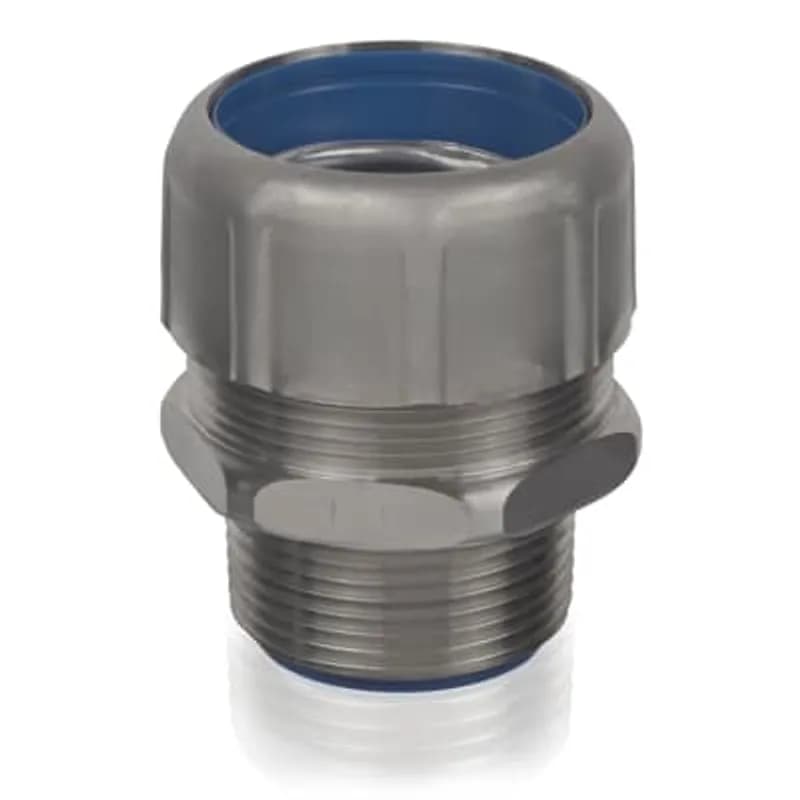

3/8 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 1.64 Inches/41.66mm, Width 1.14 Inches/28.96mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone
5337SST6
2 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, UL/CSA Listed, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.80 Inches/71.12mm, Width 3.05 Inches/77.47mm, Temperature Range 0 to 105 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5333SST6HT
3/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 1.75 Inches/44.45mm, Width 1.64 Inches/41.66mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5334SST6HT
1 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.19 Inches/65.63mm, Width 1.87 Inches/47.50mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5336SST6HT
1-1/2 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.68 Inches/68.07mm, Width 2.56 Inches/65.02mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5337SST6HT
2 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.80 Inches/71.12mm, Width 3.05 Inches/77.47mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground Cone5335SST6HT
1-1/4 Inch Liquidtight Fitting for Flexible Metallic Conduit, Straight, High UV Resistance, NEMA Ratings: 3, 3R, 4, 4X, Length 2.60 Inches/66.04mm, Width 2.25 Inches/57.15mm, Temperature Range 0 to 150 Degrees C, 316 Stainless Steel with Duraplated Ground ConeFrequently Asked Questions
What certifications does this fitting have?
The fitting is UL and CSA listed for safety and performance.
What is the temperature range for this fitting?
The fitting operates reliably from 0°C to 105°C.
What are the dimensions of this fitting?
The fitting measures 2.19 inches in length and 1.87 inches in width.
What conduit size does this fitting accommodate?
This fitting is designed for 1-inch flexible metallic conduit.
What NEMA ratings does this fitting meet?
The fitting meets NEMA ratings 3, 3R, 4, and 4X.
Is this fitting suitable for outdoor use?
Yes, it has high UV resistance and NEMA 3R/4 ratings for outdoor applications.
Is this fitting listed for use in corrosive environments?
Yes, the 316 stainless steel construction resists corrosion in harsh conditions.
What material is the ground cone made of?
The ground cone is Duraplated for enhanced corrosion resistance.
Can this fitting be used in food processing facilities?
Yes, the stainless steel construction and NEMA ratings make it suitable for food processing environments.
How to Install a 5334SST6 Stainless Steel Liquid-tight Conduit Fitting
This guide provides step-by-step instructions for properly installing a 5334SST6 stainless steel liquid-tight fitting with flexible metallic conduit into a box wall, ensuring a secure and liquid-tight connection.
Estimated time: 15m
Tools needed:
Hacksaw, Standard screwdriver, Hammer, Torque wrench (optional, for precise gland nut tightening)
Supplies needed:
Liquid-tight flexible metallic conduit, 5334SST6 Stainless Steel Liquid-tight Fitting, LNSS/100 Locknut (for 1" NPT knockout applications), 5264 Seal Gasket (for 1" NPT knockout applications)
- Prepare the Flexible Conduit
Cut the end of the flexible conduit with a clean, square cut. Use a metal jig and a 32 tooth/inch hacksaw, or a power band saw with 24-32 teeth/inch at no more than 400 feet/minute. DO NOT use an abrasive wheel, as this can damage the conduit.
- Assemble Fitting Components onto Conduit
Slide the gland nut (part of the 5334SST6 fitting) onto the prepared end of the flexible conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the SAFE-EDGE® ground cone onto the conduit, ensuring it is properly seated.
- Install Fitting into Box Wall Knockout
Insert the main body of the 5334SST6 fitting through the knockout hole in the box wall. For knockout applications, place the 5264 seal gasket over the fitting's threads from inside the box, then thread the LNSS/100 locknut onto the fitting body from inside the box.
- Secure the Locknut
Hand-tighten the LNSS/100 locknut. Then, further tighten the locknut by an additional 1/4 turn using a hammer and a standard screwdriver, or an equivalent method, to firmly secure the fitting to the box wall. This ensures a robust mechanical connection.
- Tighten the Gland Nut
Tighten the gland nut onto the fitting body to the UL recommended torque value. For the 5334SST6 (1" NPT), tighten the gland nut to 700 lb-in (79.1 N-m). This critical step ensures a liquid-tight and dust-tight seal for the conduit connection.
