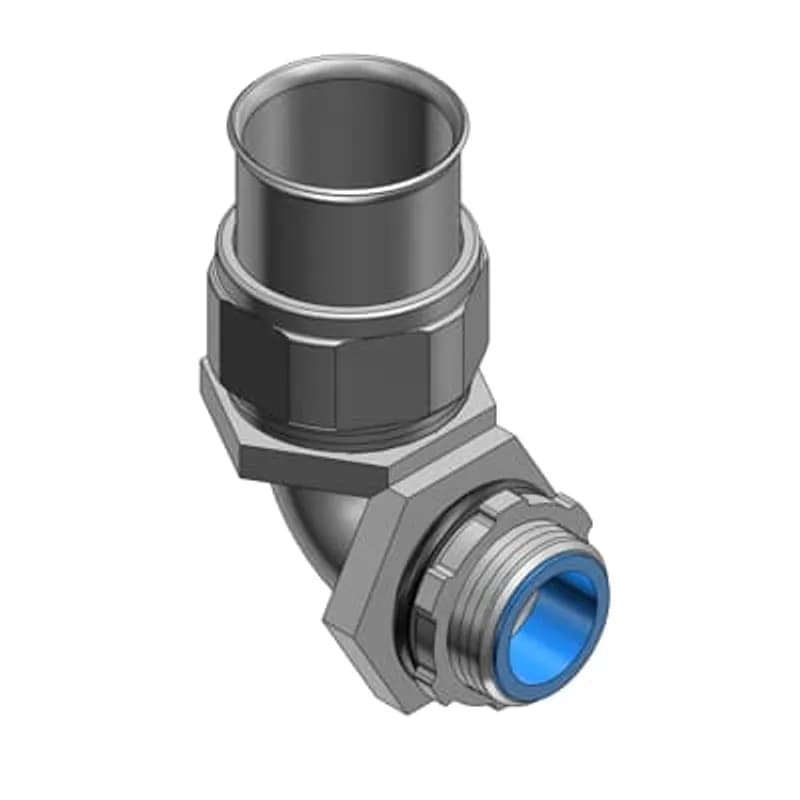

ABB - Installation Products 3741 - 1/2 Inch Steel Type A to 90 Degree Liquidtight Connector With Insulated Throat and Sealing Ring With Steel Retainer

ABB Installation Products 3741 1/2 Inch Steel Type A to 90 Degree Liquidtight Connector With Insulated Throat and…

UPC: 786210037417


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 3741 (SKU: 3741) is a 90-degree steel liquidtight connector engineered for Type A non-metallic flexible conduit, providing a robust solution for demanding electrical installations. Constructed from high-strength steel, this connector ensures durability and long-term performance in harsh environments. The connector incorporates a Santoprene® sealing gasket, which delivers superior resistance to water, oil, and dust ingress, maintaining a reliable seal even in challenging conditions. The 90-degree angle design optimizes conduit routing in tight spaces, reducing the need for additional bends and minimizing installation time. This feature is particularly beneficial in applications where directional changes are required, such as machine enclosures, control panels, or outdoor electrical setups. The connector includes a sealing ring and steel locknut for secure installation, offering high mechanical pull-out strength to withstand vibration and mechanical stress. Its NPT hub threads provide a reliable, leak-proof connection to female threads, ensuring compatibility with standard conduit systems. Measuring 1⅜" (A) x 2⅛" (B), the ABB 3741 is designed to accommodate Type A non-metallic flexible conduit, meeting NEC® Article 356 requirements for liquidtight flexible nonmetallic conduit (LFNC). The connector is listed under UL File No. With its combination of durability, corrosion resistance, and secure sealing, the ABB 3741 is an ideal choice for industrial, commercial, and residential applications requiring reliable liquidtight protection.
  • 90-degree angle for efficient conduit routing in tight spaces
  • NPT hub threads for secure connection to female threads
  • High mechanical pull-out strength, includes sealing ring and steel locknut

Specifications

Application
Provides a positive seal against water, oil and dust
Connection Type
Threaded (NPT)
Material
Steel
Series
3741
Size
1/2 Inch
Standard
UL E23018
Type
Connectors-90 Degree
Package Dimensions (L x W x H)
10 IN x 3.6 IN x 6.8 IN
Package Dimensions (L x W x H)
25.4 cm x 9.144 cm x 17.272 cm
Package Weight (Imperial)
0.3500 L
Package Weight (Metric)
0.1590 kg
Connector, Liquid Tight, 45 Degree, US Steel, Size 3-1/2 Inch, Insulated Throat

458-SLTIUS

Connector, Liquid Tight, 45 Degree, US Steel, Size 3-1/2 Inch, Insulated Throat
Liquidtight Conduit Fitting, Straight, Trade Size 2 Inch, Steel

LT200-SC

Liquidtight Conduit Fitting, Straight, Trade Size 2 Inch, Steel
Liquidtight Conduit Fitting, 90 Degree 1-1/4 Inch, Non-Insulated Malleable Iron

5255

Liquidtight Conduit Fitting, 90 Degree 1-1/4 Inch, Non-Insulated Malleable Iron
3 Inch 45 Degree Malleable Iron Insulated Liquidtight Connector

5349

3 Inch 45 Degree Malleable Iron Insulated Liquidtight Connector
1-1/4 Inch Straight Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating

5365

1-1/4 Inch Straight Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating
3/8 Inch Wire Mesh Grip Assembly, Pack of 10

WMG-LT1

3/8 Inch Wire Mesh Grip Assembly, Pack of 10
1 Inch Wire Mesh Grip Assembly, Pack of 10

WMG-LT4

1 Inch Wire Mesh Grip Assembly, Pack of 10
1-1/2 Inch Wire Mesh Grip Assembly, Pack of 2

WMG-LT6

1-1/2 Inch Wire Mesh Grip Assembly, Pack of 2

Frequently Asked Questions

Is the sealing ring included with the ABB 3741?

Yes, the ABB 3741 is supplied with a Santoprene® sealing gasket and steel locknut for a complete liquid-tight installation.

What thread type does the ABB 3741 use?

The ABB 3741 features NPT (National Pipe Thread) hub threads for secure connection to female threads.

What materials are used in the ABB 3741 connector?

The connector body is zinc-plated steel with a nylon-insulated throat. The retaining ring is Type 316 stainless steel, the O-ring is Neoprene, and the sealing gasket is Santoprene®.

Can the ABB 3741 be used in outdoor environments?

Yes, the ABB 3741 is suitable for outdoor and indoor locations exposed to continuous or intermittent moisture, providing a liquid-tight and dust-tight connection.

What is the mechanical pull-out strength of the ABB 3741?

The ABB 3741 offers high mechanical pull-out strength, ensuring a secure connection even under vibration or mechanical stress.
