UPC: 786210052557
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Overview

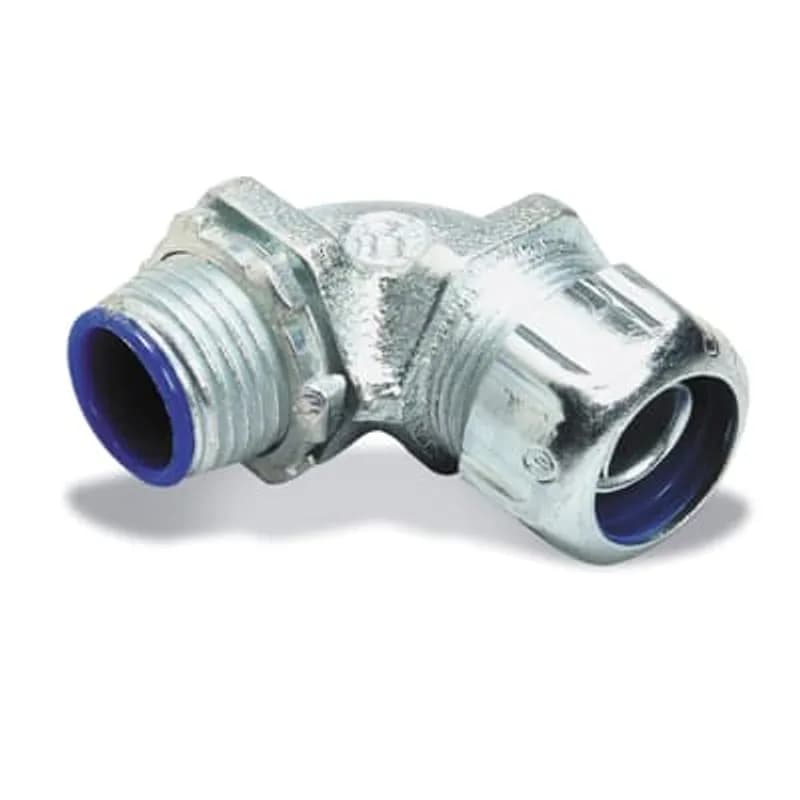

- 90-degree angle for efficient conduit routing and space-saving installations
- Constructed from malleable iron with zinc-plated finish for corrosion resistance
- Non-insulated design with nylon sealing ring and insulator for reliable performance
- Temperature rating of 105°C for high-heat applications
- Compatible with liquidtight flexible metal conduit (LFMC) to prevent environmental ingress
Specifications
Application | Used Where Flexible Metal Raceway is Installed in Outdoor or Indoor Locations Where Exposed to Continuous or Intermittent Moisture |
Finish | Electro Zinc Plated/Chromate Coating |
Material | Malleable Iron |
Size | 1-1/4 Inch |
Standard | UL E23018, CSA |
Type | Connectors-90 Degree |
Package Dimensions (L x W x H) | 9.5 IN x 6.5 IN x 4.5 IN |
Package Dimensions (L x W x H) | 24.13 cm x 16.51 cm x 11.43 cm |
Package Weight (Imperial) | 1.1300 L |
Package Weight (Metric) | 0.5130 kg |
5365
1-1/4 Inch Straight Malleable Iron Chase Liquidtight Insulated Connector With Electro-Zinc Plating
Frequently Asked Questions
What standards do these fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and Federal Specification H-28.
What are the available trade sizes for these fittings?
The fittings are available in trade sizes from 3/8 inch to 6 inches (12mm to 153mm).
What is the operating temperature range for the fittings?
The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
What are the ingress protection ratings for these fittings?
The fittings have UL Type 3, 3R, 4, 6 (outdoor) and 4, 6, 12, 13 (indoor) ratings. They also meet CSA Type 3, 3R, 4, 12, 13 and NEMA Type 3, 3R, 4, 6, 12, 13. IEC ratings are IP66, IP67, IP68, IP69.
What materials are used for the fittings' construction?
Trade sizes 3/8 inch to 1 1/4 inches are steel with Zinc Chromate finish, while 1 1/2 inches to 6 inches are malleable iron with Zinc Chromate finish.
Can these fittings be used in hazardous locations?
Yes, they are suitable for Class I Division 2, Class II Division 1 & 2 Hazardous Locations per NEC® Section 500, and Zone 2, Zone 20, Zone 21, Zone 22, Class I Division 2, Class II Division 1 & 2, and Class III Hazardous locations per CE Code.
What is the maximum voltage for electrical circuits using these fittings?
These fittings are for use in electrical circuits up to 1,000 V.
Are these fittings available in different body types?
Yes, they are available in straight, 45°, and 90° fitting bodies with NPT threads.
Do these fittings come in insulated or non-insulated versions?
Yes, both insulated and non-insulated versions of the fittings are available.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
How to Install T&B Liquidtight Connectors (5000 Series)
This guide provides step-by-step instructions for the proper installation of T&B liquidtight flexible metallic conduit connectors, including preparation, assembly, and secure mounting to ensure high performance and reliability.
Estimated time: 15m
Tools needed:
Hacksaw (32 Tooth/inch no. set, sharp), Metal jig (optional, for cutting conduit), Power band saw (optional, for high production), Smooth jaw wrench (for PVC coated connectors), Hand protection, Eye protection
Supplies needed:
Liquidtight flexible metallic conduit, T&B Liquidtight connector (e.g., 5255 series), T&B 140 series locknut (for knockout applications, if not included), T&B 5260 series sealing gasket (for knockout applications, if not included), PVC cement (if installing PVC coated connectors and gouging occurs)
- Disconnect Power and Prepare Conduit
WARNING: Risk of shock, disconnect all power to the electrical system before beginning installation. CAUTION: This product should be installed by a qualified electrician in accordance with national and local electrical codes. Wear hand protection and eye protection. Cut the flexible metallic conduit with a clean, square end cut. Use a metal jig and a sharp hacksaw with a 32 Tooth/inch no. set, or a power band saw with a 24-32 Tooth/inch wavy set (not exceeding 400 feet/minute). Do not use an abrasive wheel.
- Assemble Connector onto Conduit
For 5000, 7000, and 9000 series connectors, slide the gland nut onto the prepared conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone into the conduit. If installing a PVC coated connector, tighten the assembly with a smooth jaw wrench. If gouging occurs and exposes metal, PVC cement is recommended to ensure maximum corrosion protection.
- Secure Connector to Knockout Box
Insert the assembled connector body into the knockout opening of the electrical box. For knockout applications, use a T&B 140 series locknut and a T&B 5260 series sealing gasket (purchase separately if not included). Position the locknut on the inside of the box and the connector body on the outside. Tighten the locknut to the connector body according to the specified torque: 3/8" (200 lb.-in.), 1/2" (300 lb.-in.), 3/4" (500 lb.-in.), 1" (700 lb.-in.), 1 1/4" (1000 lb.-in.), 1 1/2" (1200 lb.-in.), 2" (1600 lb.-in.), 2 1/2" (1600 lb.-in.), 3" (1600 lb.-in.), 3 1/2" (1600 lb.-in.), 4" (1600 lb.-in.).
