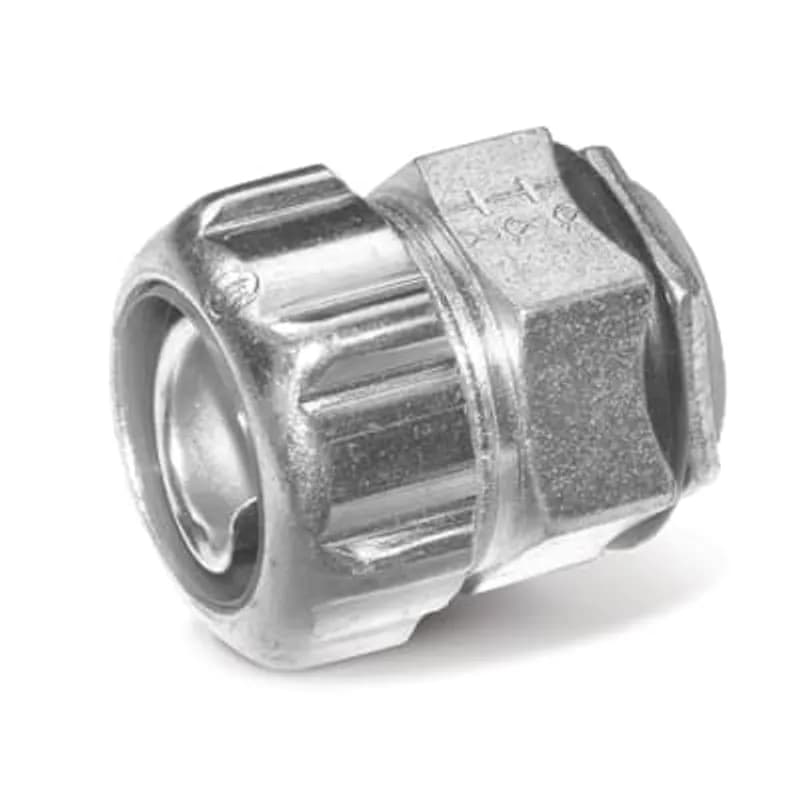

ABB Installation Products 5365 1-1/4 Inch Straight Malleable Iron Chase Liquidtight Insulated Connector With…
UPC: 786210053653
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 1-1/4" straight malleable iron connector for chase liquidtight conduit
- Electro-zinc plating provides corrosion resistance in harsh environments
- Insulated design prevents electrical shorts and protects wiring
- Straight configuration simplifies installation and conduit routing
- Compatible with standard 1-1/4" industrial conduit systems
Specifications
Finish | Electro Zinc Plating |
Material | Malleable Iron |
Size | 1-1/4 Inch |
Standard | UL E23018, CSA |
Type | Chase Connectors-Straight |
Package Dimensions (L x W x H) | 8.25 IN x 5.25 IN x 4.25 IN |
Package Dimensions (L x W x H) | 20.955 cm x 13.335 cm x 10.795 cm |
Package Weight (Imperial) | 0.9700 L |
Package Weight (Metric) | 0.4400 kg |
5337-T6
2 Inch Liquidtight Fitting, Metal Conduit Connector, Straight, Insulated, Safe-edge Ground Cone, In K.O. Applications Use Sealing Ring #5267, Electro Zinc Plated to Chrome Coated, UL Listed Type 6, 5 Pieces
6302SST
1/2 Inch Stainless Steel Type A Liquidtight Straight Connector With Santoprene Sealing Gasket and Stainless Steel Retaining RingFrequently Asked Questions
Do these fittings meet CSA Heavy Duty requirements?
Trade sizes 1/2 inch to 4 inches meet CSA Heavy Duty requirements when used with T&B HD Certified LFMC.
What are the available trade sizes for these fittings?
The fittings are available in trade sizes from 3/8 inch to 6 inches (12mm to 153mm).
What is the maximum voltage rating for these fittings?
These fittings are suitable for use in electrical circuits up to 1,000 V.
What is the operating temperature range for the fittings?
The general operating temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
What materials are used for the fittings?
Trade sizes 3/8 inch to 1 1/4 inches are steel with a Zinc Chromate finish, while 1 1/2 inches to 6 inches are malleable iron with a Zinc Chromate finish.
What ingress protection ratings do these fittings have?
The fittings have UL Type 4, 6, 12, 13 (indoor) and Type 3, 3R, 4, 6 (outdoor) ratings. They also meet CSA Type 3, 3R, 4, 12, 13, NEMA Type 3, 3R, 4, 6, 12, 13, and IEC IP66, IP67, IP68, IP69.
Are these fittings suitable for hazardous locations?
Yes, they are suitable for Class I Division 2, Class II Division 1 & 2 Hazardous Locations per NEC® Section 500, and various Zone and Class hazardous locations per CE Code.
What types of fitting bodies are available?
The fittings are available in straight, 45°, and 90° body configurations with NPT threads.
Are the seal rings and insulators halogen free?
Yes, the seal rings, insulators, and seal gaskets are halogen free.
What standards do these fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, and several Federal Specifications.
How to Install T&B Liquidtight Flexible Metallic Conduit Connectors
This guide provides detailed instructions for the proper installation of T&B liquidtight connectors, including series like 5365, with flexible metallic conduit. Follow these techniques to ensure high performance and reliable connections in accordance with electrical codes.
Estimated time: 20m
Tools needed:
Hacksaw, Power band saw (optional), Smooth jaw wrench (for PVC coated connectors), Torque wrench, Metal jig (optional)
Supplies needed:
T&B Liquidtight connector, Liquidtight flexible metallic conduit, Nylon sealing ring, Safe Edge™ Cone, Gland nut, Locknut, Sealing gasket (for knockout applications), PVC cement (optional)
- Prioritize Safety and Prepare Workspace
WARNING: Disconnect all power before beginning installation to prevent risk of shock. Wear hand protection and eye protection. Ensure the installation is performed by a qualified electrician in accordance with national and local electrical codes.
- Prepare the Flexible Conduit
Cut the flexible conduit with a clean, square end cut. Use a metal jig, a sharp hacksaw (32 Tooth/ln.), or a power band saw (24-32 Tooth/ln. wavy set, not more than 400’/minute) for high production. Do not use an abrasive wheel.
- Assemble the Connector Components
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, slide the gland nut onto the prepared conduit. Next, slide the nylon sealing ring onto the conduit. Finally, thread the Safe Edge™ Cone onto the conduit end.
- Install the Connector into the Knockout Box
Insert the connector body through the knockout hole from the outside of the box. For 5365 to 5370 series, ensure the O-ring is correctly positioned on the outside of the box. For 5361 to 5364 series, ensure the 1-piece sealing ring is correctly positioned. Secure the connector by threading a locknut onto the body from the inside of the knockout box. For 7000 and 9000 series, order the locknut separately. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchase separately).
- Tighten the Gland Nut
Tighten the gland nut onto the connector body to firmly secure the flexible conduit. Refer to the provided torque table for the correct tightening torque based on the fitting's trade size (e.g., 3/8" requires 200 lb.-in., 1/2" requires 300 lb.-in., up to 4" requiring 1600 lb.-in.). For PVC coated connectors, use a smooth jaw wrench. If gouging occurs, exposing metal, apply PVC cement.
- Install Chase® Connector Assemblies (Optional)
For 'Space Saver' Chase® connector assemblies, insert only the Chase® Nipple inside the knockout. Achieve lock-up by either tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.
