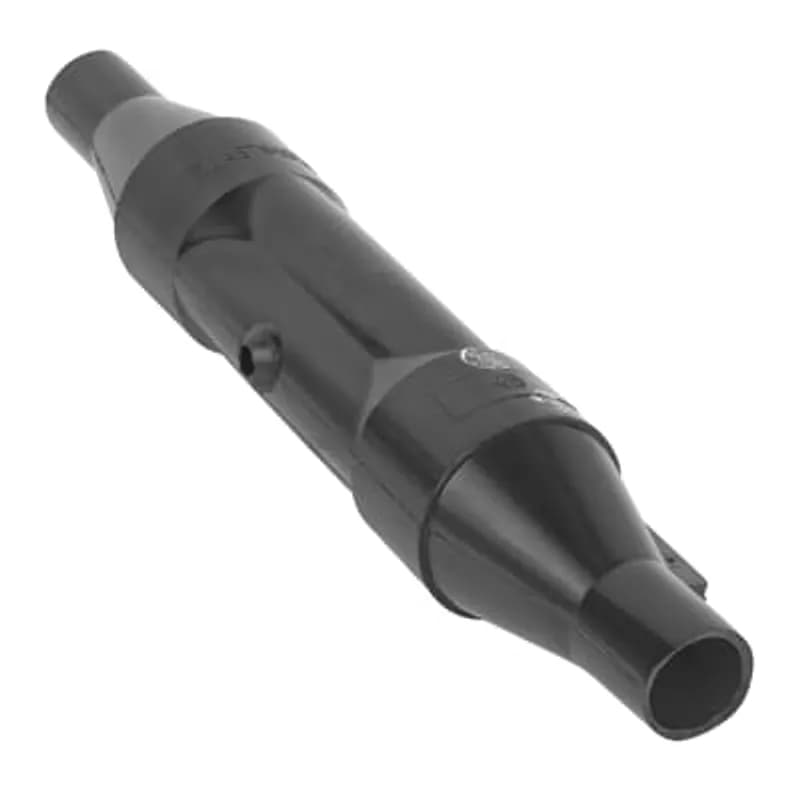

ABB Installation Products 35PCJ1J1240 35kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter…
UPC: 783786661831
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35 kV Voltage Rating for medium-voltage applications
- Single-piece housing for simplified installation
- Accommodates cable insulation diameters from 0.980" to 1.180"
- Designed for aluminum conductors (1/0 AWG Stranded / 2/0 AWG Solid)
- Manufactured by ABB Installation Products
Specifications
Application | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
Color | Black |
Conductor Range | 1/0 STR AWG , 2/0 SOL AWG |
Connection | Compression |
Insulation | Yes |
Material | EPDM Rubber |
Number Of Conductors | 2 |
Size | 14-3/8 inch long |
Special Features | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed. Power Cable Joints are available in two styles. Style 1 uses a single-piece housing that is sized to accommodate a specific range of cable - ideally suited to straight splicing of the same or similar cable. Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable |
Standard | IEEE Standard 404 |
Type | Power Cable Joint |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.7500 L |
Package Weight (Metric) | 0.7940 kg |

35PCJ2K1240
35kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Conductor. Conductor Size AWG Stranded 1/0 /Solid 2/0.
15PCJ1H2290
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Conductor. Conductor Size AWG Solid 350.
25PCJ1M1330
25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Conductor. Conductor Size AWG Stranded 500.
15PCJ2J1270
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Conductor. Conductor Size AWG Stranded 4/0 /Solid 250.
15PCJ2G1230-F1230
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded #1/Solid 1/0. Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Conductor. Conductor Size AWG Stranded #1/Solid 1/0.
15PCJ1G2250
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Conductor. Conductor Size AWG Stranded 2/0 /Solid 3/0.
25PCJ1G1210
25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded #3/Solid #2.
35PCJ1P1400
35kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Conductor. Conductor Size AWG Solid 1000.Frequently Asked Questions
What is the voltage rating of this cable joint?
The ABB 35kV Power Cable Joint has a voltage rating of 35 kV.
What cable insulation diameters does this joint support?
This joint supports cable insulation diameters ranging from 0.980 inches to 1.180 inches.
What type of conductor material is this joint designed for?
This joint is designed for aluminum conductors.
What conductor sizes are compatible with this joint?
It is compatible with 1/0 AWG stranded and 2/0 AWG solid aluminum conductors.
What is the housing style of this cable joint?
The ABB 35kV Power Cable Joint features a single-piece housing.
How to Install the 15/25/35PCJ1 Series Straight Joint
This guide provides step-by-step instructions for the permanent, fully shielded, and submersible installation of the 15/25/35PCJ1 series straight joint for aluminum to aluminum and/or aluminum to copper conductors on wire shielded cables.
Estimated time: 2h
Tools needed:
Wire-brush, Crimping tool, Cable strippers, Measuring tape or ruler, T&B WT3D tool (recommended for 35kV only)
Supplies needed:
Joint Housing, Splice (Conductor Contact), Lubricant (DO NOT SUBSTITUTE), User-supplied connector, DELTECt Cable ties (TYD5135, for 35kV only), #14 AWG copper wire or equivalent (if shield wires are smaller than #14 AWG)
- Perform Initial Safety and Inspection
DANGER: All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products in the work area. This product should be installed only by competent personnel trained in good safety practices involving high voltage electrical equipment. Check the contents of the package to ensure they are complete and undamaged. Inspect all components for proper fit with the cable and/or mating products. Have all required tools at hand and maintain cleanliness throughout the procedure.
- Prepare Cables for Joint Centerline
Overlap both cables and cut them to 12 inches (305mm) from the centerline of the joint. Where applicable, remove the cable jacket of Cable 1 to 37 inches (940mm) and Cable 2 to 21 inches (530mm). Fold back the shield wires. Cut both cables at the centerline of the joint.
- Prepare Cable 1 and Store Housing
Taper the edge of Cable 1 insulation at least 1/2 inch to no greater than 1-1/2 inches (13mm to 38mm). Clean and lubricate the insulation shield of Cable 1. Lubricate the inside bore of the joint housing on both ends. Slide the housing onto Cable 1 up to its shield wires.
- Prepare Cables for Splice Installation
Carefully remove the cable insulation from both Cable 1 and Cable 2. Then, carefully remove the insulation shield from both cables. DO NOT CUT OR NICK THE CABLE INSULATION OR CONDUCTOR during this process.
- Install the Splice
If conductors are aluminum, wire-brush them and immediately insert them into the splice. Check the dimension against the 'Max Check Before' table (6 inches for 500-750 MCM, 6 7/8 inches for 1000 MCM); if it exceeds, redo assembly. Crimp the splice following the recommendations provided with it. Wipe off all excess inhibitor where applicable. Check the distance between cable insulations against the 'Max Check After' table (6 1/4 inches for 500-750 MCM, 6 1/2 inches for 1000 MCM); if it exceeds, redo assembly. Remove any sharp protrusions or burrs generated during crimping. Remove metal chips/filings from the splice and joint assembly area prior to sliding the joint. Clean cables where indicated and lubricate in the direction of arrows to provide a build-up or ramp of lubricant at the edge of the insulation shield.
- Complete Joint Assembly
Slide the housing into its final position. Ensure proper positioning by observing and equalizing the deformation of the joint ends caused by the underlying cable insulation shield. For 35kV ONLY: Install two DELTECt Cable ties on each end of the cable entrance. Begin by installing the outer ties approximately 1/4 inch from the edge of the splice, then install the second ties approximately 1/4 inch from the first with an offset of the locking heads. The T&B WT3D tool is recommended to tighten and trim the ties. Remove the yellow pin from the joint grounding eye and discard it. Retrain shield wires and secure them to the ends of the joint as shown in the diagram. Insert one of the shield wires from Cable 1 (if #14 AWG or larger) through the joint grounding eye; repeat for Cable 2. If shield wires are smaller than #14 AWG, use separate #14 AWG copper wire or equivalent. Connect joint grounding wires and remaining shield wires using an appropriate connector. Reconstruct the cable jacket (where applicable) over both cables and the joint housing.
