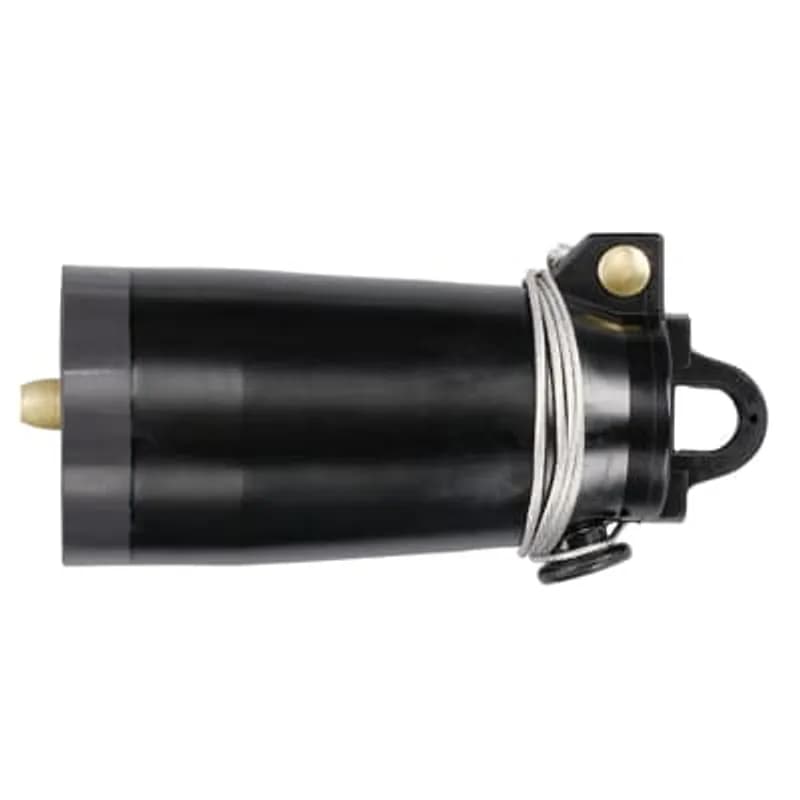

ABB - Installation Products 273DRGA - 200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. White Band
More images

ABB Installation Products 273DRGA 200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe.…

UPC: 783786640782


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 273DRGA is a 200 Amp, 25kV loadbreak insulated cap designed for medium-voltage electrical systems. This fully shielded, fully submersible connector is engineered for energized operation on 25kV class loadbreak systems, meeting ANSI/IEEE Standard 386 requirements. The 273DRGA features an integral #14 AWG ground lead for safe system grounding and an insulated cuff for enhanced protection during installation and operation. This model is supplied without a probe, indicated by the 'A' suffix, making it ideal for applications requiring a separate probing mechanism or where probing is not required. The cap is hot stick operable, allowing safe manipulation in energized environments. Key electrical ratings include: - 15.2kV maximum phase-to-ground operating voltage - 26.3kV phase-to-phase - 125kV BIL impulse withstand (1.2 x 50 microsecond wave) - 40kV AC one-minute withstand - 78kV DC 15-minute withstand - 19kV AC corona extinction @ 3pC sensitivity - 200 Amp continuous and loadbreak - 10kA symmetrical momentary & fault close (10 cycles)
  • 25kV, 200 Amp Loadbreak Rated
  • Molded EPDM Rubber Construction
  • Integral #14 AWG Ground Lead Attached
  • Insulated Cuff for Enhanced Protection
  • Hot Stick Operable for Energized Environments
  • Fully Shielded and Fully Submersible
  • Meets ANSI/IEEE Standard 386
  • Supplied Without Probe (Model 273DRGA)

Specifications

Amperage Rating
200 A
Application
Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation
Color
White
Color
White Band
Color
Black
Connection Type
Hot Stick Operable
Current Rating
200 A
Insulation
True
Material
EPDM Rubber
Material
Housing - EPDM-Rubber
Series
273D
Size
200A
Size
Diameter 2.90 inch (73.7mm)
Special Features
25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Insulated Cap
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1700 L
Package Weight (Metric)
0.5310 kg
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.

K655LR-H0240

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.
200 Amp, 25kV, Loadbreak 4 Point Junction. With U Straps. White Band.

274J4-WB-5

200 Amp, 25kV, Loadbreak 4 Point Junction. With U Straps. White Band.
200 Amp, 25kV, Loadbreak 3 Point Junction. With U Straps. White Band

274J3-WB-5

200 Amp, 25kV, Loadbreak 3 Point Junction. With U Straps. White Band
15/25kV 600 Series Deadbreak 2-Way L-Kit. Includes Two 600 Amp Basic Elbows, Two 28 kV 600 Amp Studs, Two Insulated Plugs with Caps, Compound and Instructions

K655L2

15/25kV 600 Series Deadbreak 2-Way L-Kit. Includes Two 600 Amp Basic Elbows, Two 28 kV 600 Amp Studs, Two Insulated Plugs with Caps, Compound and Instructions
15/25kV 600 Series Deadbreak 3-Way L-Kit

K655L3

15/25kV 600 Series Deadbreak 3-Way L-Kit
15/25kV 600 Series Deadbreak 1-Way L-Kit. Includes 600 Amp Basic Elbow, 28 kV 600 Amp Stud, Two Insulated Plugs with Caps, Compound and Instructions

K655L1

15/25kV 600 Series Deadbreak 1-Way L-Kit. Includes 600 Amp Basic Elbow, 28 kV 600 Amp Stud, Two Insulated Plugs with Caps, Compound and Instructions
600 Amp, 35kV, 600 Series Deadbreak 2-Way L-Kit. Does not include cable adapters or compression lugs, must be ordered separately.

755L2

600 Amp, 35kV, 600 Series Deadbreak 2-Way L-Kit. Does not include cable adapters or compression lugs, must be ordered separately.
15kV 600 Series Test and Ground and Stick-Op, Connector System, Stick-Op Loadbreak Reducing Tap Plug, 600AT assembly tool required for operation and/or installation of Stick-Op. 600 to 200 Amps.

650LRTPA3

15kV 600 Series Test and Ground and Stick-Op, Connector System, Stick-Op Loadbreak Reducing Tap Plug, 600AT assembly tool required for operation and/or installation of Stick-Op. 600 to 200 Amps.

Frequently Asked Questions

What is the current rating of the 273DRGA insulated cap?

The 273DRGA insulated cap has a current rating of 200 Amps.

What is the voltage rating for this ABB insulated cap?

The 273DRGA insulated cap is rated for 25kV.

Does the 273DRGA come with a probe?

No, the 273DRGA insulated cap is equipped without a probe.

What type of connection does the 273DRGA have for grounding?

The 273DRGA insulated cap is equipped with a ground connection.

What is the purpose of the white band on the 273DRGA?

The white band on the 273DRGA serves as a visual identifier.

How to Install the 273DRGA Insulated Cap with Ground Lead

Instructions for installing and removing the 273DRGA insulated cap with ground lead on ELASTIMOLD loadbreak bushing interfaces.

Estimated time: 30m

Tools needed:

Hotstick (minimum 8 ft length recommended), System ground connection tool

Supplies needed:

Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved), Protective cover

  1. Connect the electrostatic grounding wire

    Connect the free end of the electrostatic grounding wire to the system ground. Ensure there is enough slack for hot-stick operation. CAUTION: Train the grounding wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.

  2. Prepare the insulated cap

    Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.

  3. Install the insulated cap

    Firmly attach a hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.

  4. Remove the insulated cap

    Attach the hotstick to the pulling eye. Rotate the insulated cap slightly while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion. Remove the electrostatic grounding wire of the insulated cap from the system ground. Replace the protective cover on the insulated cap to keep its internal surface clean.
