Contact for Pricing
Minimum Qty: 12
Multiplier: 12
*Contact for lower quantities*

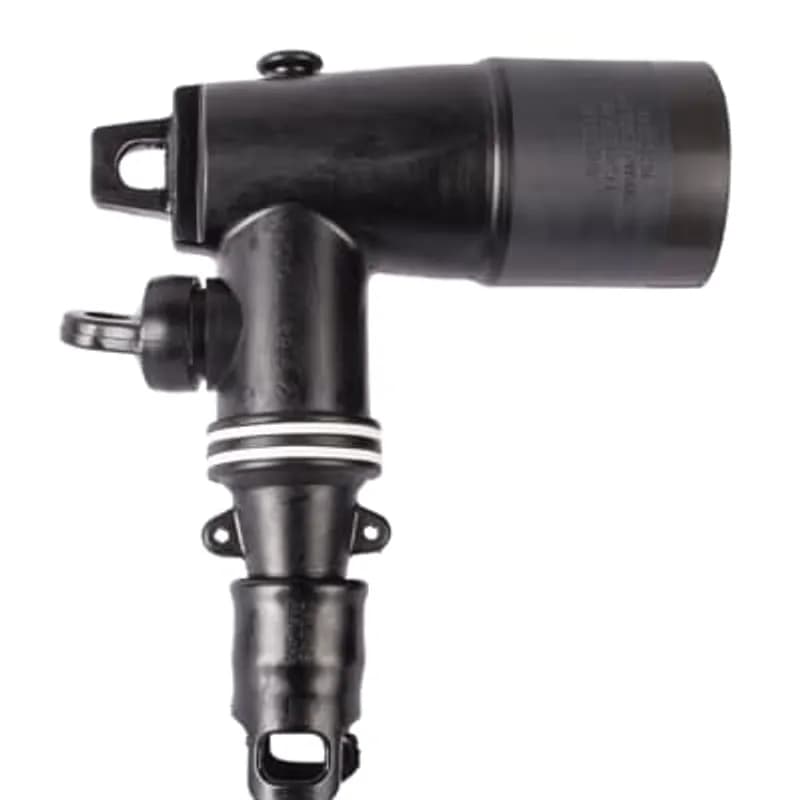

Overview
- 25kV rated, 200 Amp continuous current capacity
- Loadbreak design for safe hot-stick operation under load
- Built-in test point for electrical testing without service interruption
- Bi-metal compression lug for copper or aluminum conductors
- Jacket seal for environmental protection against moisture and contaminants
- Compatible with 0.890–1.220 inch cable insulation diameters
- 4/0 AWG stranded wire size support
Specifications
Amperage Rating | 200 A |
Application | 200 kV, 200 Amp |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 11.47 in |
Length | 291.338 mm |
Material | Housing - EPDM-Rubber |
Special Features | 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point and Jacket Seal |
Voltage Rating | 28 kV |
Width | 8.2 in |
Width | 208.28 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.4300 L |
Package Weight (Metric) | 1.1020 kg |
261LR-E5270
25/28kV, 200 Amps, Loadbreak Elbow, no Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Compression Lug, Conductor Size 4/0 Stranded/Compressed, 250 Solid/Compact. No Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart.
262LRJS-D5260
25kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, 3/0 Stranded Wire Size, Bi-Metal Compression Lug.
262LRJS-B5250
25kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 Inch Cable Insulation Diameter, 2/0 Stranded/Compressed or 3/0 Compact/Solid Wire Size, Bi-Metal Compression Lug.
262LR-D5230-S
15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Bi-Metal Lug, Conductor Size 230 - #1 Stranded/Compressed or 1/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 9.03 inches tall, 2.097 inch diameter. Includes Cold Shrink-Fit Jacket Seal Kit262LR-C5260
200 Amp, 25kV, Loadbreak Elbow with Test Point, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01262LRJS-C5270
200 Amp, 25kV, Loadbreak Jacket Seal Elbow with Test Point, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.262LRJS-C5230A
25kV, 200 Amp, Elbow. LoadBreak. Bi-Metal Compression Lug. Cable Insulation Diameter 0.805 inch to 1.060 inch. Conductor Size Compressed Stranded #1 or Compacted Solid 1/0. With Jacket Seal. With Test Point.Frequently Asked Questions
What is the current rating of this connector?
The connector has a continuous current rating of 200 Amps.
What wire size does this connector support?
The connector is designed for 4/0 AWG stranded wire.
What cable insulation diameters are compatible?
The connector supports cable insulation diameters from 0.890 to 1.220 inches.
What is the maximum operating voltage for this connector?
The connector is rated for a maximum operating voltage of 25kV.
Does this connector have a test point?
Yes, the connector includes a built-in test point for electrical testing.
Is this connector suitable for hot-stick operation?
Yes, the loadbreak design allows for safe hot-stick operation under load.
What materials are used in the compression lug?
The compression lug is made of bi-metal construction for compatibility with both copper and aluminum conductors.
Does this connector provide environmental protection?
Yes, the jacket seal protects against moisture and contaminants.
How to Install Elastimold 261LRJS/262LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 261LRJS (without test point) and 262LRJS (with test point) Loadbreak Elbow Connectors with Jacket Seal on UD cable.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Wire brush, Crimp tool (refer to lug chart), Hotstick
Supplies needed:
Lubricant (supplied, do not substitute), Mastic sealing strips (supplied), Vinyl tape, No. 14 AWG / 2.5mm copper wire, Appropriate grounding connector
- Perform Pre-Installation Checks
DANGER: All apparatus must be de-energized during installation or removal of parts. Inspect package contents for completeness and damage. Verify all components fit properly with the cable and mating products. Check threads by threading the probe into the compression lug; if resistance is encountered, check for damage. Read all instructions before starting. Have all required tools ready and maintain cleanliness. If installing a 262LRJS, lubricate the test point cap and test point, then install the cap if not already present.
- Train and Cut Cable
Train the cable to ensure sufficient slack for ease of operation. Pull extra cable, approximately 24-26 inches, beyond the centerline of the bushing. Place a tape mark at the bushing centerline. Remove the outer jacket 7-3/4 to 8 inches further back from the tape mark. Unwrap the neutral wires back past the bushing centerline. Cut the excess cable squarely at the bushing centerline.
- Prepare Cable End
Wrap one mastic strip, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and along the cable, pressing them into the mastic. Wrap a second mastic strip completely around the outer jacket, overlapping the imbedded neutral wires. Use a third strip if needed to build up the outer diameter. Cover all mastic with vinyl tape. Remove the insulation shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.
- Install Compression Lug
Wire brush the bare aluminum conductors immediately. Install the compression lug, rotating it to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart provided with the lug, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable.
- Assemble Elbow Housing
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.
- Connect Concentric Neutral
Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow. Twist it tightly, taking care not to damage the eye. Pull the hood over the concentric neutral seal area on the cable by pulling the tabs or rolling the seal down. Twist all neutral wires together and connect them to ground using an appropriate connector. Ensure adequate slack in the wires for elbow operation.
- Connect Elbow to Bushing Plug
DANGER: Lubricate the receptacle portion of the elbow connector and the mating bushing ONLY if the transformer and elbow are known to be de-energized. Operate the connection using a full insulated hotstick type live-line tool, following appropriate operating instructions. Do NOT operate by hand.
