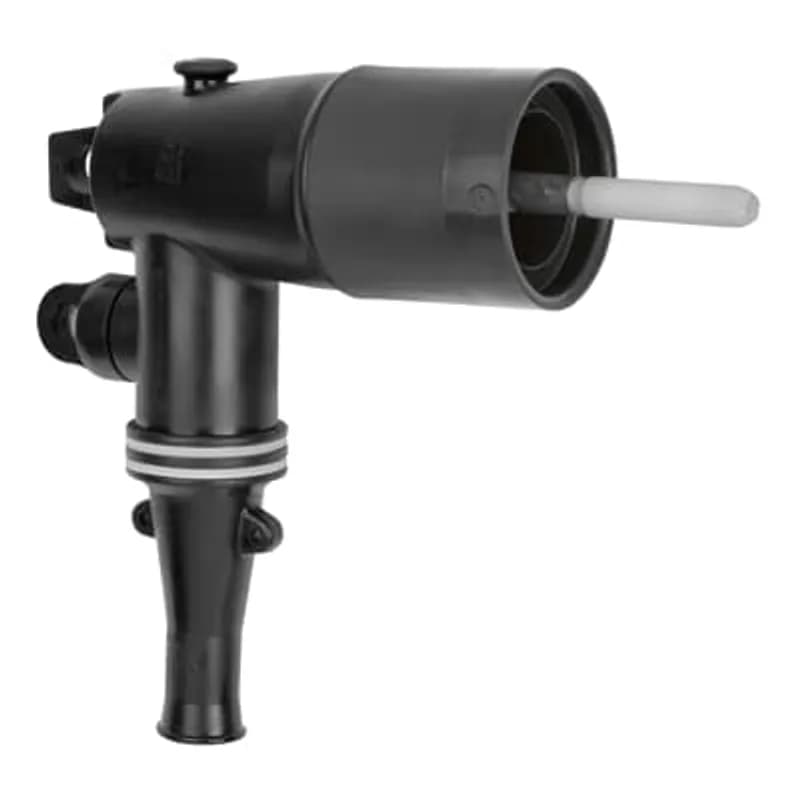

ABB - Installation Products 262LR-D5240-S - 15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 9.03 inches tall, 2.097 inch diameter. Includes Cold Shrink-Fit Jacket Seal Kit
More images

ABB Installation Products 262LR-D5240-S 15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter…

UPC: 075114410625


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 262LR-D5240-S is a 15/25kV, 200 Amp deadbreak elbow connector engineered for medium-voltage power distribution systems. This connector is designed to terminate cables with insulation diameters ranging from 0.890 to 1.220 inches (22.61-30.99mm), making it compatible with a wide range of cable types. The kit includes all necessary components for installation: the elbow connector housing, bi-metal lug, probe, probe wrench, bail assembly, V.D. cap, lubricant, crimp chart, and installation instructions. A Cold Shrink-Fit Jacket Seal Kit is also included to ensure a secure and environmentally resistant connection. The connector features a test point for convenient voltage verification, enhancing safety during maintenance and testing procedures. Key specifications include a voltage rating of 15/25 kV and a current rating of 200 A, making it suitable for medium-voltage applications. The connector dimensions are 5.454 inches tall x 9.03 inches deep with a 2.097-inch diameter, ensuring compatibility with standard medium-voltage equipment. The deadbreak design allows for safe connection and disconnection under load, reducing downtime and improving operational efficiency. This deadbreak elbow connector is ideal for use in medium-voltage power distribution systems, including utility, industrial, and commercial applications. Its robust construction and included accessories facilitate straightforward installation and reliable performance, ensuring long-term operational integrity.
  • 15/25kV voltage rating, 200 Amp current rating for medium-voltage applications
  • Accommodates cable insulation diameters from 0.890 to 1.220 inches (22.61-30.99mm)
  • Bi-metal lug supports conductor sizes 240 - 1/0 stranded/compressed or 2/0 solid/compact
  • Includes test point for voltage verification and Cold Shrink-Fit Jacket Seal Kit for environmental resistance
  • Kit includes elbow housing, lug, probe, wrench, bail assembly, V.D. cap, lubricant, crimp chart, and installation instructions

Specifications

Amperage Rating
200 A
Application
200 kV, 200 Amp
Color
Black
Conductor Range
1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
Conductor Size
240 - 1/0 Stranded/Compressed or 2/0 Solid/Compact
Connection
Compression
Connection Type
Deadbreak Elbow Connector
Current Rating
200 A
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Bi-Metal
Material
Housing - EPDM-Rubber
Size
5.454 x 9.03 inches (height), 2.097 inch (diameter)
Size
9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
Special Features
28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point. Cold Shrink-Fit Jacket Seal Kit
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Loadbreak Elbow Connector with Test Point
Voltage Rating
28 kV
Voltage Rating
15/25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .635-.905 inch. Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.

252LR-B5240

25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .635-.905 inch. Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
POWER TERMINALS TYPE 3 RENTAL

45030034

POWER TERMINALS TYPE 3 RENTAL
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Conductor size 4/0 Stranded/Compressed AWG or 250 Solid/Compact kcmil. Bi-Metal Connector.

168FLR1-C5270

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Conductor size 4/0 Stranded/Compressed AWG or 250 Solid/Compact kcmil. Bi-Metal Connector.
15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size Compressed Stranded 650 kcmil or Compacted Solid 750 kcmil.

K656I-M0360

15-25kV 600 Series Deadbreak Separable Straight Joint Package (2-Way) with Test Point. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size Compressed Stranded 650 kcmil or Compacted Solid 750 kcmil.
200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0 or Solid Compact 2/0 or 53.49 mm2.

K151SP-A2240

200 Amp, 15/25kV, Deadbreak Elbow, Straight Plug, Bails are required but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0 or Solid Compact 2/0 or 53.49 mm2.
25kV, 200 Amps, Loadbreak Elbow, Built in Jacket Seal, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 2/0 Stranded/Compressed, 3/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instruction Sheet and Crimp Chart.

262LRJS-E5250

25kV, 200 Amps, Loadbreak Elbow, Built in Jacket Seal, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 2/0 Stranded/Compressed, 3/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instruction Sheet and Crimp Chart.
15/25kV, 600 Amp, Direct Test Elbow with Cold-Shrinkable Jacket Seal, DeadBreak, Cable Insulation 1.515-1.780 inches, Aluminum Compression Lug, Conductor Size 1000 Stranded/Compressed

K655DLR-N0410-S

15/25kV, 600 Amp, Direct Test Elbow with Cold-Shrinkable Jacket Seal, DeadBreak, Cable Insulation 1.515-1.780 inches, Aluminum Compression Lug, Conductor Size 1000 Stranded/Compressed
600 Amp, 15/25kV, 600 Series Straight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0. S - Cold Shrinkable Jacket Seal.

K656SR-G2240-S

600 Amp, 15/25kV, 600 Series Straight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0. S - Cold Shrinkable Jacket Seal.

Frequently Asked Questions

What is the significance of RUS acceptance for this product?

RUS acceptance from the USDA authorizes its use in rural infrastructure construction and improvements.

What standards and certifications does the elbow meet?

The enhanced Elastimold loadbreak elbow is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance.

What are the voltage and current ratings of this elbow?

The Elastimold loadbreak elbow is rated for 200 amps and is available for 15 kV and 25 kV series applications.

What are the voltage and current ratings of this elbow?

The Elastimold loadbreak elbow is rated for 200 amps and is available for 15 kV and 25 kV series applications.

What standards and certifications does the elbow meet?

The enhanced Elastimold loadbreak elbow is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance.

What is the significance of RUS acceptance for this product?

RUS acceptance from the USDA authorizes its use in rural infrastructure construction and improvements.

What standards and certifications does the elbow meet?

The enhanced Elastimold loadbreak elbow is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance.

What is the significance of RUS acceptance for this product?

RUS acceptance from the USDA authorizes its use in rural infrastructure construction and improvements.

What are the voltage and current ratings of this elbow?

The Elastimold loadbreak elbow is rated for 200 amps and is available for 15 kV and 25 kV series applications.

Is an integral jacket seal available for this product?

Yes, the enhanced Elastimold 200 amp loadbreak elbow offers an optional integral jacket seal.

How to Install the 262LR Loadbreak Elbow Connector

This guide provides step-by-step instructions for the safe installation and initial setup of the 262LR Loadbreak Elbow Connector, including cable preparation, assembly, and grounding.

Estimated time: 1h 30m

Tools needed:

Probe wrench, Crimp tool (refer to lug chart), Wire brush, Wire strippers, Hotstick (insulated live-line tool), Suitable voltage sensing device (for capacitive test points), Vinyl tape

Supplies needed:

Elbow connector housing, Compression lug, Probe, Lubricant (supplied, do not substitute), Copper wire (No. 14 AWG / 2.5mm or equivalent), Appropriate connector (for neutral to ground), Cold shrink tube (if using sealing kit), Conductive copper tape (if using 200ECS-G2 kit), Silicone lubricant (for test point cap), HV insulated cap(s) or connector(s) (to replace shipping covers)

  1. Ensure Safety and Inspect Components

    DANGER: All apparatus must be de-energized during installation or removal of parts. Do not touch or move energized products. Inspect all package contents and components for damage, proper rating, and compatibility with mating parts. Check the probe threads by threading it into the compression lug; replace if resistance is encountered prior to full assembly.

  2. Prepare the Cable for Termination

    Train the cable to ensure adequate slack for operation. Prepare the concentric neutral wires or grounding braid wire according to your cable type (e.g., pull extra cable 24-26 inches beyond the bushing centerline and bind neutrals 7.75-8 inches back, or connect neutrals to tank ground with a jumper). Unwrap neutral wires to the binding. Cut the excess cable squarely at the centerline of the bushing. If using a sealing kit, slide the cold shrink tube onto the cable loose end first.

  3. Prepare the Cable End and Install Lug

    Remove the shield and insulation 2-1/8 inches (55mm) from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush bare aluminum conductors thoroughly and immediately install the compression lug, rotating it to spread inhibitor. Position the lug so its contact threaded hole aligns with the bushing bore. Crimp the lug starting at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe any excess inhibitor from the lug and cable. Remove the insulation shield 6-7/8 inches (175mm) from the cable end. Bevel the insulation end a maximum of 1/8 inch (5mm). Thoroughly clean the insulation to remove all traces of dirt or excess inhibitor.

  4. Assemble the Elbow Connector

    Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants. Keep the insulation clean. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring it turns freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends.

  5. Ground the Elbow and Neutrals

    Insert one end of a separate copper wire (No. 14 AWG / 2.5mm or equivalent) through the grounding eye on the elbow and twist tightly, taking care not to damage the eye. Twist all concentric neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack in the wires for elbow operation. If using a cold shrink grounding kit, refer to its specific instructions.

  6. Connect Elbow to Bushing Plug

    DANGER: CONFIRM THAT THE TRANSFORMER AND ELBOW ARE DE-ENERGIZED before proceeding. Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. Securely fasten an insulated hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing, then immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock on the elbow connector and bushing interface. DO NOT OPERATE BY HAND.

  7. Perform Voltage Test (262LR Only)

    For 262LR models, you can test for voltage using the integral capacitance test point. Remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device and not directly connected to the conductor. Use a suitable sensing device designed for capacitive test points. Contamination or incorrect equipment can give a false 'no voltage' indication; treat the elbow as energized until confirmed by other means. After testing, clean the inside surface of the cap, lubricate with silicone lubricant, and replace it on the test point.
