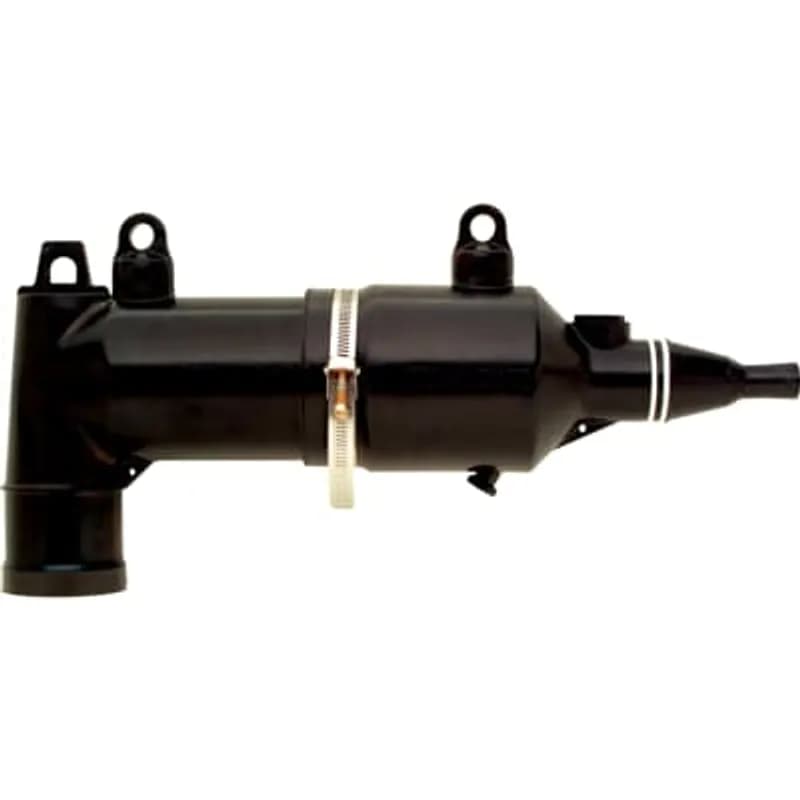

168FLR1-C5270

The 168FLR combines full-range current-limiting fusing with 15kV hot stick operable, loadbreak elbow switching to protect light duty underground distribution systems. It improves reliability without adding separate switchgear.

Yes, the 168FLR Loadbreak Fused Elbow is fully sealed and submersible.

The 168FLR has a 95kV BIL impulse withstand rating, measured with a 1.2 x 50 microsecond wave.

Each kit contains an elbow connector housing, a crimp connector, a probe lug, lubricant tubes, installation instructions, and a crimp chart.

Copper compression lugs are for copper conductors only. Bi-metal compression lugs are suitable for both copper or aluminum conductors.

The 168FLR has built-in voltage test points for quick and convenient blown fuse indication.

The current rating for the 168FLR is between 3 and 80 Amps.

The 168FLR has a symmetrical interrupting capability of 50,000 Amps.

The nominal fuse voltage is 8.3kV, and the maximum rated fuse voltage is 10kV for the 15kV voltage class.

The 168FLR meets applicable portions of IEEE 386, ANSI C37.40, ANSI C37.41, and ANSI C37.47 standards.
