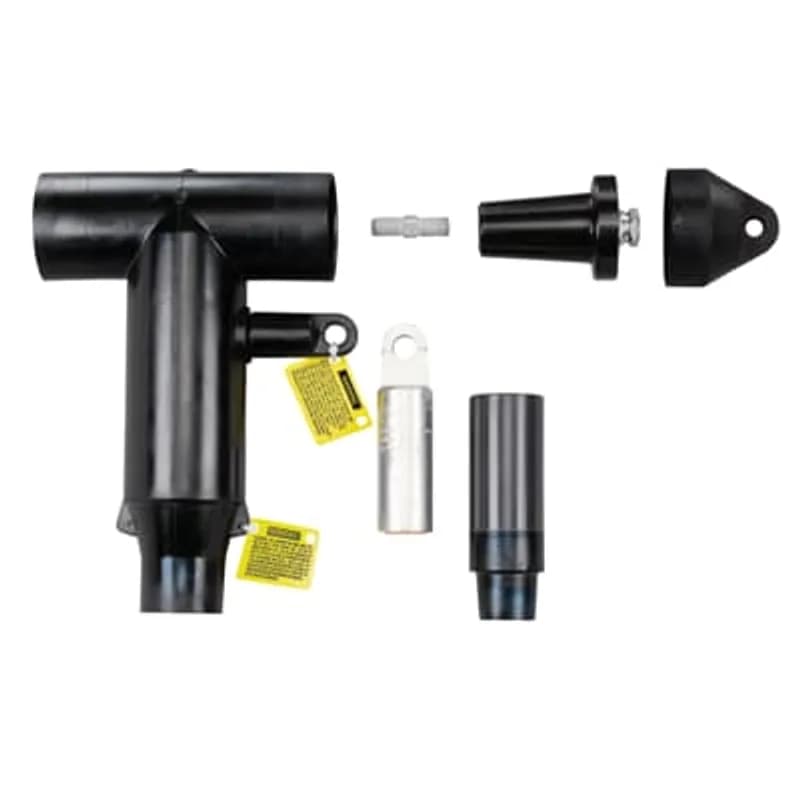

ABB - Installation Products K655DLR-N0410-S - 15/25kV, 600 Amp, Direct Test Elbow with Cold-Shrinkable Jacket Seal, DeadBreak, Cable Insulation 1.515-1.780 inches, Aluminum Compression Lug, Conductor Size 1000 Stranded/Compressed

ABB Installation Products K655DLR-N0410-S 15/25kV, 600 Amp, Direct Test Elbow with Cold-Shrinkable Jacket Seal, DeadBreak, Cable…

UPC: 075114412698


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K655DLR-N0410-S is a 15/25 kV, 600 Amp DeadBreak Direct Test Elbow designed for medium-voltage cable terminations in electrical distribution systems. This elbow connector meets ANSI/IEEE Standard 386 and is fully rated for 15kV and 25kV voltage classes, with maximum phase-to-ground operating voltages of 8.3kV and 16.2kV respectively. It supports phase-to-phase voltages up to 14.4kV and 28kV, with impulse withstand ratings of 95kV and 140kV BIL (1.2 x 50 microsecond wave). The K655DLR-N0410-S features a fully shielded, fully submersible molded rubber housing constructed from 100% peroxide-cured EPDM materials for superior environmental resistance. It includes a direct conductor test point via the Elastimold® Direct Test System (EDTS), allowing safe voltage testing, isolation, and grounding without de-energizing the circuit when used with a 600TC series meter adapter. The insulated port is protected by a shielded cap during normal operation. This elbow is compatible with cable insulation diameters ranging from 1.515 to 1.780 inches and is designed for 1000 kcmil stranded or compressed conductors, utilizing an aluminum compression lug for secure connections. The cold-shrinkable jacket seal ensures a moisture-resistant and contaminant-proof termination, ideal for harsh industrial and utility environments. Installation requires only standard hand tools and is performed in a de-energized state. Key applications include substations, industrial facilities, utility distribution networks, and any medium-voltage system requiring reliable, deadbreak cable terminations. The K655DLR series supports optional accessories for visible external separation, bypass, isolation, dead-ending, grounding, and fault current indication. Rated for continuous 600 Amp operation and 25kA symmetrical momentary current for 10 cycles, this elbow delivers robust performance in demanding electrical distribution applications.
  • 15/25 kV fully rated deadbreak elbow connector per ANSI/IEEE Standard 386
  • 600 Amp continuous current rating with 25kA symmetrical momentary withstand
  • Direct conductor test point via Elastimold® Direct Test System (EDTS) for safe voltage testing
  • Cold-shrinkable jacket seal for moisture and contaminant resistance
  • Compatible with 1000 kcmil stranded/compressed conductors and 1.515-1.780 inch insulation diameter

Specifications

Amperage Rating
600 A
Application
15/25kV, 600 Amps
Color
Black
Conductor Range
1000 kcmil
Connection
Compression
Environmental Conditions
All Weather Conditions, Fully Submersible
Insulation
EPDM Rubber
Material
Housing - EPDM-Rubber
Special Features
Jacket Seal. Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Direct Test Elbow Connector
Voltage Rating
15 to 25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.900 inch to 2.120 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.

755LR-Q0410

600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.900 inch to 2.120 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
600 Amp, 15/25kV, 600 Series Straight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0. S - Cold Shrinkable Jacket Seal.

K656SR-G2240-S

600 Amp, 15/25kV, 600 Series Straight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 0.760 inch to 0.950 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0. S - Cold Shrinkable Jacket Seal.
35kV, 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Shearbolt Lug and Cable Adapter). Tin-Plated Aluminum Shearbolt Lug. Cable Insulation Diameter 1.9 inch to 2.12 inch. Conductor Size Range for Compressed / Stranded / Compacted 1500 kcmil. 35 kV Only.

756LR-QAC05

35kV, 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Shearbolt Lug and Cable Adapter). Tin-Plated Aluminum Shearbolt Lug. Cable Insulation Diameter 1.9 inch to 2.12 inch. Conductor Size Range for Compressed / Stranded / Compacted 1500 kcmil. 35 kV Only.
200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG Compressed Stranded 3/0 or Solid Compact 4/0. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Includes Elbow Connector Housing, Long Bi-Metal Compression Lug, Probe Wrench, Probe, Hose Clamp, Crimp Chart, Installation Instructions and Tube of Lubricant.

168RLR-J5260-SG3

200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG Compressed Stranded 3/0 or Solid Compact 4/0. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. SG3 - Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Includes Elbow Connector Housing, Long Bi-Metal Compression Lug, Probe Wrench, Probe, Hose Clamp, Crimp Chart, Installation Instructions and Tube of Lubricant.
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, #2 Stranded Wire Size. Copper Compression Lug

162LR-B2200

15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, #2 Stranded Wire Size. Copper Compression Lug
Flood Seal, Direct Burial Service Cluster, Kit of Two Assemblies with Finished Cable Length of 12 inches. (Kit1 - CL 3104 and Kit2 - CL 40-2104). Kit1. CL 3104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 1/0 STR AL Cable 15.487 x 1.5, (1) #4 STR AL Cable 15.487 x .765, (1) RRS 2010 - Radiating Rib, Aluminum Compression Splice, 2/0 to 1/0, Aluminum. 3.000 inch Long x Widest Diameter .812 inch. Center Stop. Gray Cap and Yellow Cap, Oxide Inhibiting Compound. Flood Seals assembled on 1/0 and #4 Wires. Kit2. CL 40-2104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 4/0 STR AL Cable 15.487 x 2.05, (1) #4 STR AL Cable 15.487 x .965, RRS 40 - (attached to 4/0 Wire) Radiating Rib, Aluminum Compression Splice, 4/0, Aluminum. 4.300 inch long x .876 inch at widest Diameter. Center Stop. Pink Caps. Contains Oxide Inhibitor. Flood Seals assembled on 1/0 and #4 Wires.

CL 8222 K

Flood Seal, Direct Burial Service Cluster, Kit of Two Assemblies with Finished Cable Length of 12 inches. (Kit1 - CL 3104 and Kit2 - CL 40-2104). Kit1. CL 3104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 1/0 STR AL Cable 15.487 x 1.5, (1) #4 STR AL Cable 15.487 x .765, (1) RRS 2010 - Radiating Rib, Aluminum Compression Splice, 2/0 to 1/0, Aluminum. 3.000 inch Long x Widest Diameter .812 inch. Center Stop. Gray Cap and Yellow Cap, Oxide Inhibiting Compound. Flood Seals assembled on 1/0 and #4 Wires. Kit2. CL 40-2104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 4/0 STR AL Cable 15.487 x 2.05, (1) #4 STR AL Cable 15.487 x .965, RRS 40 - (attached to 4/0 Wire) Radiating Rib, Aluminum Compression Splice, 4/0, Aluminum. 4.300 inch long x .876 inch at widest Diameter. Center Stop. Pink Caps. Contains Oxide Inhibitor. Flood Seals assembled on 1/0 and #4 Wires.
Flood Seal, Direct Burial Service Cluster, Kit of Three Assemblies with Finished Cable Length of 12 inches. (Kit1 - CL 3104, Kit2 - CL 40-210 and Kit3 - CL 40-2104). Kit1. CL 3104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 1/0 STR AL Cable 15.487 x 1.5, (1) #4 STR AL Cable 15.487 x .765, (1) RRS 2010 - Radiating Rib, Aluminum Compression Splice, 2/0 to 1/0, Aluminum. 3.000 inch Long x Widest Diameter .812 inch. Center Stop. Gray Cap and Yellow Cap, Oxide Inhibiting Compound. Flood Seals assembled on 1/0 and #4 Wires. Kit2. CL 40-210 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 4/0 STR AL Cable 15.487 x 2.05, RRS 40 - Radiating Rib, Aluminum Compression Splice, 4/0, Aluminum. 4.300 inch long x .876 inch at widest Diameter. Center Stop. Pink Caps. Contains Oxide Inhibitor. Flood Seals assembled on 1/0 Wires. Kit3. CL 40-2104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 4/0 STR AL Cable 15.487 x 2.05, (1) #4 STR AL Cable 15.487 x .965, RRS 40 - (attached to 4/0 Wire) Radiating Rib, Aluminum Compression Splice, 4/0, Aluminum. 4.300 inch long x .876 inch at widest Diameter. Center Stop. Pink Caps. Contains Oxide Inhibitor. Flood Seals assembled on 1/0 and #4 Wires.

CL 6858 K

Flood Seal, Direct Burial Service Cluster, Kit of Three Assemblies with Finished Cable Length of 12 inches. (Kit1 - CL 3104, Kit2 - CL 40-210 and Kit3 - CL 40-2104). Kit1. CL 3104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 1/0 STR AL Cable 15.487 x 1.5, (1) #4 STR AL Cable 15.487 x .765, (1) RRS 2010 - Radiating Rib, Aluminum Compression Splice, 2/0 to 1/0, Aluminum. 3.000 inch Long x Widest Diameter .812 inch. Center Stop. Gray Cap and Yellow Cap, Oxide Inhibiting Compound. Flood Seals assembled on 1/0 and #4 Wires. Kit2. CL 40-210 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 4/0 STR AL Cable 15.487 x 2.05, RRS 40 - Radiating Rib, Aluminum Compression Splice, 4/0, Aluminum. 4.300 inch long x .876 inch at widest Diameter. Center Stop. Pink Caps. Contains Oxide Inhibitor. Flood Seals assembled on 1/0 Wires. Kit3. CL 40-2104 - Boot plus (2) 1/0 STR AL Cables 15.487 x .965, (1) 4/0 STR AL Cable 15.487 x 2.05, (1) #4 STR AL Cable 15.487 x .965, RRS 40 - (attached to 4/0 Wire) Radiating Rib, Aluminum Compression Splice, 4/0, Aluminum. 4.300 inch long x .876 inch at widest Diameter. Center Stop. Pink Caps. Contains Oxide Inhibitor. Flood Seals assembled on 1/0 and #4 Wires.
35kV, 600 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.370-1.630 inches (34.798-41.402mm), Bi-Metal Lug, Conductor Size 330 - 500kcmil Stranded/Compressed, 600kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Stud, Insulated Plug with Cap, Cable Adapter, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 12.28 x 13.93 inches, 3.37 and 3.83 inch diameters.

756LR-M5330

35kV, 600 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.370-1.630 inches (34.798-41.402mm), Bi-Metal Lug, Conductor Size 330 - 500kcmil Stranded/Compressed, 600kcmil Solid/Compact. Kit Includes Elbow Connector Housing, Stud, Insulated Plug with Cap, Cable Adapter, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 12.28 x 13.93 inches, 3.37 and 3.83 inch diameters.

Frequently Asked Questions

How is the K655DLR catalog number selected?

The catalog number is selected by determining the cable's insulation diameter, choosing the connector material type, and selecting the compression lug code based on conductor size.

What is the K655DLR Direct Test Elbow used for?

The K655DLR Direct Test Elbow is a 15/25kV, 600 Amp deadbreak elbow connector used for isolation, testing, and grounding with its Direct Test System (EDTS). It allows for direct conductor voltage testing when the circuit is de-energized.

What standards does the K655DLR elbow meet?

The K655DLR Direct Test Elbow meets ANSI/IEEE Standard 386, Latest Revision.

What are the 15kV operating voltage limits?

For 15kV, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase operating voltage is 14.4kV.

What is the continuous current rating for the 15kV class?

The continuous current rating for the 15kV voltage class is 600 Amps.

What are the 28kV operating voltage limits?

For 28kV, the maximum phase-to-ground operating voltage is 16.2kV, and the maximum phase-to-phase operating voltage is 28kV.

What are the key features of the K655DLR elbow?

The K655DLR is a fully rated 15/25kV, 600 Amp deadbreak elbow with a fully shielded, submersible molded rubber housing. It features 100% peroxide-cured construction and a direct conductor test point.

Can the K655DLR elbow be connected while energized?

No, the K655DLR elbow can only be easily connected or disconnected using standard hand tools and equipment in a de-energized state.

What optional accessories are available for the elbow?

Optional accessories allow for visible external separation, by-pass, isolation, dead-ending, grounding, testing, and adding taps, surge arrestors, or fault current indicators.

What items are included in the K655DLR kit?

Each kit contains an elbow connector housing, copper compression lug, stud, insulated plug with cap, lubricant tubes, cable adapter, and installation instructions.

How to Install the K655DLR-N0410-S Direct Test Elbow Connector

Instructions for installing and connecting the K655DLR-N0410-S Direct Test Elbow Connector to a high voltage apparatus.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Hotstick tool, Crimping tool

Supplies needed:

Mounting screws, Terminal connectors, Lubricant, Vinyl plastic tape, Tape retainer, Tape marker, Grounding wire, Suitable connector for ground

  1. Prepare the Cable

    Position the cable in its final location with enough slack. For concentric neutral cable, unwind the wires. Cut the cable 1-3/4” (45mm) from the center line of the mating product. Clean the outer surface of the cable for 24” (610mm). Follow specific instructions for removing outer jacket, shield wires, flat metallic tape shield, fabric tape shield, longitudinally corrugated shield, UNISHIELD cable, lead sheath cable, or semi-con shield as applicable to your cable type. Ensure all dimensions are followed precisely. For UNISHIELD or lead sheath cable, a 10TL cable shield adapter is required; refer to its specific instructions.

  2. Install the Cable Adapter

    Bevel the end of the cable insulation at a 45° angle, approximately 1/4” (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.

  3. Prepare the Conductor

    Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Ensure the conductor is not nicked. The exposed conductor length should be between 4-3/8” (111mm) and 4-11/16” (119mm). If not, redo the assembly.

  4. Install the Compression Lug

    For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Measure the 'Check Dimension' before crimping; it must be less than 6-1/2” (165mm). Crimp the lug according to its instructions. Wipe excess inhibitor. The distance from the end of the compression lug to the cable adapter after crimping should be between 6-1/2” to 7-1/4” (165mm – 184mm).

  5. Install the Elbow

    Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.

  6. Connect to Mating Product

    WARNING: DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. Remove protective caps from the elbow and the mating part. If the mating part is not equipped with a stud, hand-tighten the supplied threaded stud into it. Clean and lubricate both the elbow and the mating part. Push the elbow onto the mating part, aligning the compression lug hole with the stud. Clean and lubricate the mating part for the opposite end of the elbow, insert it, engage threads, and hand-tighten. Torque the mating part according to its specific instructions.

  7. Install Insulating Plug (If Applicable)

    If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap. Place the cap on the elbow and push down firmly until it snaps into place. Follow voltage test directions.

  8. Ground the Cable Shield

    Insert one end of a wire (ampacity at least No. 14 AWG copper) through the grounding eye and twist to form a small loop. Connect this wire to ground using a suitable connector. The cable shield must be grounded according to the instructions of the grounding device used, or an alternate method if no device is used. It is recommended to waterproof the cable jacket at this point to prevent moisture ingress.
