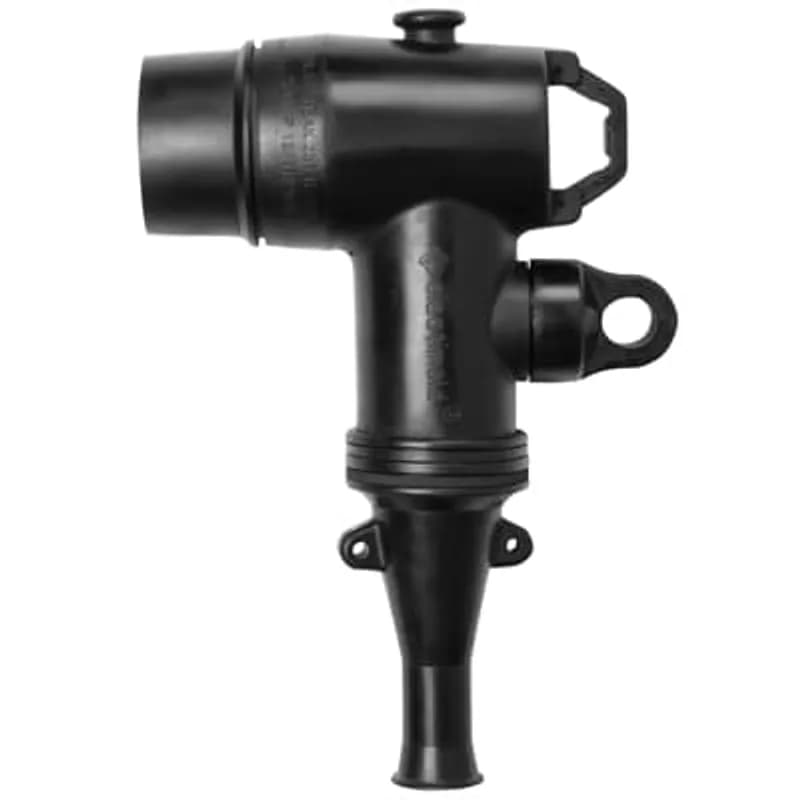

ABB Installation Products 252LR-B5240 25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter…
UPC: 075114334921
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 25 kV voltage rating
- 200 Amp current rating
- Deadbreak elbow connector design
- Integrated test point for circuit testing
- Bi-metal lug for conductor sizes 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid
Specifications
Amperage Rating | 200 A |
Application | 15/25kV, 200 Amp Deadbreak Connection |
Color | Black |
Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
Connection Type | Deadbreak Elbow Connector |
Current Rating | 200 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Material | Bi-Metal |
Series | 252LR |
Size | Cable Insulation Diameter - .635-.905 inch |
Size | Cable Insulation Diameter 0.635-0.905 inch |
Special Features | Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector with Test Point |
Voltage Rating | 25 kV |
Voltage Rating | 15 to 25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.6700 L |
Package Weight (Metric) | 0.7580 kg |
262LR-B5240
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug.
252LR-C5240
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .805-1.060 inch Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
756LR-K0250-SG3
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG or kcmil, Compressed Stranded 250 Compacted, Solid 3/0. Cold-Shrinkable Jacket with Copper Braid and Constant Force Spring.
K655LR-J5300
15/25kv, 600 Amps, Deadbreak Elbow without Test Point. Bi-Metal Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size kcmil Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185.
162LR-D5220-SG3
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, #2 Stranded/Compressed or #1 Solid/Compact Wire Size, Bi-Metal Compression Lug, Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
K655DLR-G0240-S
15/25kV, 600 Amp, Elbow with Direct Test and Sealing Kit. Cable Insulation Diameter - .760-.950 inch, Aluminum Lug, Conductor Size 250 - 1/0 Stranded/Compressed or 2/0 Compact/Solid.
K656LR-G0250-SG2
15/25kV, 600 Amp, Elbow with Test Point, includes Insulating Plug, Cap, Stud, Lug and Cable Adapter. With Cold Shrinkable Seal with Copper Rod and Constant Force Spring. Cable Insulation Diameter - .760-.950 inch, Bi-Metal Lug, Conductor Size 250 - 2/0 Stranded/Compressed or 3/0 Compact/Solid.Frequently Asked Questions
What materials are the compression lugs made from?
Compression lugs are available in copper, suitable for copper conductors, or bi-metal, suitable for both copper and aluminum conductors.
What standards does the connector meet?
The connector meets ANSI/IEEE Standard 386, Latest Revision.
What is the continuous current rating?
The continuous current rating for both 15kV and 25kV voltage classes is 200 Amps.
What if my cable's OD is less than 0.565 inches?
For cables with an outer diameter less than 0.565 inches, you must order cable adapter 160CA-XX.
What is the purpose of the 160CA cable adapter?
The 160CA adapter is designed for small cables with insulation outer diameters between 0.495 in. to 0.685 in. It is used with 165/166LR elbow size housings.
What are the voltage ratings for the 25kV class?
For 25kV class, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV. It has a 125kV BIL impulse withstand.
Are sealing and grounding kits recommended?
Yes, for safety purposes, a sealing and grounding kit is highly recommended with the deadbreak elbow.
What are the voltage ratings for the 15kV class?
For 15kV class, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV. It has a 95kV BIL impulse withstand.
What is the purpose of the 160CA cable adapter?
The 160CA adapter is designed for small cables with insulation outer diameters between 0.495 in. to 0.685 in. It is used with 165/166LR elbow size housings.
What standards does the connector meet?
The connector meets ANSI/IEEE Standard 386, Latest Revision.
How to Install the 252LR Deadbreak Elbow Connector
This guide provides step-by-step instructions for the safe and proper installation of the Elastimold 252LR Deadbreak Elbow Connector, designed for terminating UD cable with concentric neutral and semi-con shielding to 25kV class deadbreak bushings.
Estimated time: 1h
Tools needed:
Wrench, Crimp tool, Wire brush, Hot stick, Wire strippers, Cable cut back template
Supplies needed:
252LR Elbow Connector Housing, Compression Lug, Probe, Probe Contact, Lubricant (supplied), Hold-down Bail, UD cable (concentric neutral and semi-con shielding), No. 14 AWG / 2.5mm copper wire, Appropriate connector (for neutral to ground), HV insulated cap(s) or connector(s) (if needed)
- Perform Initial Safety Checks and Inspections
DANGER: Ensure all apparatus is de-energized before starting installation. Verify the work area is safe and free from energized products. Confirm all package contents are complete and undamaged. Inspect the elbow housing cable entrance size and compression lug size for proper fit with the cable. Check the probe threads by hand-threading into the compression lug; replace damaged components if resistance is met. Inspect all parts for damage, correct rating, and compatibility with mating parts. If the test point cap is not installed, lubricate the cap and test point, then install the cap. If the product came with shipping covers, remove them and replace with appropriate HV insulated caps or connectors.
- Train the Cable
Train the UD cable as shown in the diagram to ease operation, ensuring a minimum of 20 inches (508.0mm) beyond the end of the cable pad mount transformer. Cut any excess cable squarely at the center line of the bushing.
- Prepare the Cable
Unwrap and bind the concentric neutral wires 8-1/2 inches (216.0mm) back from the end of the cable. Remove the shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush the bare aluminum conductors and immediately install the compression lug. Rotate the lug to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug starting at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable. Remove the semi-con shield as shown in the template. Bevel the insulation end a maximum of 1/8 inch (3.2mm). Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble the Elbow
Clean and lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. Do not use substitute lubricants. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess silicone lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring not to cross-thread. Tighten with the supplied wrench until the wrench bends.
- Assemble the Hold-down Bail
Place the hold-down bail into the hold-down bracket. Compress the bail and insert it into the brackets.
- Connect the Concentric Neutral
Insert one end of a separate No. 14 AWG (2.5mm) copper wire through the grounding eye on the elbow. Twist it tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Ensure adequate slack in the wires for elbow operation.
- Connect the Elbow and Bushing Plug
DANGER: Clean and lubricate the receptacle portion of the elbow connector and the mating bushing ONLY if both the transformer and elbow are known to be de-energized. Use a fully insulated hot stick to place the elbow onto the bushing. Do not operate by hand. Do not separate if energized.
- Secure the Elbow with the Bail
Pull the hold-down bail up over the crown or top of the elbow so that the eyebolt on the bail is directly over the operating eye. Tighten down on the elbow locator by turning the eyebolt clockwise. Adjust the nut on the eyebolt until it allows the eyebolt to seat securely in the locator, acting as a stop to prevent excessive force.
