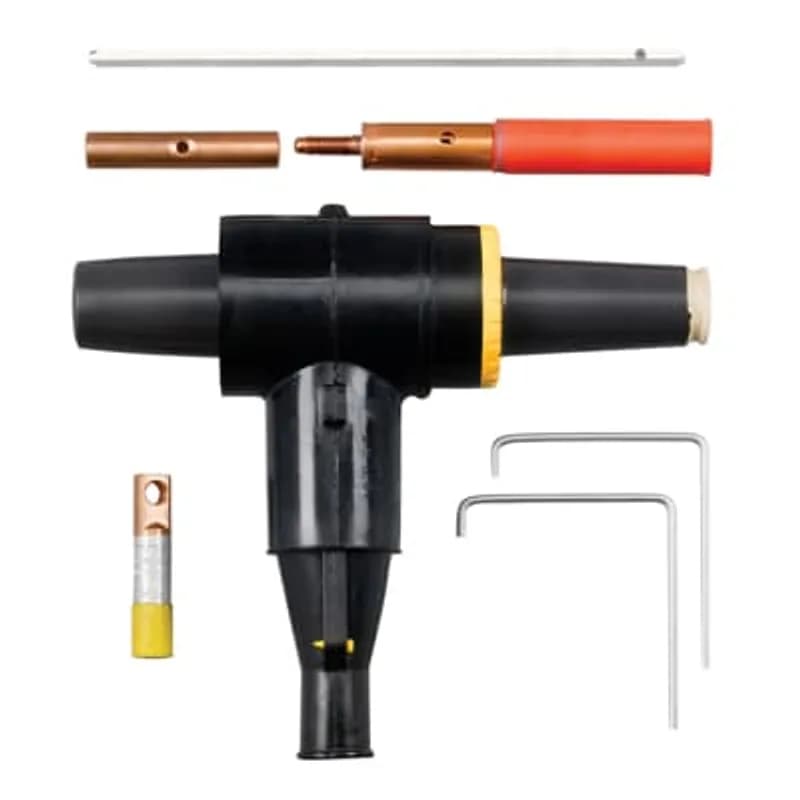

ABB Installation Products 167LRT-F5220-SG3 15kV, 200 Amps, Loadbreak, Elbow-T, with Sealing Kit, Cable Insulation Diameter .640…
UPC: 075114318846
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15kV, 200A deadbreak loadbreak elbow-T connector rated per ANSI/IEEE Std. 386
- Fully-shielded, fully submersible molded rubber housing for environmental protection
- Loadbreak tap point for safe phasing, grounding, testing, or arrester protection (10kA symmetrical momentary/fault close)
- Bi-metal compression lug accepts #2 stranded/compressed or #1 solid/compact conductors (0.640–0.820" insulation diameter)
- Includes sealing kit to prevent moisture ingress; polyethylene jacket for dielectric strength
Specifications
Amperage Rating | 200 A |
Application | 15kV, 200 Amps |
Color | Black |
Conductor Range | #2 STR/COMPR AWG , #1 SOL/COMPT AWG |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Housing - EPDM-Rubber |
Size | Cable Insulation Diameter 0.640 inch to 0.820 inch |
Special Features | Includes 02800X Bi-Metal Contact |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Bolted Elbow with Tap |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

K655LR-F5220
25kV, 600 Amp, Deadbreak Elbow, No Sealing Kit, without Test Point, Cable Insulation .640-.820 inches, Bi-Metal Lug, Conductor Size AWG Compressed/Stranded #2 or Compacted/Solid #1 or mm2 Compact 35.
167LRT-G5220-SG3
200 Amp, 15kV, Loadbreak Bolted Elbow with Tap, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #2 or Solid/Compact #1. 200ECS-G3 Jacket Seal and Grounding Kit Included. Includes 02800X Bi-Metal Contact.
756LR-M0270
35kV, 600 Amp, Deadbreak Elbow, Cable Insulation Diameter 1.370 - 1.630 inches, Aluminum Compression Lug. Conductor Size AWG Compressed/Stranded 4/0 or Solid/Compact 250, No Sealing Kit
261LR-B5220-S
25/28kV, 200 Amp, Elbow Connector, Loadbreak, with Sealing Kit, No Test Point, Cable Insulation Diameter .635-.905 inches, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid.
756LR-L0330
35kV, 600 Amp, Deadbreak Elbow, with Test Point, includes Insulated Plug, Cap, Stud, Lug and Cable Adapter. No Sealing Kit. Cable Insulation Diameter 1.180-1.465 inches, Aluminum Lug, Conductor Size 500 Stranded/Compressed.
261LR-C5270-SG3
25/28kV, 200 Amp, Loadbreak Elbow, without Test Point, Cable Insulation Diameter .805-1.060 inches, Bi-Medal Lug, Conductor Size 4/0 AWG Stranded Compressed or 250 kcmils Compact/Solid. With SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring.
756LR-P0380-SG3
15/25/35kV, 600 Amp, Deadbreak Elbow, with Test Point (includes Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation Diameter 1.725-1.935 inches, Aluminum Lug, Conductor Size 750 kcmils Stranded Compressed, With SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring.
252LR-C5220
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, No Sealing Kit, Cable Insulation Diameter - .805-1.060 inch, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Solid/Compact. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.Frequently Asked Questions
What is the voltage class of the 167LRT?
The 167LRT belongs to the 15kV Voltage Class.
How is the 167LRT installed?
The 167LRT is installed using the installation tool that is supplied with the product kit.
What safety precaution is needed for the tap point?
The loadbreak-rated tap point must be covered with an insulated cap when it is not in use.
What is the impulse withstand rating of the 167LRT?
The impulse withstand rating (BIL) is 95kV (1.2 x 50 microsecond wave).
What standard does the 167LRT conform to?
The 167LRT conforms to ANSI/IEEE Standard 386 for its ratings. It mates with bushing wells conforming to ANSI Std. 386, Fig. 3.
What is included in the 167LRT Bolted Elbow kit?
The kit includes the elbow connector housing, a compression lug, a stud extender, lubricant, an installation tool, a wrench, and installation instructions.
What are the current ratings for the 167LRT?
The 167LRT has a continuous and loadbreak current rating of 200 Amps. It also has a 10kA Sym momentary and fault close rating for 10 cycles.
What is the maximum operating voltage for the 167LRT?
The maximum phase-to-ground operating voltage is 8.3 kV, and the maximum phase-to-phase voltage is 14.4 kV.
What is the primary function of the 167LRT product?
The 167LRT is a loadbreak elbow connector with a loadbreak tap, rated as a 200 AMP, 15kV deadbreak connector.
What is the maximum operating voltage for the 167LRT?
The maximum phase-to-ground operating voltage is 8.3 kV, and the maximum phase-to-phase voltage is 14.4 kV.
How to Install the Elastimold 167LRT Loadbreak Bushing Tap
This guide provides step-by-step instructions for the safe and proper installation of the Elastimold 167LRT Loadbreak Bushing Tap, including cable preparation, assembly, and connection procedures. Ensure all apparatus is de-energized before beginning installation.
Estimated time: 1h 30m
Tools needed:
Wrenches, Installation Tool, Wire brush, Crimp tool
Supplies needed:
Lubricant (Do Not Substitute), No. 14 AWG (2.5mm) copper wire or equivalent, Appropriate connector for neutral wires, Insulated Cap
- Train and Cut Cable
Train the UD cable as shown in the diagram to facilitate future operation. Cut the excess cable squarely at the center line of the bushing, ensuring a minimum of 20 inches beyond the end of the cable.
- Prepare Cable End
Unwrap and bind the concentric neutral wires 8-1/2 inches back from the cable end. Carefully remove the shield and insulation from the cable end, cutting squarely and ensuring not to nick the conductor. Wire brush the bare aluminum conductors and immediately install the compression lug, rotating it to spread the inhibitor. Align the compression lug's contact threaded hole with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Wipe off any excessive inhibitor. Remove the semi-con shield and bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all conductive residue.
- Assemble Well Contact
Thread the well contact onto the bushing well stud by hand, being careful to avoid cross-threading. Use a wrench to tighten the contact until the wrench bends, indicating proper assembly torque.
- Install Bushing Tap Housing
Remove the protective cap from the bushing tap and retrieve the socket contact stored inside the housing. Lubricate the cable insulation and the inside of the bushing housing with the supplied lubricant; do not substitute. Slide the bushing tap onto the cable using a back-and-forth twisting motion, then wipe off any excess grease. Align the bushing with the compression lug hole and assemble the socket contact into the bushing tap, ensuring the socket contact stud passes through the lug hole.
- Mount Bushing Tap to Apparatus
Inspect the apparatus bushing well to ensure it is dry and free from contaminants. Lubricate the bushing well interface area of the bushing tap with the supplied lubricant. Place the lubricated bushing tap into the apparatus bushing well. Insert the installation tool into the bore of the bushing tap until it is fully seated. Insert a wrench through the tool's wrench hole and turn clockwise until the wrench bends, indicating proper assembly torque. Remove the wrench and installation tool.
- Connect Concentric Neutral
Insert one end of a No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the bushing tap and twist it tightly, being careful not to damage the eye. Twist the concentric neutral wires together and connect them to ground using an appropriate connector.
- Prepare for Mating Product or Cap
Thoroughly wipe the bushing tap interface clean of contaminants and apply a light, uniform coat of supplied lubricant, working it into the surface. If installing a mating product, follow its specific instructions. If not immediately mating, replace the shipping cap with an appropriate insulated cap or grounding elbow connector. Do not energize or submerge the apparatus with only the shipping cap installed, as it is not insulated or watertight.
