Contact for Pricing

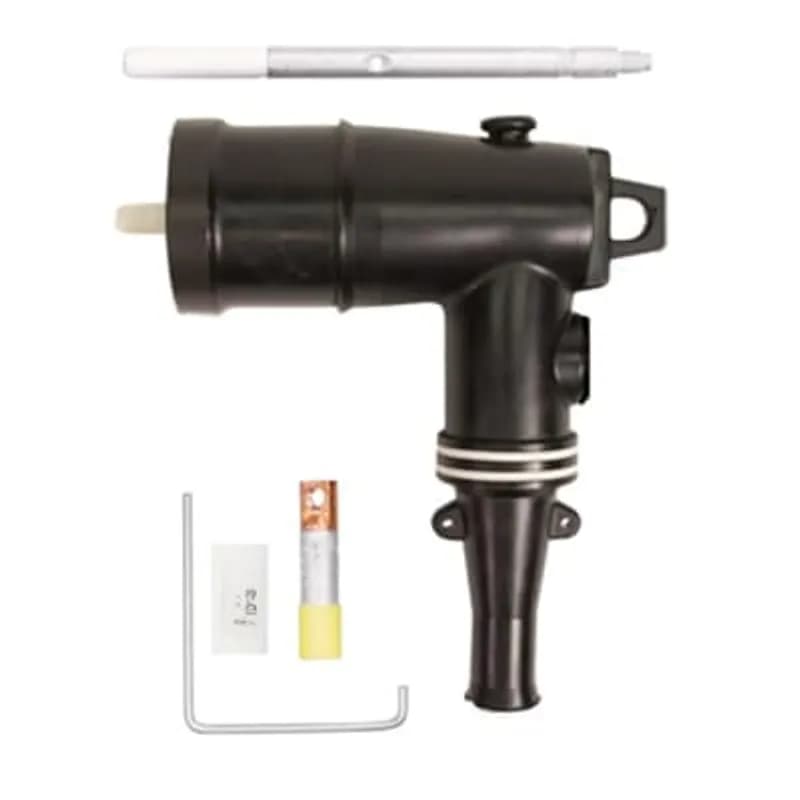

Overview
- 15KV rated, 200 Amp continuous current capacity
- Accommodates cable insulation diameters from 0.635" to 0.905"
- Bi-metal compression lug for stranded #2/AWG or solid #1 conductors (33.62 mm²)
- SG3 cold-shrinkable seal with copper braid and constant-force spring for reliable termination
- Designed for loadbreak and make-break operations on energized 15KV systems
Specifications
Amperage Rating | 200 A |
Application | The 161LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | #2 STR/COMPR AWG , #1 SOL/COMPT AWG |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Length | 9.03 in |
Length | 229.362 mm |
Material | Housing - EPDM-Rubber |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector |
Voltage Rating | 15 kV |
Width | 7.44 in |
Width | 188.976 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
CI16-90-AT8PL
Hinged Connector Interface Fitting, Standard Profile Plug, 90 Degree Elbow with 360 Degree Swivel, 8-Way Ampseal Automotive Connector to Conduit, Conduit Size NC16/NW13, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.Frequently Asked Questions
Does the product have RUS acceptance?
Yes, it has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA), authorizing its use in rural infrastructure.
What standards and certifications does the elbow meet?
The enhanced Elastimold 200 amp loadbreak elbow is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance.
What safety features are enhanced in the elbow?
Enhanced safety includes improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
What is the Elastimold 200 amp loadbreak elbow?
It is a 200 amp loadbreak elbow available in 15 kV and 25 kV series, designed for easier switching.
What safety features are enhanced in the elbow?
Enhanced safety includes improved insulation for 15 kV elbows, rigid probe support, a no-stick interface with Elastimold bushings, a robust stainless-steel pulling eye, and dual grounding eye positions.
Does the product have RUS acceptance?
Yes, it has Rural Utilities Service (RUS) acceptance from the U.S. Department of Agriculture (USDA), authorizing its use in rural infrastructure.
What standards and certifications does the elbow meet?
The enhanced Elastimold 200 amp loadbreak elbow is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance.
What is the Elastimold 200 amp loadbreak elbow?
It is a 200 amp loadbreak elbow available in 15 kV and 25 kV series, designed for easier switching.
Is the elbow compatible with Elastimold bushings?
Yes, it features a no-stick interface when used with Elastimold bushings, which has been tested by NEETRAC.
How does the elbow offer increased flexibility?
It offers increased flexibility through additional sizes, improved wider cable ranges, an easy order system, and an optional integral jacket seal.
