UPC: 783786657575
Contact for Pricing
Overview

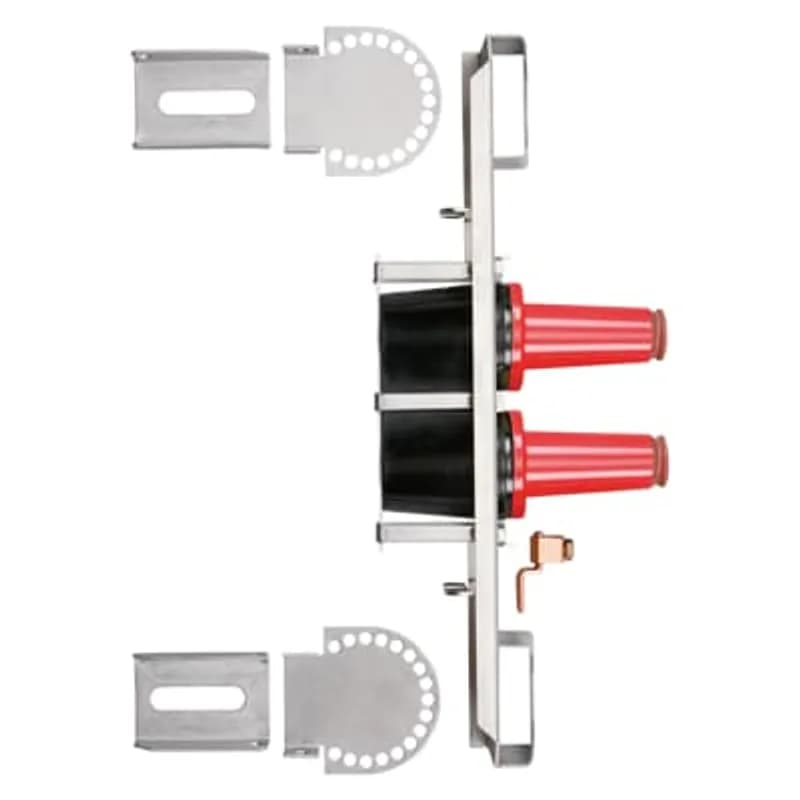

- 15kV Voltage Rating for medium-voltage applications
- 200 Amp Current Rating for substantial power handling
- 2-Point Loadbreak Junction for controlled circuit disconnection
- Durable Stainless Steel Bracket for corrosion resistance
- Manufactured by ABB Installation Products (SKU: 164J2)
Specifications
Application | Provide a fully shielded, fully submersible, separable, insulated assembly designed for energized operation. They are suitable for use on 15-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation. Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass |
Material | EPDM-Rubber and Stainless Steel Mounting Brackets and Hardware |
Size | Mounting Plate 17.50 inches (444.5 mm) long. 8.10 inch (205.8 mm) Tall, 3.62 inch (92.0mm) wide |
Special Features | 15kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Stainless Steel Mounting brackets and hardware |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | 2-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 7.9400 L |
Package Weight (Metric) | 3.6020 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
164FT
15kV, 200 Amp, Loadbreak Feed-Thru. 6.87 inch long x 5.93 inch wide. 3.12 inch Center to Center. Uses Integral Parking Stand Mount. Has Eyebolt. The Feed-Thru is designed to mate with the following Elastimold products - 15kV Family of Elbow Connectors, 370TR test rod, 160GKR Grounding Elbow, 160DR or 160DRG Insulated Cap.
168DRG
15kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, Equipped with insulated cuff. Has Brass Probe. Ground Lead #14 AWG. 3.00 inch Diameter, 7.88 inch Length.Frequently Asked Questions
What is the voltage rating of the ABB 164J2 junction?
The ABB 164J2 junction has a voltage rating of 15kV.
What is the current rating for this loadbreak junction?
This loadbreak junction is rated for 200 Amps.
What material is the bracket of the 164J2 made from?
The bracket for the ABB 164J2 is constructed from stainless steel.
How many poles does the ABB 164J2 junction have?
The ABB 164J2 is a 2-pole loadbreak junction.
Who manufactures the 164J2 loadbreak junction?
The 164J2 loadbreak junction is manufactured by ABB - Installation Products.
How to Install and Operate the 160DRG/167DRG Insulated Cap
This guide provides instructions for the safe installation, lubrication, and operation of the ELASTIMOLD 160DRG and 167DRG insulated caps with ground lead on 15kV class loadbreak bushing interfaces.
Estimated time: 30m
Tools needed:
Hotstick
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved)
- Prepare for Installation and Connect Ground Lead
DANGER: Ensure all apparatus is de-energized during installation or removal of parts. Inspect all components for damage, proper rating, and compatibility with mating products. Connect the free end of the electrostatic grounding wire to the system ground, leaving enough slack for hot-stick operation. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation.
- Lubricate the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or an ELASTIMOLD approved lubricant. DO NOT SUBSTITUTE, as other lubricants may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install the Insulated Cap onto the Bushing
Firmly attach a fully insulated eight-foot long hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion. Make certain it is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
- Remove the Insulated Cap (if needed)
To remove the insulated cap, first attach a hotstick to its pulling eye. Before pulling, rotate the insulated cap slightly clockwise while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion to complete the operation. Remove the electrostatic grounding wire of the insulated cap from the system ground. Replace the protective cover on the insulated cap to keep its internal surface clean.
