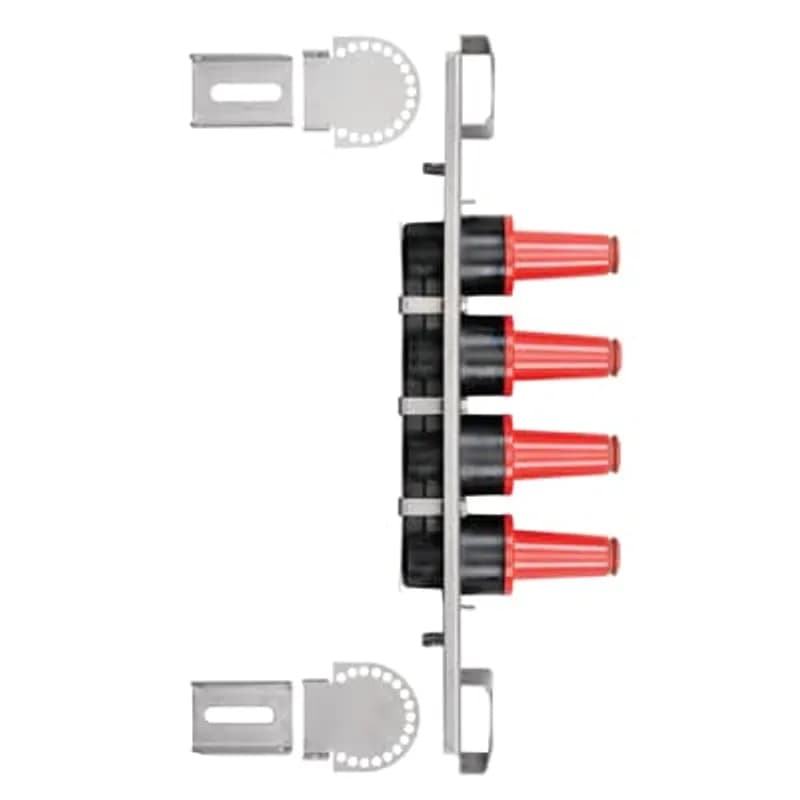

ABB - Installation Products 164J4 15kV 200 Amp, Loadbreak 4-Point Junction with Stainless Steel Bracket
UPC: 783786630301
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- 15kV Voltage Rating
- 200 Amp Current Rating
- 4-Point Configuration
- Loadbreak Connection Type
- Composite Material with Stainless Steel Bracket
Specifications
Application | 15kV, 200 Amps |
Material | EPDM-Rubber |
Size | Bracket Length 23.74 inch, Depth 9.41 inch |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Loadbreak 4-Point Junction |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 11.5900 L |
Package Weight (Metric) | 5.2570 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
164FT
15kV, 200 Amp, Loadbreak Feed-Thru. 6.87 inch long x 5.93 inch wide. 3.12 inch Center to Center. Uses Integral Parking Stand Mount. Has Eyebolt. The Feed-Thru is designed to mate with the following Elastimold products - 15kV Family of Elbow Connectors, 370TR test rod, 160GKR Grounding Elbow, 160DR or 160DRG Insulated Cap.
Frequently Asked Questions
What is the Corona Extinction voltage?
The Corona Extinction voltage is 11kV AC at 3pC sensitivity.
What is included in the 164J4 kit?
The kit contains one basic molded junction, four protective shipping caps, two tubes of lubricant, and one installation instruction.
What is the Impulse Withstand (BIL) rating?
The Impulse Withstand (BIL) rating is 95kV (1.2 x 50 microsecond wave).
What standards does the 164J4 junction meet?
The 164J4 junction meets ANSI/IEEE Standard 386, Latest Revision.
What is the maximum phase-to-phase voltage?
The maximum phase-to-phase voltage for the 15kV class junction is 14.4kV.
What is the operating voltage phase-to-ground?
The operating voltage phase-to-ground for the 15kV class junction is 8.3kV.
What is the continuous and loadbreak current rating?
The continuous and loadbreak current rating for the junction is 200 Amps.
What is the voltage class of the 164J4 junction?
The 164J4 junction is designed for 15kV voltage class distribution systems.
What is the product model number?
The product model number is 164J4.
What is the product model number?
The product model number is 164J4.
How to Install the 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides step-by-step instructions for the safe installation of the ELASTIMOLD 160DRG and 167DRG insulated caps with ground lead on 15kV class loadbreak bushing interfaces. Ensure all apparatus are de-energized before starting.
Estimated time: 15m
Tools needed:
Eight-foot fully insulated hotstick
Supplies needed:
160DRG or 167DRG Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- Perform Initial Safety Checks and Inspection
Ensure all apparatus are de-energized before beginning installation. Inspect the contents of the package for completeness and damage. Verify all components, including the insulated cap and ground lead, fit properly with the cable and/or mating products. Confirm you have all required tools, especially an eight-foot long, fully insulated hotstick, and maintain cleanliness throughout the procedure. This product must be installed by competent personnel trained in high voltage electrical equipment safety practices.
- Connect Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute other lubricants as they may be harmful. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Attach Insulated Cap to Bushing
Firmly attach the hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
