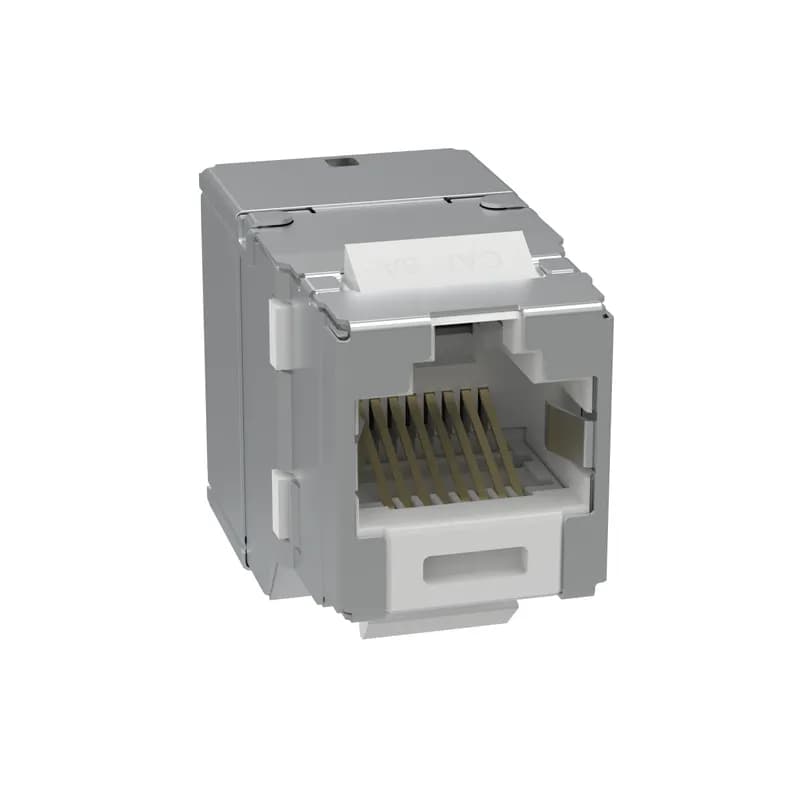

Panduit SKJ6X88WH-C - The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is white with a metal shielding wrap, packaged 100 jacks to a box.

Panduit SKJ6X88WH-C The Shielded Keystone Jack Module provides an industry standard keystone jack footprint…

UPC: 613056913646


Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Panduit SKJ6X88WH-C is a Category 6/Class E shielded keystone jack module designed for high-performance network infrastructure. It exceeds ANSI/TIA-568.2-E Category 6 and ISO 11801 Class E channel requirements at swept frequencies up to 250 MHz, and component requirements up to 250 MHz. This module is engineered to terminate 4-pair, 22-26 AWG shielded twisted pair cable with conductor insulation diameters up to 0.06 inches (1.5mm) and overall cable diameters from 0.20 to 0.33 inches (5.08mm to 8.38mm). The jack features universal labeling for T568A and T568B wiring schemes, utilizing a standard punchdown tool for conductor termination. It meets ANSI/TIA-1096-A and IEC 60603-7 standards, with contacts plated in 50 microinches of gold for superior performance. The SKJ6X88WH-C is compliant with IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 Power over Ethernet (PoE) and Power over HDBaseT (PoH) up to 100 watts. It is c(UL)us listed under UL 1863 (communications circuit accessory) and UL 2043 (suitable for air-handling spaces). The integral shield provides a 360° conductive path to ground without additional assembly. Each jack module is individually serialized for traceability and 100% tested for component performance, ensuring confidence in critical electrical performance. The RJ45 interface offers a quick, plug-and-play connection and is backwards compatible. Constructed for robustness, it is rated to 2,500 mating cycles. Operating temperature range is 14°F to 167°F (-10°C to 75°C). Trade Agreements Act (TAA). Packaged 100 jacks per box. Manufacturer: Panduit. SKU: SKJ6X88WH-C.
  • Category 6/Class E performance, exceeding ANSI/TIA-568.2-E and ISO 11801 requirements up to 250 MHz.
  • Terminates 22-26 AWG shielded twisted pair cable with universal T568A/T568B labeling.
  • Meets IEEE 802.3af/802.3at and 802.3bt type 3/4 PoE and PoH up to 100 watts.
  • Integral shield provides 360° grounding; 100% performance tested and individually serialized for traceability.
  • 100% tested for component performance, individually serialized

Specifications

Cable Entry
T568A/T568B
Color
White
Depth
NA In.
Family Color
White
Model
Keystone
Standard
Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz. Meets ANSI/TIA-568-C
Standard
Exceeds ANSI/TIA-568.2-E; ISO 11801; IEC 60603-7; IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Standard
Exceeds ANSI/TIA-568.2-E;IEC 60603-7;IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.;ISO 11801
Type
Jack Module
Width
0.65 IN
Width
0.65 In.
Package Dimensions (L x W x H)
10.8 IN x 7.5 IN x 3.7 IN
Package Dimensions (L x W x H)
27.432 cm x 19.05 cm x 9.398 cm
Package Weight (Imperial)
2.4000 L
Package Weight (Metric)
1.0886 kg
The 24 fiber indoor/outdoor stranded tube cable is OS2, Low Smoke Zero Halogen (LSZH) rated and features 250 m fibers.

FSNL924Y

The 24 fiber indoor/outdoor stranded tube cable is OS2, Low Smoke Zero Halogen (LSZH) rated and features 250 m fibers.
Rack Access Kit NetBotz 125

NBHN125S

Rack Access Kit NetBotz 125
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is white with a metal shielding wrap.

SKJ6X88WH

The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is white with a metal shielding wrap.
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap.

SKJ6X88BU

The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap.
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is green with a metal shielding wrap, packaged 100 jacks to a box.

SKJ6X88GR-C

The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is green with a metal shielding wrap, packaged 100 jacks to a box.
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is green with a metal shielding wrap.

SKJ6X88GR

The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is green with a metal shielding wrap.
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap, packaged 100 jacks to a box.

SKJ6X88BU-C

The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap, packaged 100 jacks to a box.
The Single Key Universal Master Key is part of a unified line of physical security devices designed around a shared key pattern. This ensures that the key can operate only the devices built for its specific pattern. By standardizing access and preventing unauthorized or accidental removal, the Master Key helps reduce the risk of damage and the costly downtime that can follow.

SKUMKEY

The Single Key Universal Master Key is part of a unified line of physical security devices designed around a shared key pattern. This ensures that the key can operate only the devices built for its specific pattern. By standardizing access and preventing unauthorized or accidental removal, the Master Key helps reduce the risk of damage and the costly downtime that can follow.

Frequently Asked Questions

What cable gauges are compatible with this keystone jack?

The Panduit SKJ6X88WH-C is intended for termination onto 22-26 AWG solid or stranded Category 6A cable.

Does this keystone jack support both T568A and T568B wiring?

Yes, the jack module supports termination in either T568A or T568B wiring configurations.

How is the performance of these keystone jacks ensured?

The jacks are 100% tested for component performance, and individually serialized for quality traceability.

What type of cable is this keystone jack designed for?

This keystone jack is designed for Category 6A cable.

What is the color and shielding of this keystone jack?

The jack is white with a metal shielding wrap.

How to Install Panduit Shielded Keystone Jack Modules

This guide provides step-by-step instructions for preparing shielded data cable and terminating it to Panduit Shielded Keystone Jack Modules (SKJ6X88WH-C series) following T568A or T568B wiring standards.

Estimated time: 30m

Tools needed:

Wire strippers, PDT110 Termination Tool

Supplies needed:

Panduit Shielded Keystone Jack Module (SKJ6X88WH-C series), Shielded data cable (22-26 AWG solid or stranded)

  1. Prepare the Cable Jacket

    Strip the outer jacket of the shielded data cable to a length of 2.00 inches (50.8 mm) from the end. Ensure a clean cut without damaging the inner conductors or shielding.

  2. Manage Cable Shielding

    For F/UTP cables, fold the overall foil screen and drain wire outward over the cable jacket, ensuring the conductive side of the foil faces outward on all sides. For S/FTP or SF/UTP cables, split and twist the overall braid, then fold it outward over the cable jacket. Manage any individual foil pair screens as shown in the cable preparation diagrams. For U/FTP cables, manage individual foil pair screens and the drain wire as shown.

  3. Orient Jack and Untwist Conductors

    Orient the keystone jack with the notch and label facing as shown in the diagram. Carefully untwist the conductor pairs, ensuring that no more than 1/8 inch (3.2 mm) of untwisted wire extends from the IDC tower to maintain performance.

  4. Terminate Conductors

    Following either the T568A or T568B wiring scheme (as indicated on the jack label), insert each individual conductor into its corresponding IDC slot on the jack. Use the PDT110 Termination Tool to firmly seat and trim each conductor, ensuring a secure connection.

  5. Trim Excess Shielding

    For F/UTP cables, wrap the previously folded foil and drain wire securely around the outside of the terminated jack and trim any excess material to the appropriate length as indicated in the diagrams. For S/FTP or SF/UTP cables, wrap the previously folded braid securely around the outside of the terminated jack and trim any excess material to the appropriate length as indicated.

  6. Verify Termination

    Visually inspect all terminations to ensure conductors are fully seated, trimmed correctly, and that the shielding (foil/braid/drain wire) is properly managed and secured to the jack for optimal performance and grounding. Ensure no stray wires are present that could cause short circuits.
