Overview
- Category 6/Class E keystone jack module for 22-26 AWG shielded twisted pair cables
- Meets ANSI/TIA-568.2-E and ISO 11801 Class E requirements up to 250 MHz
- Supports T568A and T568B wiring configurations with universal labeling
- Metal shielding wrap provides 360° conductive path to ground for noise immunity
- Individually serialized and 100% tested for component performance
Specifications
Cable Entry | T568A/T568B |
Color | White |
Connection Type | Punchdown |
Depth | NA In. |
Frequency | ANSI/TIA-568.2-E |
Material | Metal, PVC |
Model | Keystone |
Mounting Type | Keystone |
Poles | 8P8C |
Size | 22-26 AWG |
Standard | Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz. Meets ANSI/TIA-568-C |
Type | Jack Module |
Width | 0.65 In. |
Package Dimensions (L x W x H) | 4 IN x 5.5 IN x 1.5 IN |
Package Dimensions (L x W x H) | 10.16 cm x 13.97 cm x 3.81 cm |
Package Weight (Imperial) | 0.0240 L |
Package Weight (Metric) | 0.0109 kg |
SKJ6X88BU

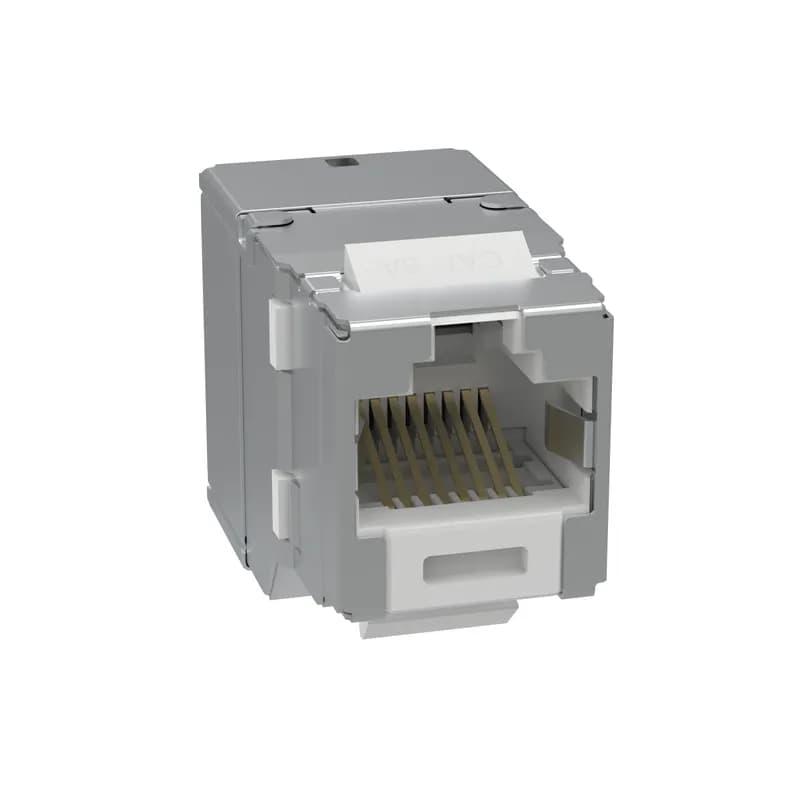

The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap.
SKJ6X88GR-C
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is green with a metal shielding wrap, packaged 100 jacks to a box.
SKJ6X88GR
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is green with a metal shielding wrap.
SKJ6X88BU-C
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap, packaged 100 jacks to a box.
PZLRB6UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. This distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 6 RU, rated for 80 pounds, made of steel, and is white.
PZLRB2UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 2RU, rated for 40 pounds, made of steel, and is white.Frequently Asked Questions
What cable types are compatible with this jack module?
The jack module terminates 4-pair, 22 AWG – 26 AWG, 100 ohm shielded twisted pair cable.
What tool is needed for conductor termination?
A standard punchdown tool, specifically a single wire 110 punchdown tool (PDT110), is required.
Does the jack support T568A and T568B wiring?
Yes, the shielded jack modules include universal labeling for both T568A and T568B wiring schemes.
What performance standards does the jack meet?
It exceeds ANSI/TIA-568.2-E Category 6A and ISO 11801 Class EA channel and component requirements up to 500 MHz.
What are the cable conductor and overall diameter limits?
It supports 22 AWG – 26 AWG solid or stranded cable with conductor insulation diameters up to 0.06 in. and overall cable O.D. from 0.20 in. to 0.33 in.
What are the contact plating specifications?
Contacts are plated with 50 microinches of gold for superior performance, meeting ANSI/TIA-1096-A.
Is the jack compatible with Power over Ethernet (PoE)?
Yes, it meets IEEE 802.3af/at and 802.3bt type 3 and 4. It also supports Power over HDBaseT up to 100 watts.
Is the jack suitable for air-handling spaces?
Yes, the jack is UL 2043 listed, making it suitable for use in air-handling spaces.
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
What color options are available for the jack module?
The jack module is available in Black (BL), Blue (BU), White (WH), and Green (GR).
How to Terminate Panduit Shielded Keystone Jack Modules
Complete guide for preparing shielded data cable and terminating it into Panduit Shielded Keystone Jack Modules (SKJ6X88WH series) following T568A or T568B wiring standards, including shield management.
Estimated time: 15m
Tools needed:
PDT110 Tool, Wire strippers, Scissors
Supplies needed:
Panduit Shielded Keystone Jack Module, Shielded Data Cable
- Prepare the Cable Jacket
Strip 2.00 inches (50.8mm) of the cable's outer jacket to expose the internal conductors and shielding.
- Prepare the Cable Shield
For F/UTP cables, fold the overall foil screen and drain wire backward, ensuring the conductive side faces outward. For S/FTP or U/FTP cables, split and twist the braid, and fold individual foil pair screens backward, ensuring the conductive side faces outward as shown in the diagrams.
- Orient the Jack and Arrange Conductors
Orient the keystone jack module as shown in the documentation. Arrange the individual conductors according to either the T568A or T568B wiring scheme, matching the color codes on the jack.
- Insert and Terminate Conductors
Insert the arranged conductors into the IDC towers of the jack's termination puck. Ensure no more than 1/8 inch (3.2mm) of untwisted wire extends from the IDC tower. Use the PDT110 tool to punch down and trim the conductors securely.
- Manage and Trim Shielding (F/UTP)
If using F/UTP cable, wrap the overall foil and drain wire around the outside of the terminated jack assembly as indicated. Trim any excess foil and drain wire to the appropriate length.
- Manage and Trim Shielding (S/FTP)
If using S/FTP cable, wrap the overall braid around the outside of the terminated jack assembly as indicated. Trim any excess braid to the appropriate length.
