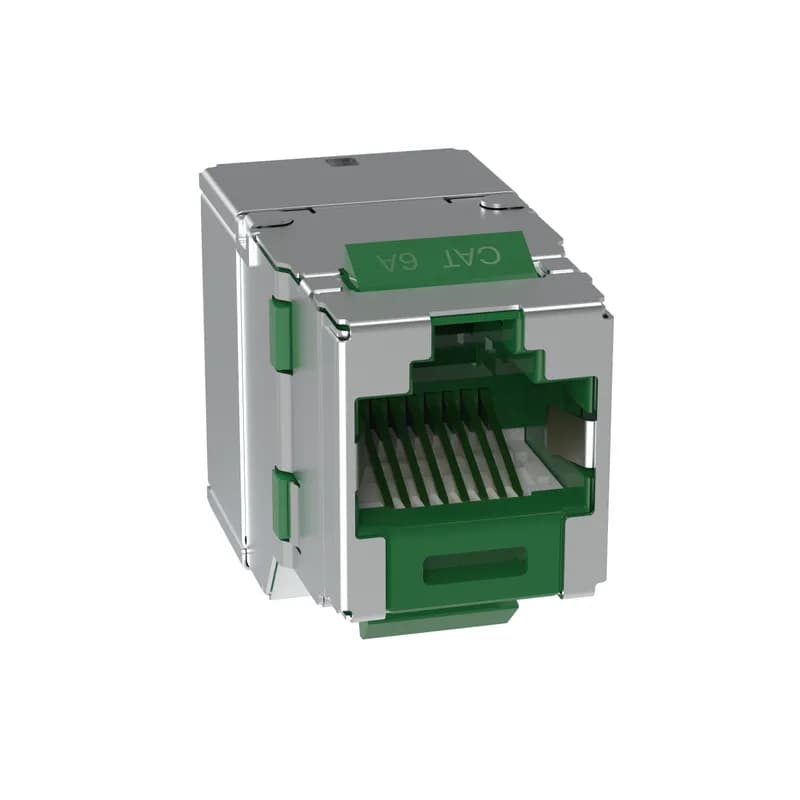

Panduit SKJ6X88GR-C The Shielded Keystone Jack Module provides an industry standard keystone jack footprint…
UPC: 613056913639
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Category 6A/Class E shielded keystone jack for 22-26 AWG STP cable
- Supports T568A and T568B wiring schemes with universal labeling
- Integral 360° shield for consistent grounding and EMI protection
- 100% tested for component performance; individually serialized
- RJ45 interface rated for 2,500 mating cycles; PoE/PoH compliant
Specifications
Cable Entry | T568A/T568B |
Color | Green |
Connection Type | Punchdown (T568A/T568B) |
Connection Type | T568A, T568B Wiring |
Depth | NA In. |
Material | Metal, Plastic |
Material | Metal (shielding) + Plastic (body) |
Model | Keystone |
Mounting Type | Keystone Jack |
Mounting Type | Keystone |
Poles | 8P8C (RJ45) |
Series | SKJ6X88 |
Series | SKJ6X88GR |
Standard | Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz. Meets ANSI/TIA-568-C |
Type | Jack Module |
Width | 0.65 In. |
Package Dimensions (L x W x H) | 10.8 IN x 7.5 IN x 3.7 IN |
Package Dimensions (L x W x H) | 27.432 cm x 19.05 cm x 9.398 cm |
Package Weight (Imperial) | 2.4000 L |
Package Weight (Metric) | 1.0886 kg |
SKJ6X88GR
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6 cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is green with a metal shielding wrap.
SKJ6X88BU-C
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap, packaged 100 jacks to a box.
PZLRB6UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. This distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 6 RU, rated for 80 pounds, made of steel, and is white.
PZLRB2UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 2RU, rated for 40 pounds, made of steel, and is white.
PZLRB4UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 4RU, rated for 60 pounds, made of steel, and is White.
SKUMKEY
The Single Key Universal Master Key is part of a unified line of physical security devices designed around a shared key pattern. This ensures that the key can operate only the devices built for its specific pattern. By standardizing access and preventing unauthorized or accidental removal, the Master Key helps reduce the risk of damage and the costly downtime that can follow.Frequently Asked Questions
What cable gauges are compatible with this keystone jack?
This keystone jack module is intended for termination onto 22-26 AWG solid or stranded Category 6A cable.
Does this jack support both T568A and T568B wiring standards?
Yes, the jack module supports termination in either T568A or T568B wiring configurations.
How is the quality of these keystone jacks ensured?
The jacks are 100% tested for component performance and are individually serialized for quality traceability.
What type of cable performance does this jack module provide?
The shielded keystone jack module provides ANSI/TIA-568.2-E performance.
What color is the Panduit SKJ6X88GR-C keystone jack?
The Panduit SKJ6X88GR-C keystone jack module is green.
How to Install and Terminate a Panduit Shielded Keystone Jack (SKJ6X88GR-C)
This guide provides step-by-step instructions for preparing shielded data cable and terminating it into a Panduit SKJ6X88GR-C shielded keystone jack module, ensuring proper shielding and wiring according to TIA/EIA 568 guidelines.
Estimated time: 20m
Tools needed:
Wire strippers, Cable cutters, PDT110 Tool
Supplies needed:
SKJ6X88GR-C Shielded Keystone Jack, Shielded Data Cable (e.g., S/FTP, F/UTP)
- Prepare the Cable Jacket and Shielding
Strip 2.00 inches (50.8mm) of the cable's outer jacket. Based on your cable type (F/UTP, S/FTP, U/FTP, SF/UTP), manage the foil, braid, and drain wire as illustrated on page 1 of the instructions, ensuring the conductive side of the foil faces outward where applicable. Safety Warning: Never install communications wiring during a lightning storm or in wet locations unless the jack is specifically designed for such use.
- Orient the Jack and Arrange Conductors
Orient the keystone jack with the 'Puck' and 'Notch' visible as shown in Step 1 on page 2. Carefully untwist the wire pairs no more than 1/8 inch (3.2mm) from the IDC tower. Arrange the individual conductors into the appropriate color-coded slots on the jack, following either the T568A or T568B wiring scheme as indicated on the jack's label.
- Terminate Wires and Manage Shielding
Use a Panduit PDT110 Tool to punch down and terminate each conductor into the IDC tower, ensuring a secure connection and trimming excess wire. For S/FTP cables, wrap the prepared braid to the outside of the jack and trim it to length as shown in Step 8. For F/UTP cables, wrap the foil and drain wire to the outside of the jack and trim them to length as shown in Step 9. Ensure proper contact between the cable shield and the jack's shielding components.
- Secure the Jack Module
Gently close the jack module, ensuring all internal components are properly seated and the cable is securely held. Verify that the latch engages to fully secure the module for optimal performance.
