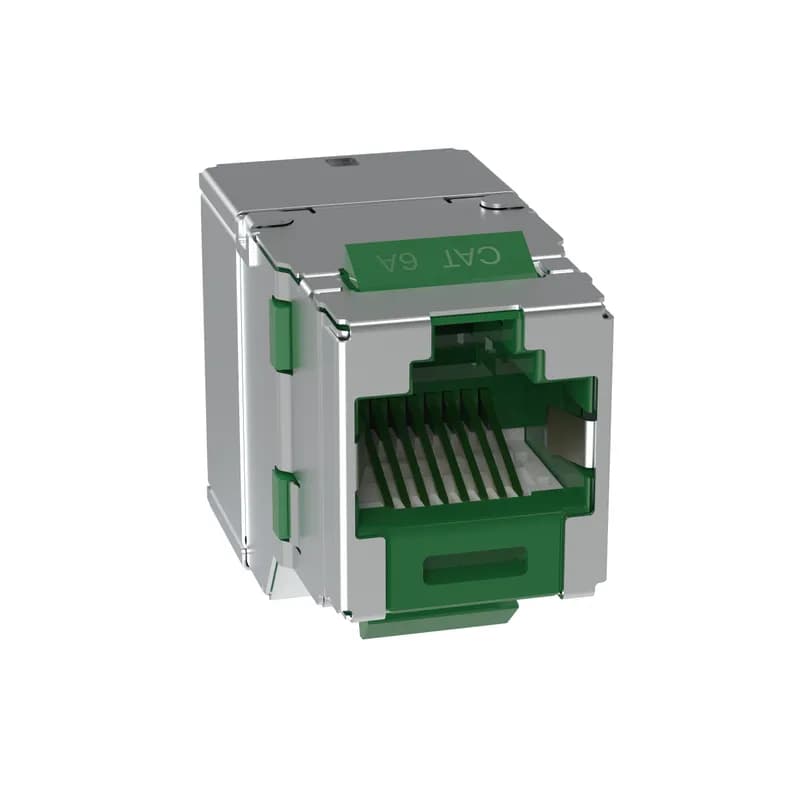

Panduit SKJ6X88GR The Shielded Keystone Jack Module provides an industry standard keystone jack footprint…
UPC: 613056913592
Contact for Pricing
Minimum Qty: 50
Multiplier: 1
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- ANSI/TIA-568.2-E Category 6/Class E compliant, tested to 250 MHz
- Terminates 22-26AWG solid or stranded shielded twisted-pair cable
- Supports T568A and T568B wiring configurations with universal labeling
- Full metal shielding wrap provides 360° EMI protection, 2,500 mating cycles rated
- Individually serialized for traceability, 100% component performance tested
Specifications
Cable Entry | T568A/T568B |
Color | Green |
Depth | NA In. |
Model | Keystone |
Standard | Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz. Meets ANSI/TIA-568-C |
Type | Jack Module |
Width | 0.65 In. |
Package Dimensions (L x W x H) | 4 IN x 5.5 IN x 1.5 IN |
Package Dimensions (L x W x H) | 10.16 cm x 13.97 cm x 3.81 cm |
Package Weight (Imperial) | 0.0240 L |
Package Weight (Metric) | 0.0109 kg |
SKJ6X88BU-C
The Shielded Keystone Jack Module provides an industry standard keystone jack footprint for ANSI/TIA-568.2-E performance. The jack module is intended for termination onto 22-26AWG solid or stranded Category 6A cable in either T568A or T568B wiring using the industry standard punchdown tool. The jacks are 100% tested for component performance, and individually serialized for quality traceability. The jack is blue with a metal shielding wrap, packaged 100 jacks to a box.
PZLRB6UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. This distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 6 RU, rated for 80 pounds, made of steel, and is white.
PZLRB2UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 2RU, rated for 40 pounds, made of steel, and is white.
PZLRB4UWH
The PanZone® Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The overhead rack is 4RU, rated for 60 pounds, made of steel, and is White.
SKUMKEY
The Single Key Universal Master Key is part of a unified line of physical security devices designed around a shared key pattern. This ensures that the key can operate only the devices built for its specific pattern. By standardizing access and preventing unauthorized or accidental removal, the Master Key helps reduce the risk of damage and the costly downtime that can follow.
PUR6AHD04WH-G
Category 6A/Class EA cable shall be constructed of 23 AWG copper conductors with Foam PE and HDPE insulation. The copper conductors shall be twisted in pairs and separated by a tape-style divider. All four pairs shall be surrounded by a metallic Vari-MaTriX tape and a flame retardant jacket. The Vari-MaTriX tape shall minimize the cable diameter and suppress the effects of alien crosstalk while retaining UTP electromagnetic interference immunity.Frequently Asked Questions
Does this jack support both T568A and T568B wiring?
Yes, the jack is compatible with both T568A and T568B wiring standards.
What cable types are compatible with this jack?
The jack supports 22-26AWG solid or stranded Category 6 cables.
Is the jack shielded?
Yes, the jack features a metal shielding wrap to reduce electromagnetic interference.
How is the jack tested for performance?
Each jack is 100% tested for component performance before shipment.
What is the purpose of the serialization?
The jack is individually serialized for quality traceability and inventory control.
How to Install Panduit Shielded Keystone Jack Modules (SKJ6X88GR)
This guide provides step-by-step instructions for preparing shielded data cable and terminating it into Panduit Shielded Keystone Jack Modules. Always use caution when installing or modifying communication wiring. Never install during a lightning storm or in wet locations unless the jack is designed for it.
Estimated time: 15m
Tools needed:
PDT110 Tool, Wire strippers
Supplies needed:
Shielded Keystone Jack Module, Shielded data cable
- Prepare the Cable
Strip 2.00 inches (50.8mm) of the outer jacket from the shielded data cable. For S/FTP, U/FTP, and SF/UTP cables, split and twist the braid, then fold the individual foil pair screens. For F/UTP cables, fold the overall foil screen. Ensure the conductive side of the foil faces outward on all sides.
- Orient the Jack and Select Wiring Scheme
Orient the shielded keystone jack module as shown in the diagram, ensuring the notch and label are correctly positioned. Select either the T568A or T568B wiring scheme for termination.
- Insert Conductors into IDC Towers
Carefully insert the individual conductors into the appropriate Insulation Displacement Contact (IDC) towers according to your chosen T568A or T568B wiring scheme. Do not untwist the pairs more than 1/8 inch (3.2mm) from the IDC tower.
- Terminate Conductors
Use the PDT110 termination tool to firmly seat and terminate the conductors into the IDC towers. The tool will simultaneously trim any excess wire, ensuring a clean and secure connection.
- Manage F/UTP Shielding
If using F/UTP cable, wrap the overall foil screen and drain wire to the outside of the jack module as shown. Cut the foil and drain wire to the appropriate length, ensuring proper contact for grounding.
- Manage S/FTP and SF/UTP Shielding
If using S/FTP or SF/UTP cable, wrap the overall braid to the outside of the jack module as shown. Cut the braid to the appropriate length, ensuring proper contact for grounding.
- Finalize Jack Assembly
Depress the latch on the jack module and gently tilt out the puck, if present, to complete the termination process and ensure the jack is ready for installation into a faceplate or patch panel.
