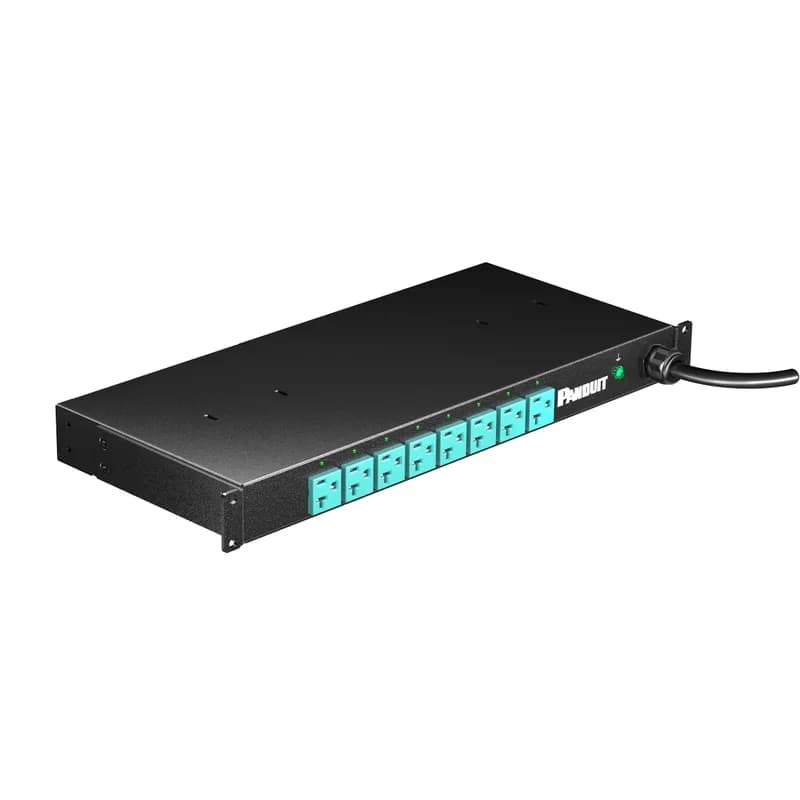

Overview
- 15 Ampere current rating for reliable power delivery.
- Eight NEMA 5-20R receptacles for multiple device connections.
- Standard NEMA 5-15P plug with a 3-meter (9.8 ft) power cord.
- Durable black housing for industrial environments.
- Designed for efficient power distribution in IT and industrial applications.
Specifications
Phase | Single-Phase |
Standard | Nemko Listed Certificate: NA202011186, CE, UKCA, ROHS, REACH, China ROHS |
Type | PDU |
Package Dimensions (L x W x H) | 23 IN x 15 IN x 5 IN |
Package Dimensions (L x W x H) | 58.42 cm x 38.1 cm x 12.7 cm |
Package Weight (Imperial) | 21.0000 L |
Package Weight (Metric) | 9.5256 kg |
Frequently Asked Questions
What is the standard warranty for Panduit PDUs?
Panduit PDUs come with a 3-year standard warranty, which can be extended to 5 years.
What is the maximum operating temperature?
Panduit PDUs are built with premium components to withstand 140°F (60°C) at full load.
Do Panduit PDUs feature hot-swappable controllers?
Yes, Panduit PDUs feature hot-swappable controllers that can be removed without affecting outlet status, ideal for service or repair.
What network connectivity options are available?
PDUs offer single or dual Gigabit Ethernet and serial connectivity. Some models also support Wi-Fi and Bluetooth via CNT06.
What can Panduit PDUs monitor in real-time?
Panduit PDUs provide real-time monitoring of power, environmental conditions, and cabinet security.
Are Panduit PDUs compatible with Cisco systems?
Yes, Panduit's intelligent PDUs are compatible with Cisco Nexus Dashboard software for enhanced energy savings and sustainability insights.
Do Panduit PDUs integrate with DCIM solutions?
Yes, intelligent PDUs offer integration with monitoring software for data management and analytics, with EL2P series having native Cisco Nexus Dashboard and Redfish API integration.
What is the maximum daisy chain capacity?
Daisy chain capacity varies by model, with ES2P supporting 16, G6 supporting 32, and EL2P supporting up to 64 PDUs.
What is the metering accuracy of Panduit PDUs?
Metering accuracy is ± 2% for ES2P and G6 models, and ± 0.5% for EL2P models.
How are vertical PDUs mounted?
Vertical PDUs feature tool-less mounting buttons for quick and secure attachment to rack keyhole slots, simplifying setup.
How to Install and Configure a Panduit EL2P PDU
This guide provides step-by-step instructions for installing Panduit Rack Power Distribution Units (PDUs) into a datacenter rack, including mounting, grounding, and connecting to a power source, as well as rotating or replacing the network controller.
Estimated time: 1h
Tools needed:
#2 Phillips screwdriver, T10 Torx screwdriver, 2.5mm hex key Allen wrench
Supplies needed:
Mounting screws, Cage nuts, Ground bonding cable, Blanking panels
- Review Safety Information
Before beginning, read all safety information in the manual, especially regarding high leakage current, overcurrent protection, proper grounding, and voltage verification. Ensure all circuit breakers are in the off position before connecting input power. This PDU is intended only for Information Technology Equipment (ITE) loads with linear/Power Factor Corrected (PFC) input current. If non-linear loads are connected, the nameplate current rating of the PDU must be reduced by a factor of 0.8.
- Prepare Rack for PDU Installation
Maintain a minimum clearance of 2 to 3 inches between the PDU chassis and the cabinet frame or side panels to ensure effective heat dissipation and avoid localized hot spots. Seal any unused rack spaces surrounding the installation with blanking panels to promote proper front-to-back airflow containment. Orient the PDU's integrated venting toward the cabinet's dedicated exhaust fans or hot aisle for premium thermal management.
- Mount Vertical PDU (if applicable)
If necessary, adjust the pre-installed mounting buttons on the back of the PDU to the desired location. Insert the mounting buttons into the keyhole slots on the PDU mounting bracket in the rack. Secure the PDU using a #2 Phillips screwdriver, tightening to a recommended torque of 3.0Nm. For multiple units, install all with outlets facing the center of the rack.
- Mount Horizontal 1U/2U PDU (if applicable)
Install cage nuts at the desired U location on both the front and rear equipment rails. Screw the mounting bracket ears into the front RETMA rail surface at the U location where the cage nuts were installed. For high power PDUs, screw the pre-installed mounting bracket ears into the rear RETMA rail surface at the U location where the cage nuts were installed. Screw the mounting brackets on the front into the PDU chassis using a 2.5mm hex key Allen wrench and tighten the socket head screws.
- Ground the PDU
Connect a ground bonding cable to the external ground bonding point located on the PDU chassis. This point can typically be found on the surface with the outlets. Bond the PDU to a grounding strip or grounding bus bar, ensuring conductor sizes meet national or local electrical codes (e.g., NEC Table 250.122 or equivalent based on the country product being deployed in).
- Rotate or Replace Network Controller (Optional)
Using a T10 Torx screwdriver, remove the two screws holding the network controller. If physically rotating the controller, disconnect the ribbon cable to prevent damage, then rotate the controller to the desired orientation. If replacing the controller, disconnect the existing ribbon cable from the old controller. Carefully reconnect the ribbon cable to the controller, paying close attention to connector orientation and avoiding crimping or pinching. Mate the controller to the PDU chassis, ensuring the ribbon cable is not pinched. Reinstall the two screws using a T10 Torx screwdriver and torque them to a range of 2.2–3.1 lbf-in [0.25–0.35 N-M]. Avoid overtightening the screws, as this may result in metal deformation.
- Connect PDU to Power Source
WARNING: Ensure the feed circuit breaker for the power source is in the OFF position before proceeding. Verify that all circuit breakers on the PDU are set to the ON position. Connect the PDU to an appropriately rated branch circuit, adhering to all local and national electrical codes. Refer to the compliance label on the PDU for the input ratings. Turn the feed circuit breaker ON. Wait for the operating system to load. When complete, the Main Menu will display on the screen.
