ABB - Installation Products TBM12 - 12 Ton Hydraulic Crimp Head with Steel Case - Closed Yoke, Includes 5 Sets of Multi-Nested Dies

ABB Installation Products TBM12 12 Ton Hydraulic Crimp Head with Steel Case - Closed Yoke, Includes 5 Sets of…

UPC: 786210805382

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

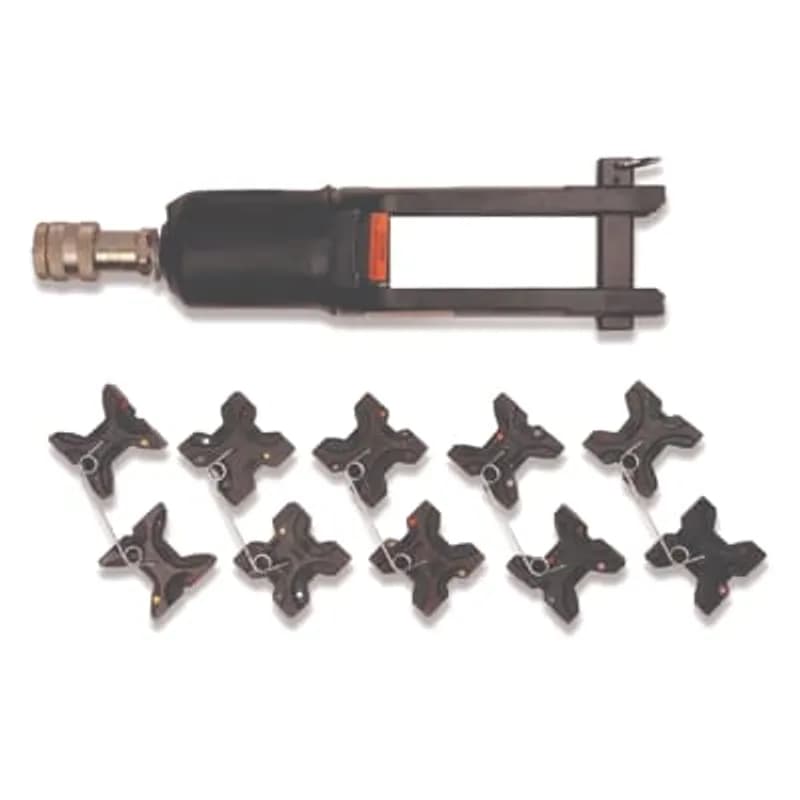

The ABB TBM12 12 Ton Hydraulic Crimp Head is a heavy-duty industrial tool designed for high-force crimping applications in electrical, construction, and utility sectors. This closed yoke hydraulic crimp head delivers 12 tons of crimping force, enabling reliable connections on large-gauge cables, wires, and connectors. The steel case construction ensures durability under repeated use in demanding environments, while the included 5 sets of multi-nested dies provide versatility for a range of cable sizes and crimp types. This crimp head is compatible with standard hydraulic crimping systems and is ideal for terminating thick conductors, grounding applications, and high-current connections. The closed yoke design enhances structural integrity, reducing deflection during high-force operations. With a robust build and precision engineering, the TBM12 is suited for field service, manufacturing, and maintenance tasks where consistent, high-quality crimps are critical. Key applications include utility line work, industrial cable installations, and renewable energy projects requiring secure, long-lasting terminations. The multi-nested die sets accommodate various cable diameters, minimizing tool changeover time and improving workflow efficiency. ABB’s TBM12 is a reliable choice for professionals who demand performance without compromise in high-load crimping scenarios.
  • 12-ton hydraulic crimping force for heavy-duty applications
  • Steel case construction for durability and long service life
  • Closed yoke design reduces deflection during high-force operations
  • Includes 5 sets of multi-nested dies for versatile cable sizing
  • Compatible with standard hydraulic crimping systems

Specifications

Crimping Force
12 Ton
Material
Steel
Mounting Type
Closed Yoke
Overall Length
14.25 in
Overall Length
361.95 mm
Series
TBM12
Size
12 Ton
Type
Hydraulic Crimping Head
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
24.4000 L
Package Weight (Metric)
11.0680 kg
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging

13682

Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
Die for CA-800 Applicator

CD-800-10

Die for CA-800 Applicator
Multi Nest Die Set for TBM12 - Die 1) Copper Code #8AWG, Flex/24 37/24, AL/CU 10AWG, Color Code Red, Die Code 21. Die 2) Copper Code #6 AWG, Flex/24 61/24, AL/CU #8 AWG, Color Code Blue, Die Code 24. Die 3) AL/CU 700 kcmil, Color Code Purple, Die Code 112H. Die 4) Copper Code 1000 kcmil, AL/CU 800 kcmil, Color Code Yellow, Die Code 115H

TBM12D-1

Multi Nest Die Set for TBM12 - Die 1) Copper Code #8AWG, Flex/24 37/24, AL/CU 10AWG, Color Code Red, Die Code 21. Die 2) Copper Code #6 AWG, Flex/24 61/24, AL/CU #8 AWG, Color Code Blue, Die Code 24. Die 3) AL/CU 700 kcmil, Color Code Purple, Die Code 112H. Die 4) Copper Code 1000 kcmil, AL/CU 800 kcmil, Color Code Yellow, Die Code 115H
Multi Nest Die Set for TBM12 - Die 1) Copper Code #4AWG, Flex/24 91/24, AL/CU #6AWG, Color Code Gray, Die Code 29. Die 2) Copper Code #2 AWG, Flex/24 125/24, Color Code Brown, Die Code 33. Die 3) Copper Code 700 kcmil, AL/CU 500 kcmil, Color Code Pink, Die Code 99H. Die 4) Copper Code 750 kcmil, AL/CU 650 kcmil, Color Code Black, Die Code 106H

TBM12D-2

Multi Nest Die Set for TBM12 - Die 1) Copper Code #4AWG, Flex/24 91/24, AL/CU #6AWG, Color Code Gray, Die Code 29. Die 2) Copper Code #2 AWG, Flex/24 125/24, Color Code Brown, Die Code 33. Die 3) Copper Code 700 kcmil, AL/CU 500 kcmil, Color Code Pink, Die Code 99H. Die 4) Copper Code 750 kcmil, AL/CU 650 kcmil, Color Code Black, Die Code 106H
Multi Nest Die Set for TBM12 - Die 1) Copper Code #1AWG, Flex/24 150/24, AL/CU #4AWG, Color Code Green, Die Code 37. Die 2) Copper Code 1/0 AWG, Flex/24 225/24, AL/CU #2 AWG, Color Code Pink, Die Code 42. Die 3) Copper Code 500 kcmil, AL/CU 350 kcmil, Color Code Brown, Die Code 87H. Die 4) Copper Code 600 kcmil, Flex/24 1100/24, AL/CU 400 kcmil, Color Code Green, Die Code 94H

TBM12D-3

Multi Nest Die Set for TBM12 - Die 1) Copper Code #1AWG, Flex/24 150/24, AL/CU #4AWG, Color Code Green, Die Code 37. Die 2) Copper Code 1/0 AWG, Flex/24 225/24, AL/CU #2 AWG, Color Code Pink, Die Code 42. Die 3) Copper Code 500 kcmil, AL/CU 350 kcmil, Color Code Brown, Die Code 87H. Die 4) Copper Code 600 kcmil, Flex/24 1100/24, AL/CU 400 kcmil, Color Code Green, Die Code 94H
Multi Nest Die Set for TBM12 - Die 1) Copper Code 2/0AWG, Flex/24 275/24, Color Code Black, Die Code 45. Die 2) Copper Code 3/0 AWG, Flex/24 325/24, Color Code Orange, Die Code 50. Die 3) AL/CU #1AWG, Color Code Gold, Die Code 45. Die 4) Copper Code AL/CU 1/0 AWG, Color Code Tan, Die Code 50. Die 5) Copper Code 350 kcmil, Flex/24 775/24 (short), AL/CU 250 kcmil, Color Code Red, Die Code 71H. Die 6) Copper Code 400 kcmil, Flex/24 775/24 (long), AL/CU 300 kcmil, Color Code Blue, Die Code 76H

TBM12D-4

Multi Nest Die Set for TBM12 - Die 1) Copper Code 2/0AWG, Flex/24 275/24, Color Code Black, Die Code 45. Die 2) Copper Code 3/0 AWG, Flex/24 325/24, Color Code Orange, Die Code 50. Die 3) AL/CU #1AWG, Color Code Gold, Die Code 45. Die 4) Copper Code AL/CU 1/0 AWG, Color Code Tan, Die Code 50. Die 5) Copper Code 350 kcmil, Flex/24 775/24 (short), AL/CU 250 kcmil, Color Code Red, Die Code 71H. Die 6) Copper Code 400 kcmil, Flex/24 775/24 (long), AL/CU 300 kcmil, Color Code Blue, Die Code 76H
Multi Nest Die Set for TBM12 - Die 1) Copper Code 4/0AWG, Flex/24 450/24, Color Code Purple, Die Code 54. Die 2) Copper Code 250 kcmil, Flex/24 550/24, Color Code Yellow, Die Code 62. Die 3) AL/CU 2/0 AWG, Color Code Olive, Die Code 54. Die 4) AL/CU 3/0 AWG, Color Code Ruby, Die Code 60. Die 5) Copper Code 300 kcmil, AL/CU 4/0 AWG, Color Code White, Die Code 66H

TBM12D-5

Multi Nest Die Set for TBM12 - Die 1) Copper Code 4/0AWG, Flex/24 450/24, Color Code Purple, Die Code 54. Die 2) Copper Code 250 kcmil, Flex/24 550/24, Color Code Yellow, Die Code 62. Die 3) AL/CU 2/0 AWG, Color Code Olive, Die Code 54. Die 4) AL/CU 3/0 AWG, Color Code Ruby, Die Code 60. Die 5) Copper Code 300 kcmil, AL/CU 4/0 AWG, Color Code White, Die Code 66H
Die for BPLT62BSCR and BPLT6500BSCR Tool for #8 CU, #10 Al

TBM6221

Die for BPLT62BSCR and BPLT6500BSCR Tool for #8 CU, #10 Al
