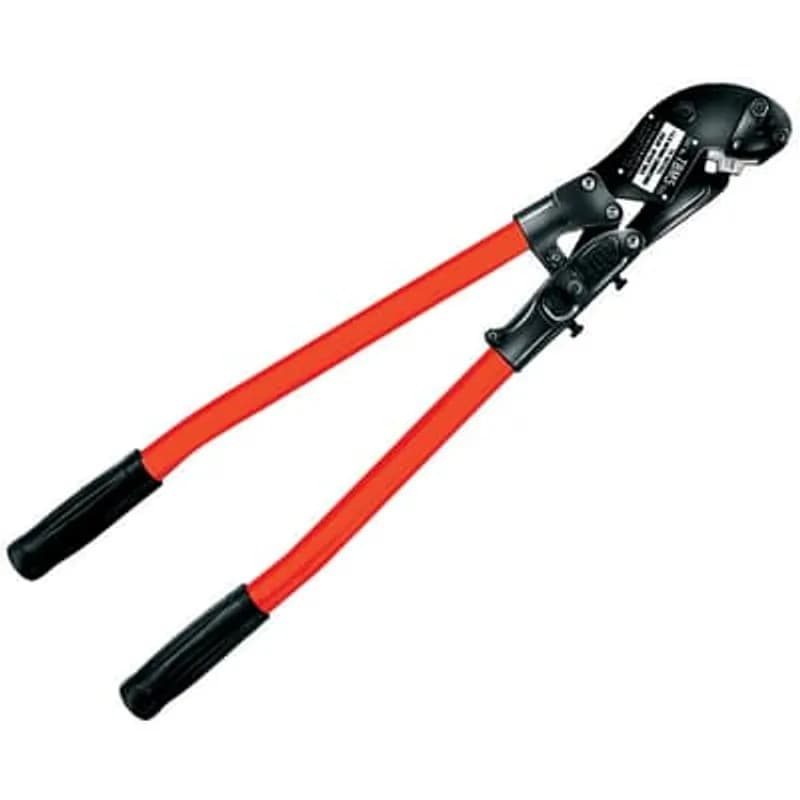

ABB Installation Products TBM5-SV Heavy Duty Crimping Tool Including Dies For 8 AWG-4/0 Battery Connectors, Lugs And…
UPC: 786210071923
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Heavy duty construction for industrial use
- Accommodates 8 AWG to 4/0 AWG wire sizes
- Includes dies for battery connectors, lugs, and splices
- Features Shure-stake mechanism for guaranteed complete crimps
- Ensures reliable and secure electrical connections
Specifications
Application | Battery connector crimp tools |
Handle Type | Palm Grip |
Special Features | The single die is an integral part of the tool, no dies to lose or misplace |
Type | Manual Crimp Tool |
Wire Size | 8-4/0 AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.1000 L |
Package Weight (Metric) | 3.6740 kg |
AHS 600-2
Tin Plated Aluminum Wire Connector, 4/0 - 600 kcmil, Torque 500 pounds, Dual Rated Connector Copper and Aluminum 90 Degree C. CSA/UL listed. Length 2-3/4 inch, Width 2-1/4 inch, Height 2-1/4 inch. One 29/64 inch Diameter Hole and Two Transverse Taps 61/64 inch Diameter. Includes Two Tin Plated Aluminum 15/16-16 x 1-1/8 inch Set Screws with 1/2 inch Recessed Hex Head
17-224
Staples, Cable, Size 1/2 Inch, Plastic, For use with 2-Wire #12 or #14 Romex, UF, and other Non-Metallic Cable, Pack of 5,000
ASR1114
Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 1/0 Str., Min 14 AWG
CSP300
Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 300 kcmil, Tin Plated, Die Color Code White15504F
15 Ton Full Hex Die for TBM15PF - 900 kcmil Copper Code, Flex/24 1925/24, 750 kcmil AL/CU, Die Color Yellow, Die Code 115H. Gauge Range 1.162 to 1.142 inch.
13611
Remote Control Hand Switch for Catalog Numbers 13610A and 13810. Approx 5-1/2 inch Long x 1-5/8 inch wide x 2 inch Deep. 10 foot Cord with Amphenol Plug
GG58H
Heavy Ground Rod Clamp, Copper Alloy Casting, Hex Head Bolt, Nominal Rod Size 5/8 (15.8mm), Wire Range 8 Sol - 2 Str (8.3 - 53.4mm2)Frequently Asked Questions
What lengths are available for non-metallic hoses?
Non-metallic hoses are available in 10 ft and 30 ft lengths.
What is the motor rating for the hydraulic pump?
The motor is rated at 1.5 hp, 115V, 60 Hz, and 22 amps.
What is the pumping capacity of the hydraulic pump?
It has a pumping capacity of 225 cu in/min at 200 psi and 35 cu in/min at 6,500 psi.
What is the reservoir volume of the hydraulic pump?
The reservoir volume is 231 cu in, which is equivalent to 1 gallon.
What are the dimensions and weight of the hydraulic pump?
The pump dimensions are 10.5 in L x 10.5 in W x 20.5 in H, and it weighs 30 lbs.
What pressure is required before the pump recycles?
The two-stage pump requires 6,500 psi pump pressure before recycling to prevent under-crimping.
What is the crimping range for the TBM-C Ratchet Crimp Tool?
This tool crimps #6 AWG to 2/0 AWG battery connectors, lugs, and splices.
Does the TBM-C/TBM-CC tool have removable dies?
No, the single die is an integral part of the tool, meaning there are no dies to lose or misplace.
What is the benefit of the Sure-Stake mechanism on the TBM650C?
The Sure-Stake mechanism ensures a complete crimp every time for cast and tubular battery connectors.
What is the benefit of the Sure-Stake mechanism on the TBM-CC?
The Sure-Stake mechanism ensures a complete crimp every time for #6 AWG to 2/0 AWG battery connectors.
How to Operate and Maintain the TBM5-SV Compression Tool
This guide provides instructions for operating the TBM5-SV compression tool, covering die installation, conductor preparation, making compressions, and performing essential calibration verification procedures.
Estimated time: 30m
Tools needed:
Wire brush, Emery cloth, Gage pin set, Screwdriver
Supplies needed:
Thomas & Betts connectors, Copper conductors, Aluminum conductors, Joint compound
- Install the Correct Die
Open the tool handles until fully extended. If a die is present, pull it out from under the die retaining spring. Hold the new die with the desired crimping nest and color code in the lower right corner. Insert the die under the die retaining spring in the tool head. Ensure the die locator pin is held by pressure. Match the color on the connector to the color on the die. Keep fingers clear of die nests when handles are brought together.
- Prepare the Conductor
Strip insulation properly without cutting or nicking the conductor strands, referring to the connector's instruction sheet for strip length. For aluminum conductors, smear a thin layer of joint compound onto the conductor and brush it in with a wire brush or emery cloth. Caution: Improper stripping can lead to premature pull-test failures.
- Make a Compression
Insert the prepared conductor into the connector until it bottoms out. Locate the connector in the tool's die grooves so the die is between the color code marks for copper and on the color code marks for aluminum. If multiple compressions are required, start nearest the tongue of a terminal or center of a splice, then work progressively toward the barrel end. Close the tool handles completely for each compression until the SHURE STAKE® mechanism releases.
- Perform Visual Inspection
Inspect the tool for cracks, sharp edges, and other obvious imperfections that may affect performance. Ensure the die nest area is free of burrs, dents, or scratches. This check should be performed whenever damage is suspected or operating conditions warrant.
- Check and Adjust Handle Spread
Insert a die. Lay the tool on a flat surface, open Handle A, and allow it to close under its own weight; the ram should touch the die. Measure the distance between the handle grips. It should be between 11” and 14”. If adjustment is needed, loosen the lockscrew. Turn the adjusting screw clockwise to increase distance or counterclockwise to decrease it. Tighten the lockscrew and recheck the handle distance.
- Perform Gaging Procedure
Wipe dies clean before gaging. Squeeze the handles until the jaws are fully closed. Select a gage pin that can be inserted into the die nest with minimal hand pressure. Verify that the gage pin falls between the minimum and maximum limits specified in the Gaging Table (Section 3.4 of the manual) for the specific die color and category number.
