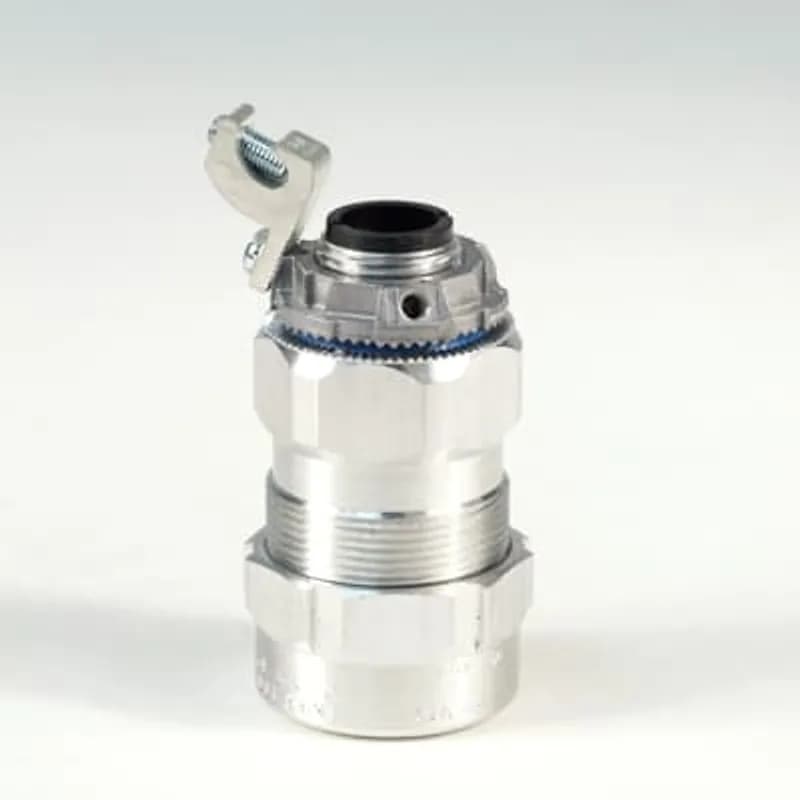

ABB Installation Products STE300GRL Star Teck Extreme aluminum jacketed cable fitting. Hub size of 3 inches. with Bond Star…
UPC: 786210687674
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Industry's first range-taking Teck fitting
- Simplifies cable-to-fitting matching
- Reduces inventory needs
- 3-inch hub size
- Accommodates jacket diameters from 2.670" to 3.270"
Specifications
Color | Silver |
Material | Aluminum |
Series | STAR TECK EXTREME |
Size | 3 Inches |
Standard | UL E38947, CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.6300 L |
Package Weight (Metric) | 1.1930 kg |
MAVI-M20/01
Special 45 Degree Elbow Adapter, Metric Thread - Thread Inside/Outside M20x1.5/M20x1.5, Nickel-Plated Aluminum
95138
Clamp-on service entrance cap for 4-inch EMT and rigid/IMC conduit. It is made of aluminum with a silver color and no additional finish. The enclosure is listed as Weatherhead.
STE350GRL
Star Teck Extreme aluminum jacketed cable fitting. Hub size of 3-1/2 inches. with Bond Star grounding locknut. Range over jacket from 3.220 - 3.870 inches.
STE400
Star Teck Extreme aluminum jacketed cable fitting. Hub size of 4 inches. Range over jacket from 3.665 - 4.340 inches.STE300S
Star Teck Extreme steel jacketed fitting. Hub size of 3 inches. Range over jacket from 2.670 - 3.270 inches.
STEX200
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 2 inch. Range over jacket from 1.440 - 1.965 inch.STEX125
Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 0.950 - 1.375 inch.Frequently Asked Questions
What is the jacket diameter range for the STE300GRL?
The ABB STE300GRL Star Teck Extreme fitting accommodates cable jacket diameters ranging from 2.670 to 3.270 inches.
What is the hub size of the STE300GRL fitting?
The ABB STE300GRL Star Teck Extreme fitting features a 3-inch hub size.
What type of grounding is included with this fitting?
The STE300GRL comes with a Bond Star grounding locknut for reliable electrical continuity.
What is a key benefit of the Star Teck Extreme fitting design?
The Star Teck Extreme fitting is range-taking, simplifying cable matching and reducing the need to inventory multiple fitting sizes.
What is the material of the jacket on this cable fitting?
The ABB STE300GRL Star Teck Extreme fitting has an aluminum jacket.
How to Install a Star Teck Extreme STE Cable Fitting
This guide provides step-by-step instructions for installing Star Teck Extreme STE series cable fittings, including cable preparation and proper sealing. Ensure all safety warnings are observed.
Estimated time: 20m
Tools needed:
Hacksaw, Torque wrench, Measuring tape, Wire strippers
Supplies needed:
Star Teck Extreme STE Cable Fitting, Armored Cable, Enclosure or Device
- Disconnect Power and Select Fitting
WARNING: Risk of shock, disconnect all power to the enclosure or device before beginning installation. CAUTION: This product must be installed by a qualified electrician in accordance with national and local electrical codes. Select the appropriate Star Teck Extreme STE fitting that matches the enclosure and the armored cable you are using.
- Prepare the Armored Cable
Determine the working length of conductors required inside the enclosure or device. Remove a portion of the cable's outer jacket to expose the armor. Using a hacksaw, cut the armor and trim the outer jacket to achieve the exposed armor strip length specified in the provided tables (Figure 1 and Figure 2) for your specific STE fitting model. CAUTION: Do not nick or cut the conductor insulation.
- Insert Cable into Fitting
Feed the prepared cable through the gland funnel entry of the fitting. Push the cable until its armor firmly contacts the armor stop (Figure 3). Ensure the cable armor is correctly positioned to guarantee proper grounding. If the inner conductor bundle does not pass through, unscrew and discard the armor stop (Figure 6), then repeat this step.
- Tighten and Seal the Gland Nut
Tighten the gland nut until an appropriate seal is achieved, or to the maximum torque specified in the table for your STE fitting model (Figure 4). Verify that the bushing and collar ring seal evenly around the cable’s outer jacket and are flush with the gland nut face (Figure 5). Ensure the cable remains centered within the fitting for an optimal seal.
